AC 85V 110V 220V 250V 2 Channel Motor Forwards and Reverse Remote Switch Motor Remote Control Switch
    Publish time 2021-11-03 15:45
AC 85V 110V 220V 250V 2 Channel Motor Forwards and Reverse Remote Switch Motor Remote Control Switch
AC 85V 110V 220V 250V 2 Channel Motor Forwards and Reverse Remote Switch Motor Remote Control Switch AG-C203A
Product Description

Features:

* 【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
* 【Wide Range Voltage】This is a wide voltage 100-450v 2-Channel wireless remote control switch. AC 100V--450V, Output with dry contact.
* 【Safe】Learn Code Control,Safe cecurity, the control code can add and remove.
* 【widely used 】in remote water pump switches, motor, Electric curtain machine, machine switches, sockets,lifting equipment,wireless lamps, window, entrance, Garage Doors，other home appliances control and so on.
Working mode matching method:
Method of pairing remote control in learning mode:
First complete the code clearing, press the learning button and the LED light is always on, release the learning button, press any button on the remote control, the  LED light flashes 4 times and then goes out, indicating that the code is successfully configured.

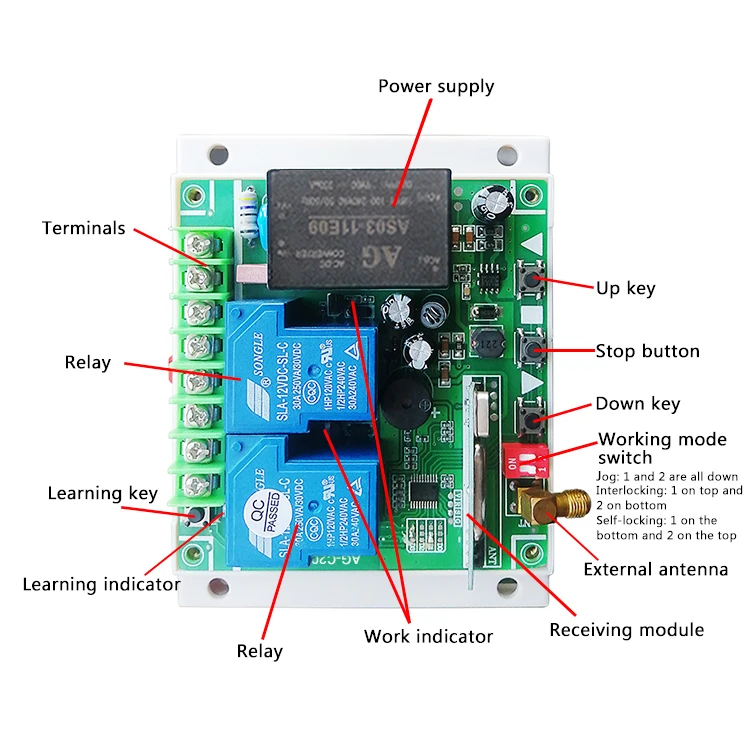

Working mode switch:
1.  Momentary mode: 1,2 are all down
2.  Interlocking mode: 1 on the top and 2 on the bottom
3.  Self-locking mode: 1 on the bottom and 2 on the top

Learning Remote method：

Power on, then clear the code. Press and hold the learning button on the control panel for 8 seconds. The LED light turns from steady on and then flashes 4 times and finally goes out, that is, all the remote controllers that learn to code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

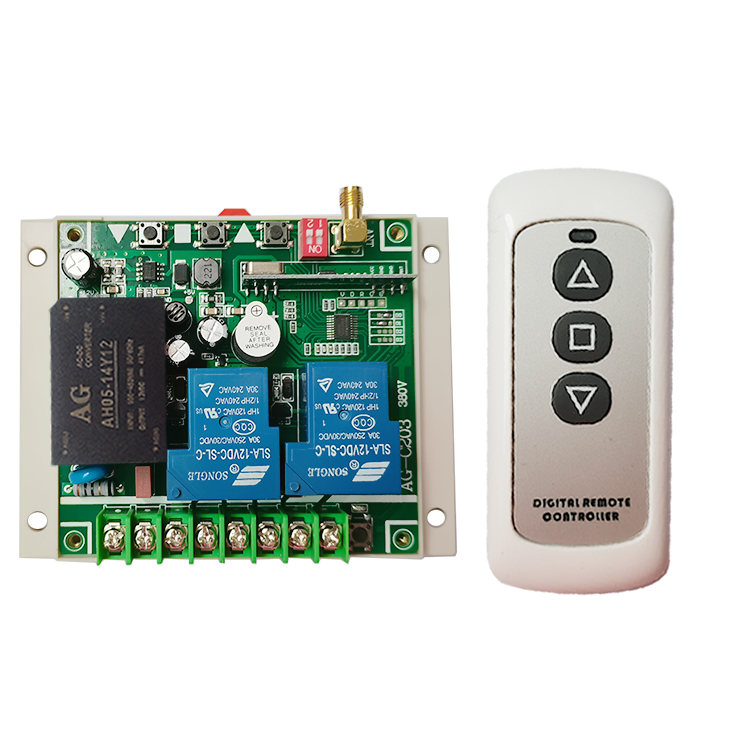

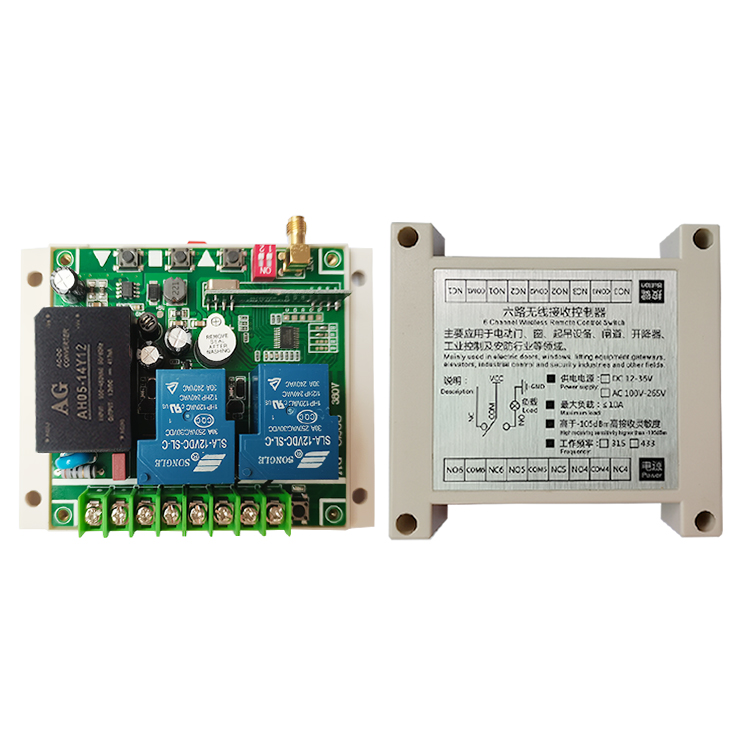

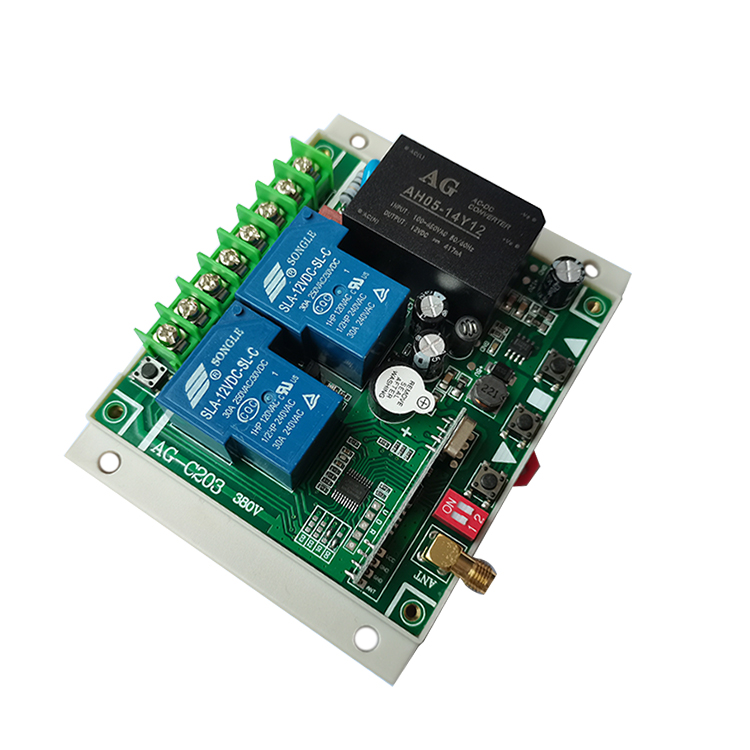

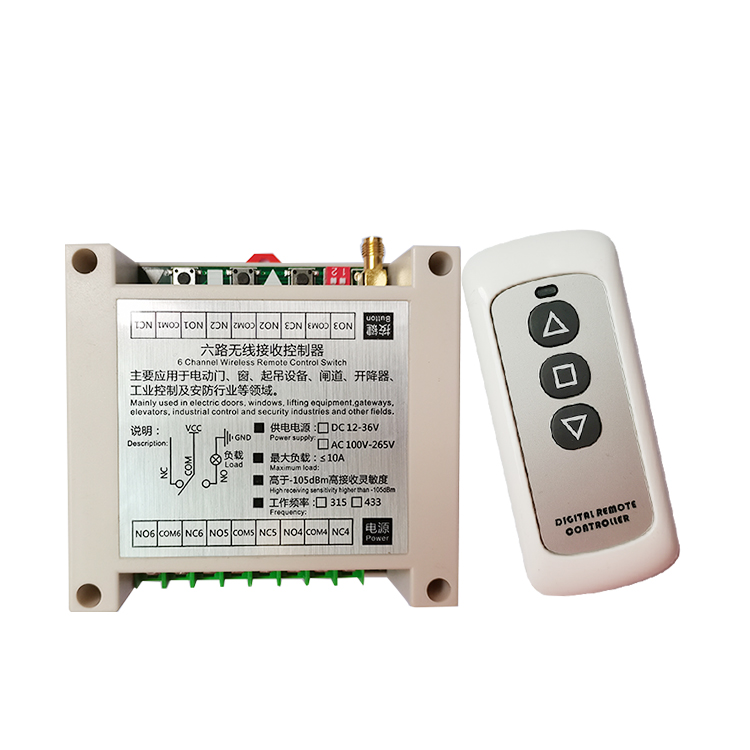

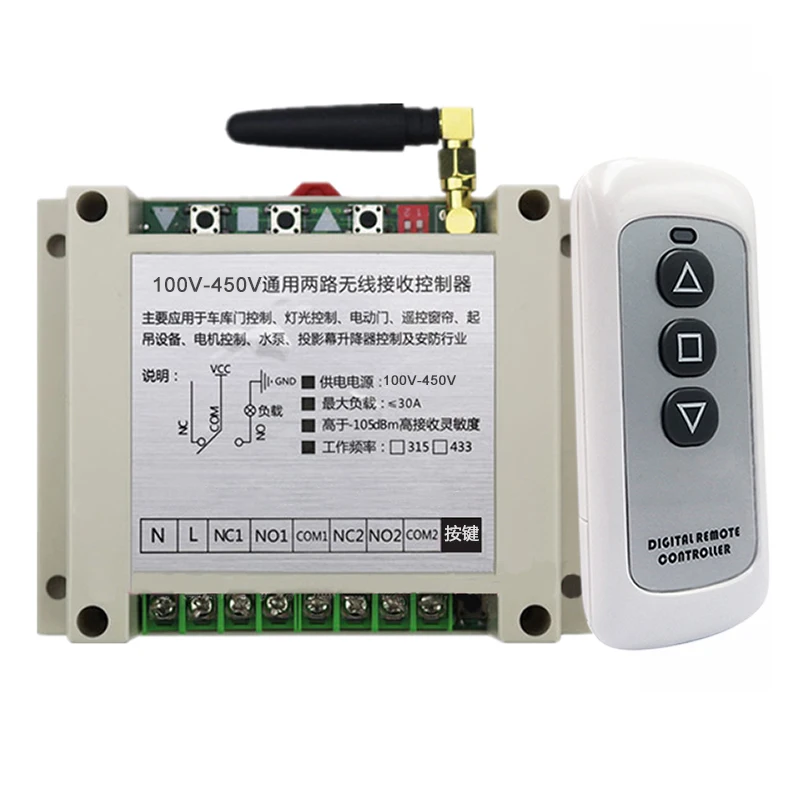

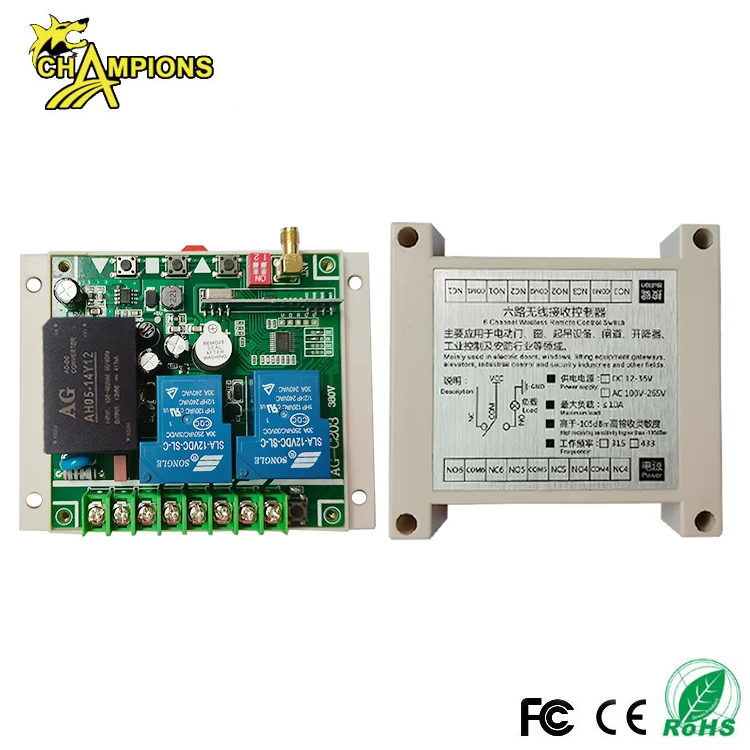

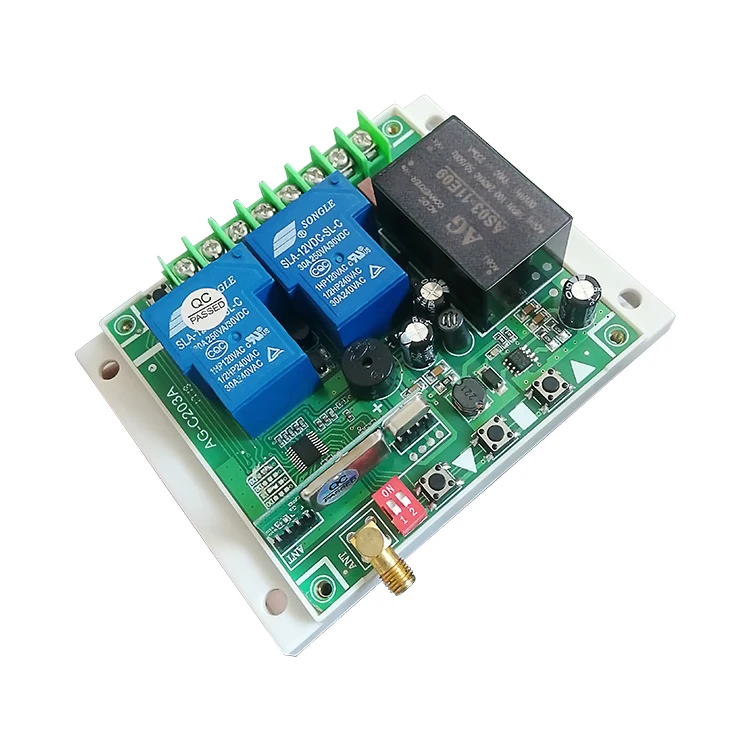

Photos
Specification:
Working Voltage
AC100V~ 450V
Output Current
≤30A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Momentary/Toggle/Latched
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Dry contact (output switch signal)
Working temperature
-40℃- +80℃
Dimension
115*90.2*40mm
Transmitting Distance:
50-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

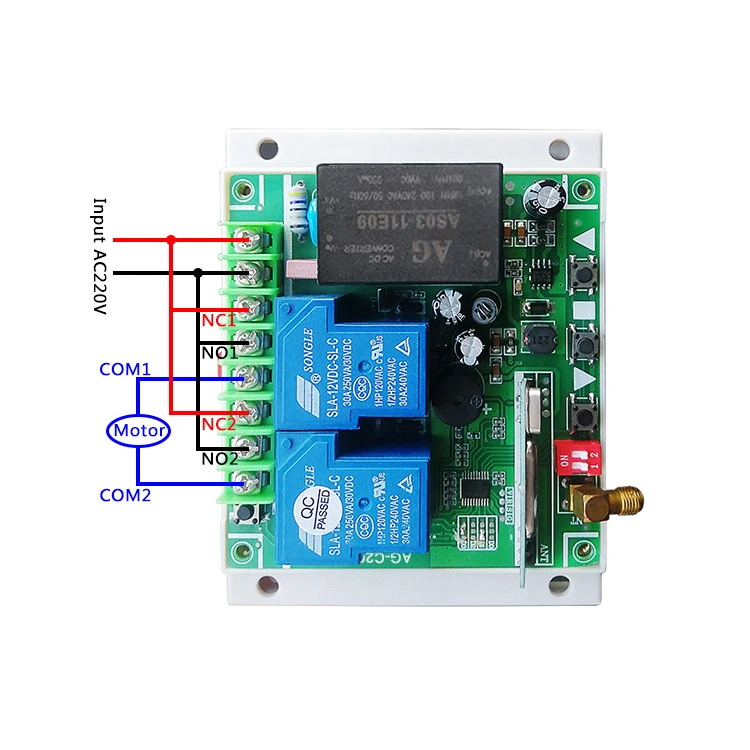

Wiring diagram:
