433Mhz Wireless Remote Control Switch AC 85V~265V 110V 220V 1 CH RF Relay Receiver Module
    Publish time 2021-11-04 09:23
433Mhz Wireless Remote Control Switch AC 85V~265V 110V 220V 1 CH RF Relay Receiver Module
Product Description

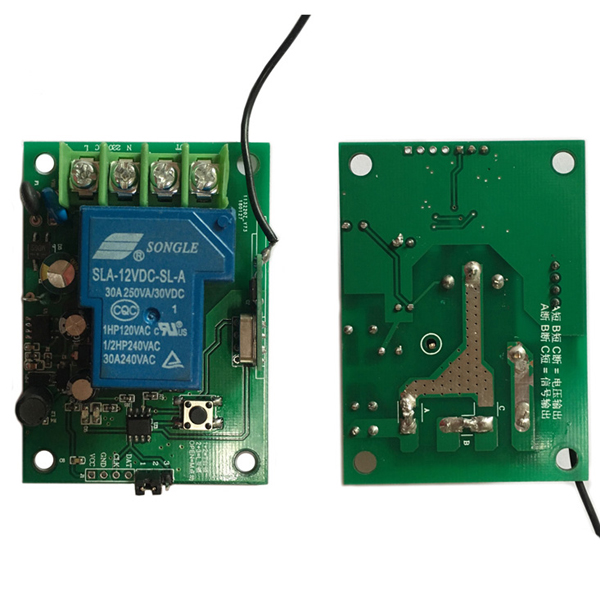

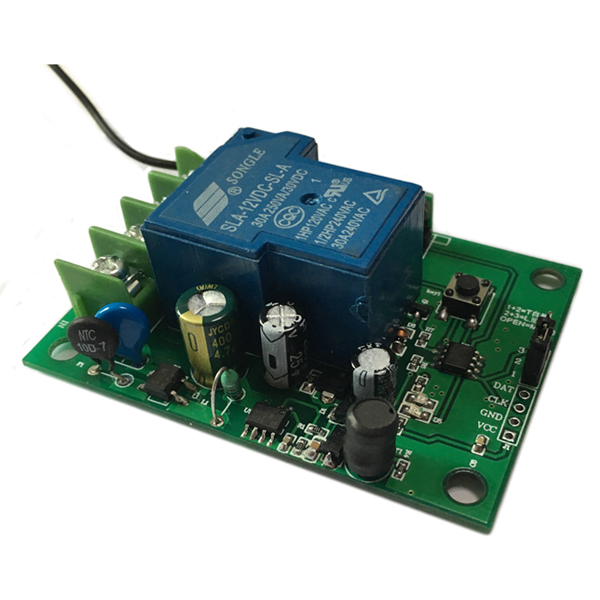

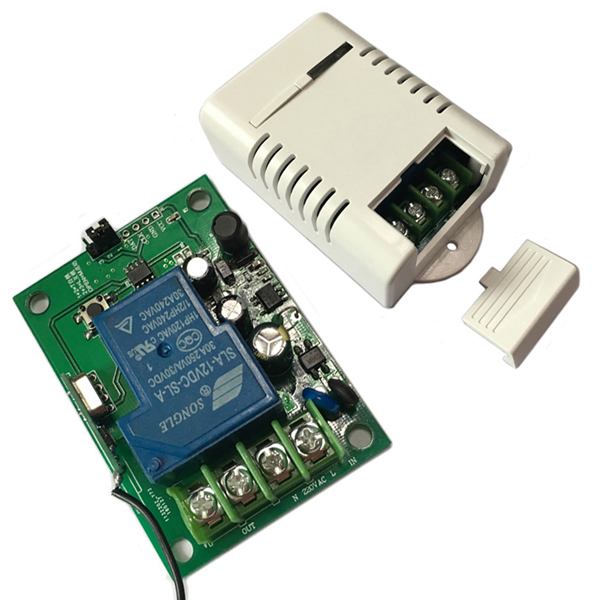

433Mhz Wireless Remote Control Switch AC 85V~265V 110V 220V 1 CH RF Relay Receiver Module and RF 433 Mhz Transmitter
Product Name
1 channel wireless remote control switch
Voltage
AC85-265V
Frequency
315mhz, 433mhz optional
Current
30A
Max load
3000W
Working way
self-lock, interlock, inching
Operating Temperature
-40℃ - +80℃


Features:

It has 1 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 10pcs different remote controls.



Clearing the code:
Push the learning button on the receivers for 8 times , the codes will be cleaned. After clearning the code, all the remote control cannot work any more.

Learning the code :(momentary)
Press the learning key on the receiver 1 times , it comes into momentary setting mode. Wait for a moment , the LED will be off , it comes into learning state . Push the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay then Push the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay Setting done.

Learning the code : ( Toggle )
Press the learning key on the receiver 2 times , it comes into momentary Toggle mode .Wait for a moment , the LED will be off , it comes into learning state .Press the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay then Press the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay.Setting done.

Learning the code : ( Interlock )
Press the learning key on the receiver 3 times , it comes into momentary Interlock mode .Wait for a moment , the LED will be off , it comes into learning state .Press the remote button "A" , LED indicator on the receiver board will flash then come off .Remote button "A" will control frist relay then Press the remote button "B" ,LED indicator on the receiver board will flash then come off. Remote button "B" will control The second relay.

Work to switch

Through the short circuit at short line 1, 2, 3, different local switch works.

A) inching-Short circuit at the vacancy.B) self-locking-Sub 1, 2.  C) interlocking-Short answer 2, 3
