315/433Mhz NEW High Quality DC 12 V RF 6 CH Wireless Switch Relay Receiver Remote Controllers
    Publish time 2021-11-04 14:45
315/433Mhz NEW High Quality DC 12 V RF 6 CH Wireless Switch Relay Receiver Remote Controllers
Product Description

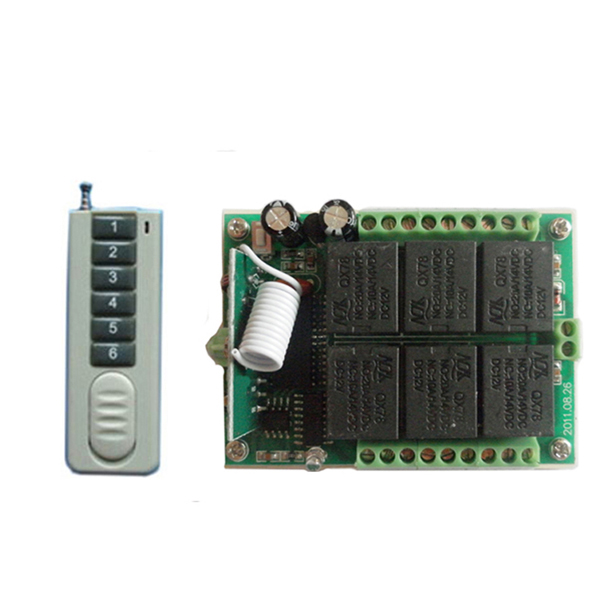

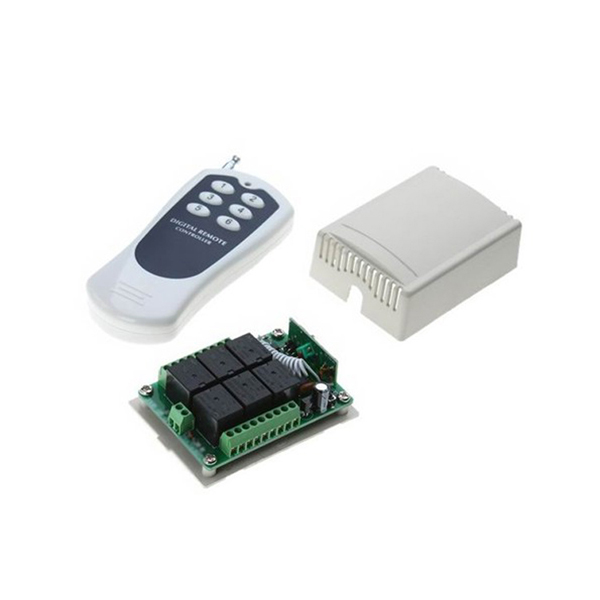

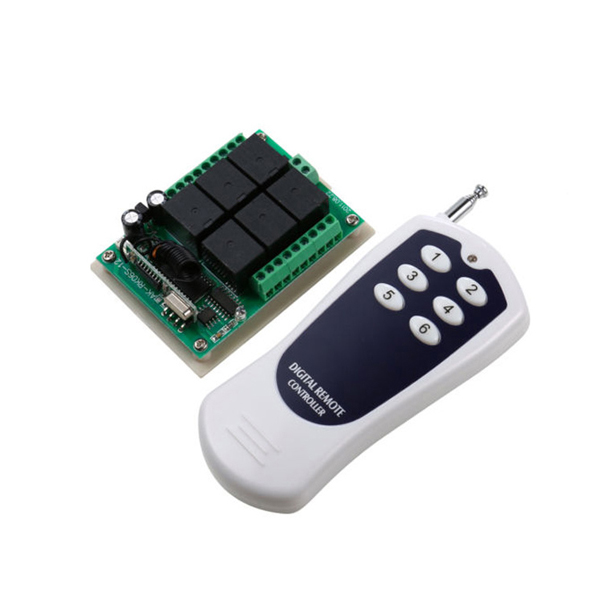

315/433Mhz NEW High Quality DC 12 V RF 6 CH Wireless Switch Relay Receiver Remote Controllers Transmitter+Receiver

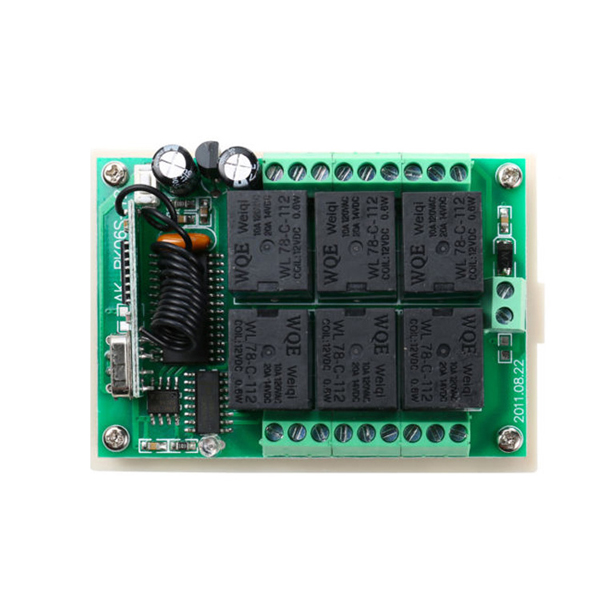

This item has 6 relays which can make the equipment turn or reverse, on/off and so on come true. Strong

signal which can pass through walls, floors and doors, control receiver from any place within a reliable

distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to

security

etc. It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more

than 10pcs different remote controls.

Application Scope
Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate

barrier ,access control system, industrial control, car remote control, car alarm system,remote contol switches , intelligent control, communication and security fields etc.

OutPut Way

1) Press the remote control No. 1 key to learn signal self-locking
2). Press the remote control No. 2 key to learn the signal interlock
3). Press 1-3 on the remote control to learn 1-3 way jog, 4-6 way self-locking
4). Press key 4 on the remote control to learn 1-3 jog, 4-6 interlock
5). Press key number 5 on the remote control to learn 1-2 track, 3-6 interlock
6). Press key 6 on the remote control to learn
Learning Remote Way
1. Press the learning button of the receiver - the light is on, indicating entering the learning state.
2. Press any button of the remote control - the light flashes to extinguishes, indicating that the
learning has been successful.

Clear Remote Way
Press the button for about 8 seconds as the receiver module learns to turn off the indicator light,
indicating that the stored information has been successfully cleared.

Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;
Carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder


Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

FAQ

Before Order please confirm
1). What frequency you need, 315mhz or 433.92mhz or others ?
2). You need is super-regenerative receiver module or Superheterodyne receiver module?
3). How long distance you need ?
4). You need with decode receiver or not with decode receiver ?
5). Do you need transmiteer work with it ?
6). Which output way do you want? Toogle( T ), Momentary( M ), Latching( L )

Output with 12 volts or output with switch signal?
The output with voltage means input with voltage 12V, output also with voltage 12V
The output with switch signal means that input with voltage 12V, output no voltage, is switch signal, just a

signal to send an order.
7). Which working way do you want? interlock, self-lock or inching?
