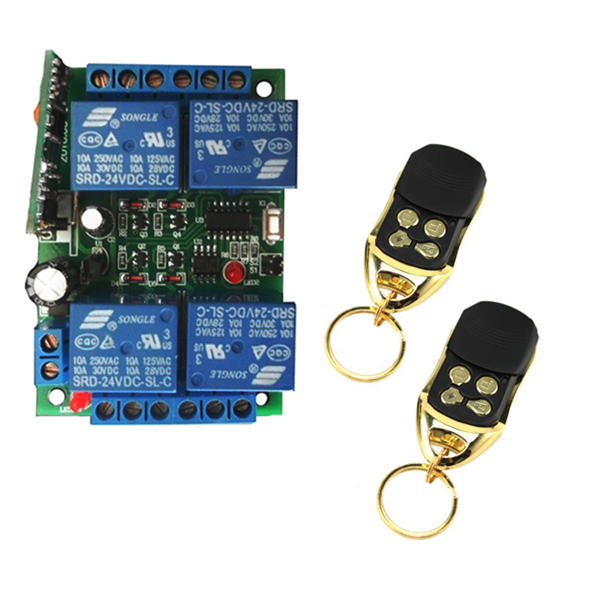

4 relay wireless controller, 433.92mhz receiver

Technical parameters

1). Working frequency :315MHz/ 433MHz/ others

2). Working voltage : DC12V

3). Working current : 8MA

4). Rated power : 7A

5). Receiving sensitivity : -95dBm

6). Dimensions: 49*69*20MM

7). Output way: inching, interlock, self-lock

8).Coding type : learning code

Learning way

Press learning button about 3 seconds,the indicator light flash, press remote control any button, indicator light off, it means learning succeed. It can learning 80 pieces different remote control.

Delete remote control way

Press learning button about 3 seconds, the indicator light from up to off, release the button, it means delete is succeed.

Output way

1).The short circuit connect S1 position, the output way is self-lock.

2).The short circuit connect S2 position, the output way is interlock.

3).The S1 and S2 position vacancy, the output way is inching.

Our service

1).Your inquiry related to our products or prices will be replied in 12 hours

2).Well-trained and experienced staffs to answer all your enquires in fluent English

3).OEM & ODM, any your customized products we can help you to design and put into production

4).Protection of your sales area, ideas of design and all your private information

5).Deliver by air mail or ship for your orders

Trade terms

1).Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery

2).Samples can be delivered in 3-5 days

3).Shipping freight are quoted under your requests

4).Discounts are offered based on order quantities

5).FOB price are quoted under inquiry
