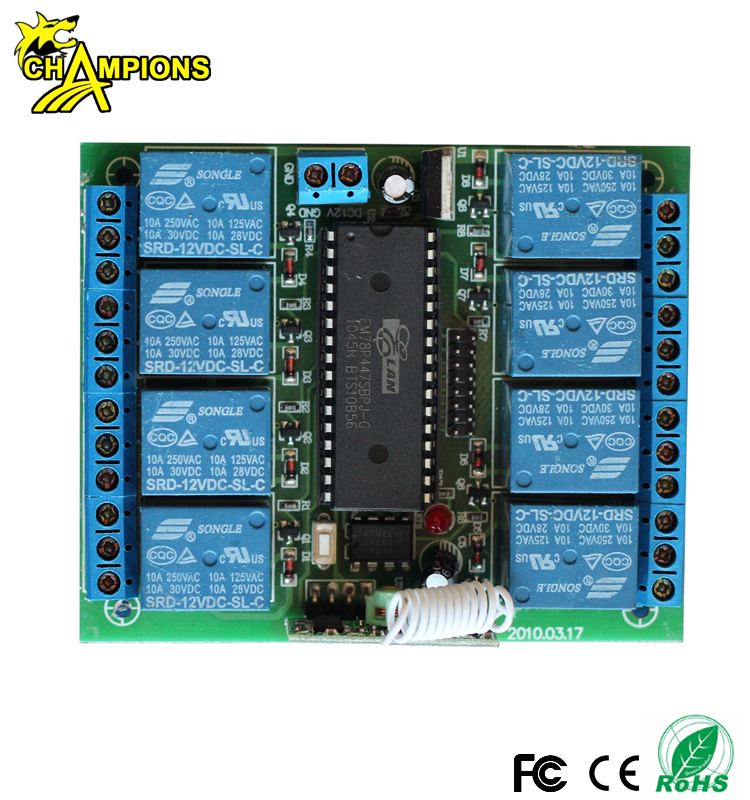

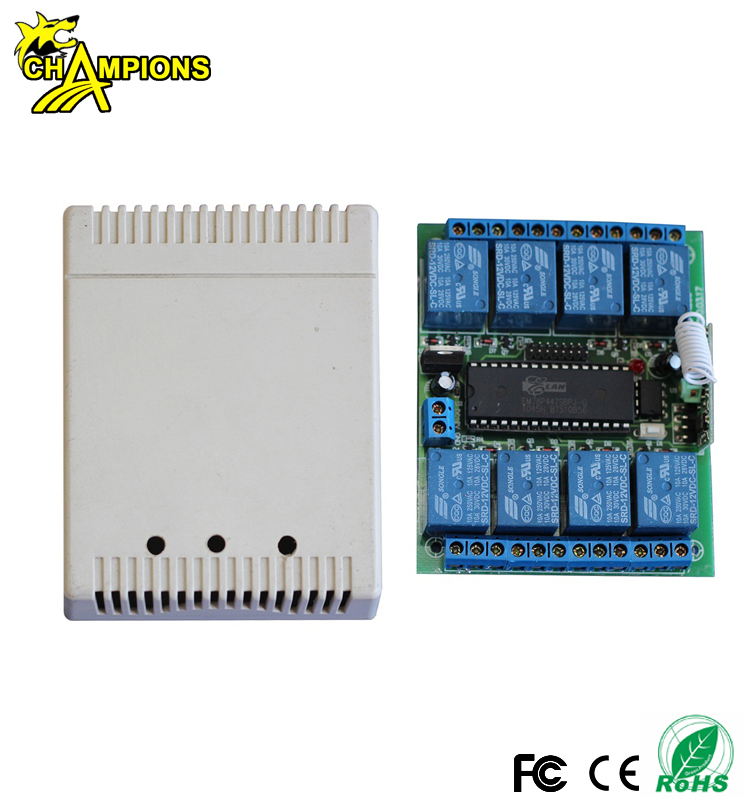

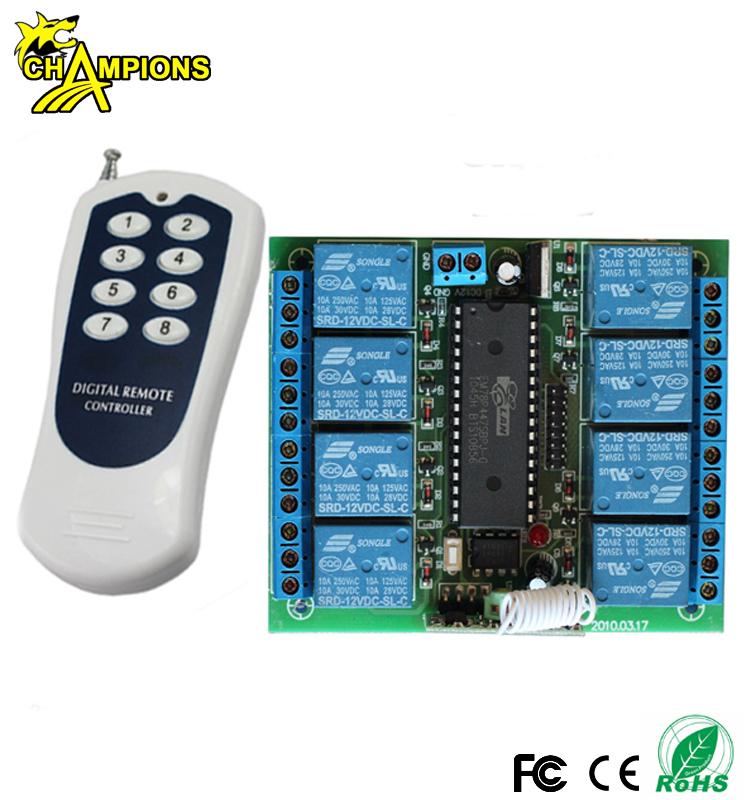

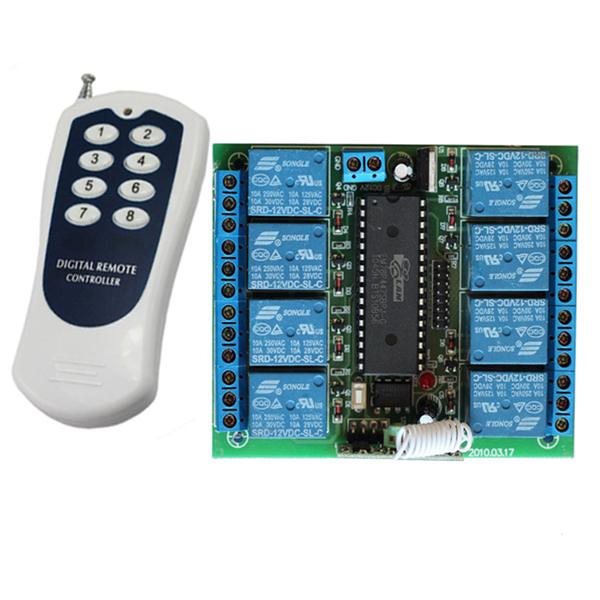

Learning code 433mhz DC12V 8 channels remote control switch for home alarm
Technical Parameter
1. Working Voltage: 12V/ 24V(DC)
2. Frequency: 315 MHz / 433MHz / other
3. Quiescent current: 5mA
4. Match code way: Fixed code
5. Receiving sensitivity:-105db
6. Max load: 3A
7. Output way: self-lock,interlock, inching
8. Output signal: output with switch signal
9. Board size: 70*50*26mm
10. Application : Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
|
Frequency |
315Mhz/ 433Mhz/ 868Mhz/ others |
|
Workingvoltage |
DC12V/ 24V |
| Output Form |
A. S1 short circuit --- output self-lock |
|
B. S2 short circuit --- output interlock |
|
|
C. S1,S2 vacancy --- output inching |
|
|
Output signal |
output signal with switch or power |
|
Package |
Plastic bag (according to your requirement) |
|
Encoded Mode |
Learning code |
|
Frequency Modulation |
AM / FM |
| Working current | ≤ 10mA |
|
Output Voltage |
DC optional |
|
Working Temperature |
-20°C - +60°C |
|
Application Scope
|
Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc. |
Shipping
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder
Packing
Each one in a plastic case,carton size: 37*24*17CM
1).Your inquiry related to our products or prices will be replied in 12 hours
2).Well-trained and experienced staffs to answer all your enquires in fluent English
3).OEM & ODM, any your customized products we can help you to design and put into production
4).Protection of your sales area, ideas of design and all your private information
5).Deliver by air mail or ship for your orders
Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.
Before Order please confirm
1). What frequency you need, 315mhz or 433.92mhz or others ?
2). You want it work with which code transmitter, learning code,fixed code or rolling code ?
3). Do you need this receiver with decode or decode by yourself ?
