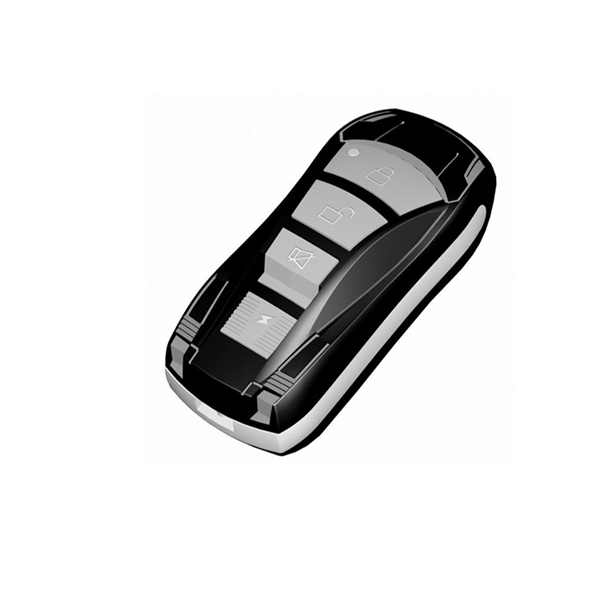

Product description

The duplicator remote control copy by face to face, it can copy all kinds of auto and electrically operated gate etc. Remote control, suit for copy all kinds of learning code and fixed code remote control,can copy chip as below:

PT2262,PT2260,EV1527,FP527,PT2240,PT2242,HT600,HT680,HT6270,HT6010,HT6012,HT6013,HT6014,AX5326-3,AX5326-4,SMC918,HT6P20B,HT6P20D,HT12D etc.

Easy operation, duplicator remote control can be reuse.

 Parameter:

 1.Operating voltage:DC12V

 2.Operating Current:<=12mA

 3.Operation frequency:303MHZ/310MHZ/315MHZ/433MHZ optional

 4.Transmission distance:50~100meters (open space)

 5.LED color:red, blue, green optional

 6.Dimension:53*32.6*12.5mm

 7.Buttons:4 buttons

Operating Instructions

1, Clear code: Pressing Arming key and disarming key at the same time , after 2s LED light flashing 3 times ,then don’t loose Arming key , but loose Disarming key and press Disarming key for 3 times ,then flashing fast , it shows clearing successfully .

2, Copy code:Left hand handling the original remote control, right hand handling the duplicating remote control, keeping the two close, at the same time pressing the Arming key of the two control, after 3s LED light flashing 3 times, then flashing fast, it shows that the original control of the Arming key code has been copied in to the duplicating remote control. The other three keys are the same operation.

3, Resume : If you clear code of duplicating remote control incautiously , you can press starting key and muting key , after 3s , LED light flashing 3 times , now flashing fast, it shows the code of duplicating remote control is resumed .

4.Recover: If you meet misoperation and cancle useful codes, before re-copy, you can press the below two keys at the same time for 2 seconds and release when the lights flash quickly, then the control will be recovered.
5. Notes:This copy of the remote control can not copy a computer code and rolling code , the device can only copy fixed code or learn codes.
