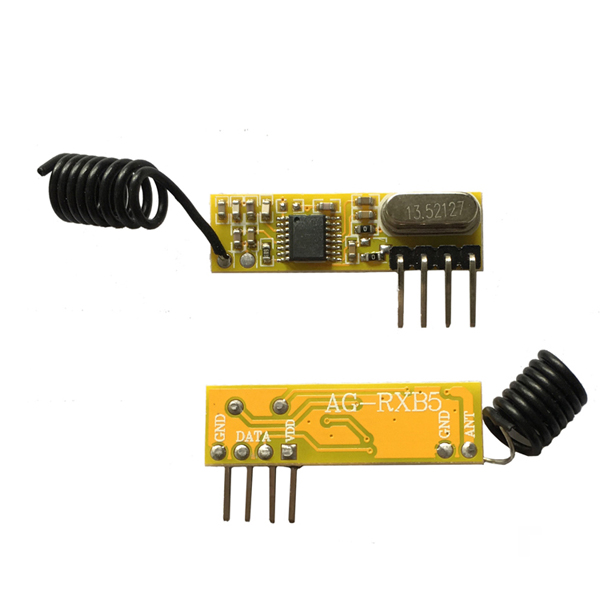

RXB5 wireless receiver module, 5V long distance range receiver module
Key Features
1). Low cost ASK/AM radio superhet receiver
2). High frequency stability (no adjust components) & coherence
3). Very low RF re-radiation at the antenna
4). Operation temperature -40 ~85 degrees centigrade
5). Supply voltage: 3.3~5.5v
6). Available frequency: 315/433.92MHz (other Frequency customer selectable)
7). Compatible with most AM (ASK/OOK) transmitters
8). Smal package: SIL-6PIN (2.54mm of pin distance)
9). Lead Temperature (soldering, 3s): 330 degrees centigrade
Applications
1). Garage door and gate openers
2). Electric windows,barrier etc.
3). Remote controls and smart home alarm
4). Low baud rate for data transmission
5). GSM/GPS car system

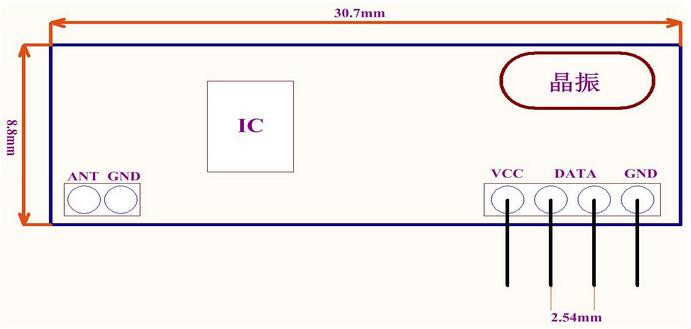

Pin Assignment
Pin Output Description
|
Pin
|
Name
|
Description
|
|
Pin1
|
ANT
|
RF input
|
|
Pin2
|
GND
|
RF GND
|
|
Pin3
|
VCC
|
VCC
|
|
Pin4
|
DATA
|
Digital data
|
|
Pin5
|
DATA
|
Digital data
|
|
Pin6
|
GND
|
RF GND
|
Packaging & Shipping
Skin packing, 2520pcs in a carton, carton size: 40*29*24cm
