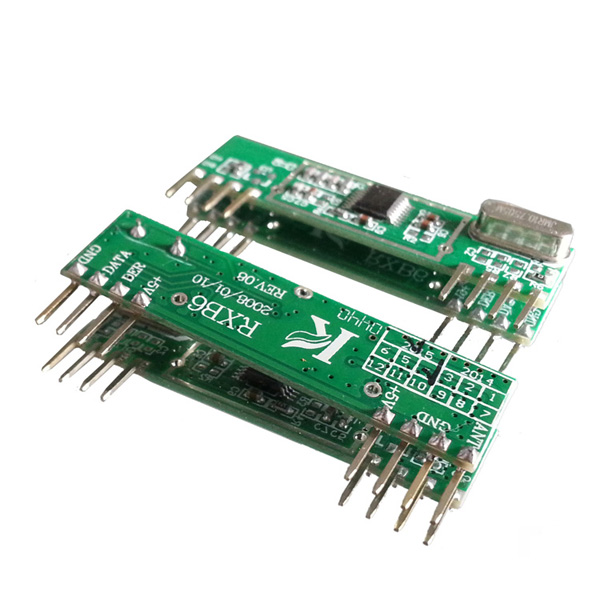

Long range receiver module with shielding case RXB6, syn500 chip receiver RXB6
Key Features
1). Frequency: 315M/433.92M/868.35M Hz(others are available)
2). High sensitivity -110dBm(433.92) 1kbps BER10E-2
3). Supply voltage: VCC= 3.3 to 5.5 V
4). IF band: 230KHz
5). Low power consumption: 3.9mA(315M), 6mA(433.92M),9mA(868.35M)
6). Wide operating temperature
7). Excellent selectivity and noise rejection
8). Easy for applicat
9). Analog RSSI Output(only for V2.0)
10). SIL(single in line) small package
Applications
1). Grage door and gate openers
2). Remot controls
3). Remote fan and light control
4). Smart home system
5). Alarm and security system
Pin Output Description
|
Pin
|
Name
|
Description
|
|
Pin 1
|
ANT
|
Antena In
|
|
Pin 2
|
GND
|
Ground
|
|
Pin 3
|
GND
|
Ground
|
|
Pin 4
|
VDD
|
Positive Supply Power
|
|
Pin 5
|
VDD
|
Positive Supply Power
|
|
Pin 6
|
DE
|
Option Output:
1). DATA output(default)
2). Battery Saveing Mode
|
|
Pin 7
|
DATA
|
Data Output
|
|
Pin 8
|
GND
|
Ground
|
FAQ
Before Order please confirm
1). What frequency you need, 315mhz or 433.92mhz or others ?
2). You need is super-regenerative receiver module or Superheterodyne receiver module?
3). How long distance you need ?
4). You need with decode receiver or not with decode receiver ?
5). Do you need transmiteer work with it ?
Trade terms
1).Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery
2).Samples can be delivered in 3-5 days
3).Shipping freight are quoted under your requests
4).Discounts are offered based on order quantities
5).FOB price are quoted under inquiry
