High sensitive long range Superheterodyne AM Receiver Module 433/315Mhz RF receiver module AG-RXB9

Specifications

AG-RXB9 is VHF/UHF high frequency wireless data transmission of high-quality superheterodyne receiver module. it used in Europe were the most

advanced ultra-high frequency, low noise RF integrated circuits, there are anti-static protection and high reliability. it very easy pass the FCC/CE

certification.

It is rolling code remote control,door control system, garage door as well as long distance transmission of choice.

it very stable and reliable,high sensitivity is widely used in a variety of interference,harsh environment applications.

Key Features

1). Sensitivity up to -114dBm,receiving distance is more than twice the normal receiver board

2). Reasonable receiver bandwidth, with strong co-channel rejection capability,strong anti-interference ability to adapt to various environments

3). Good distribution of radiation suppression,and easy through the FCC/CE

4). Good shielding,small influence of various installation environment performance of the module,and good consistency

5). Good local oscillator radiation suppression,can work with multiple modules (single income) and will not interfere with each other,does not

 affect the receiving distance

6). Using SAW LO,stable performance,wide temperature range

7). SCM direct interface,easy to implement (transfer rate up to 2.4Kbps)

8). Antenna module receivers a great effect,then the best 1/4 wavelength single copper wire

9). Antenna position also affected the reception of the module can be soldered directly to the antenna ANT interface can also be connected to

the system via the ANT pin and then to the antenna,install the antenna stretched as far as possible,away from the shield,high pressure,and

sources of interference

Applications

1). Garage door wireless control system

2). Electric windows,barrier etc.

3). Industrial control, communications security etc. Fields

4). Low baud rate for data transmission

5). GSM/GPS car system

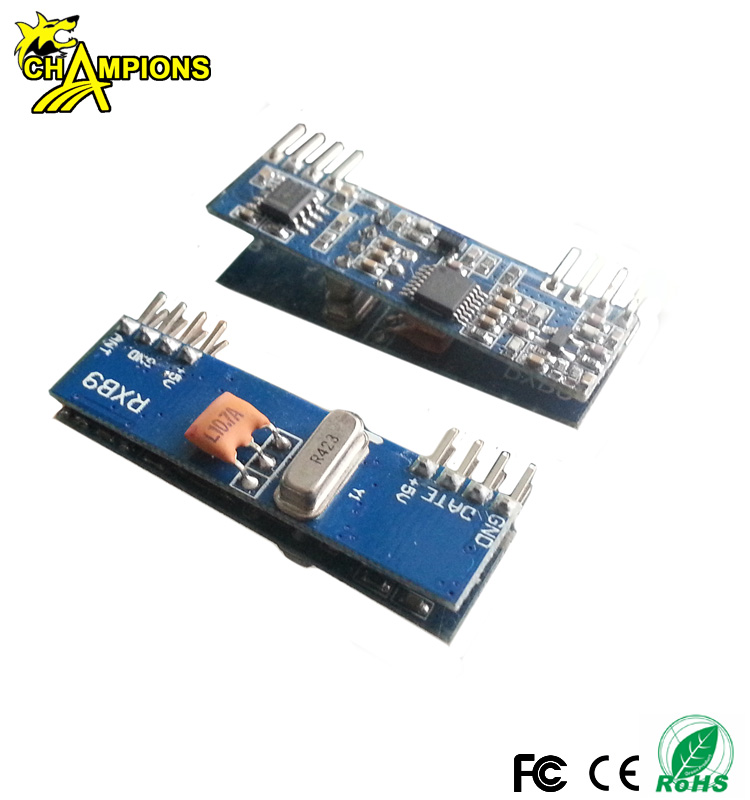

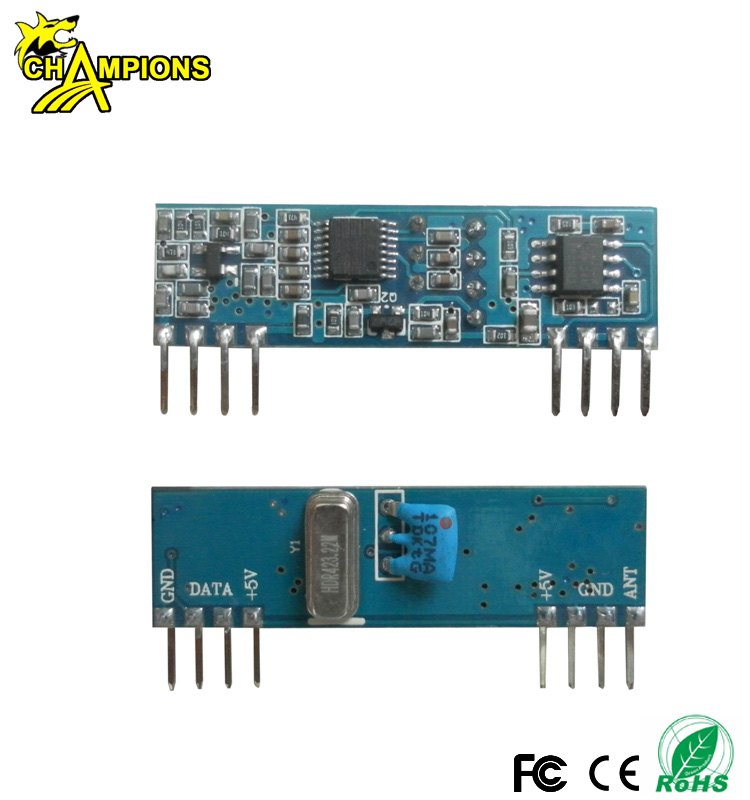

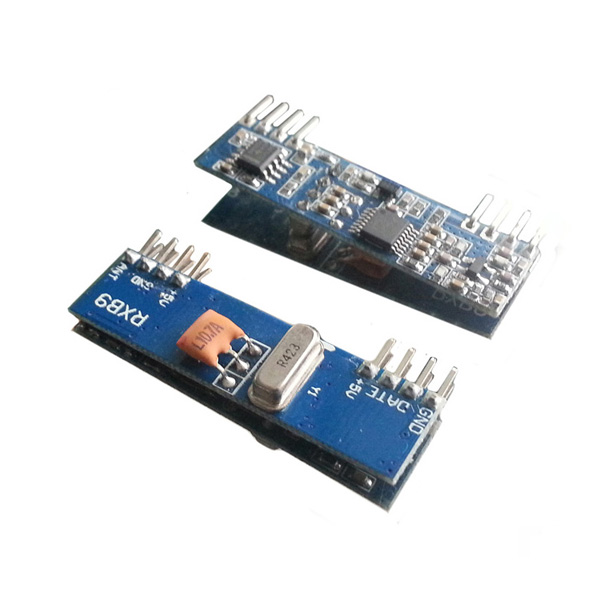

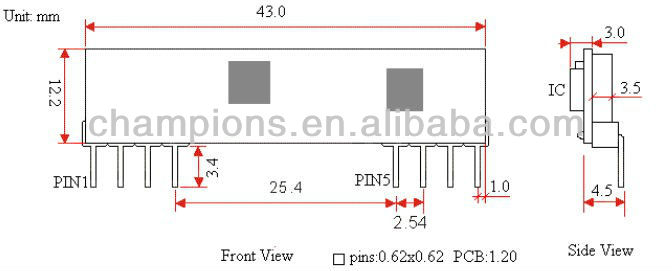

RXB9 picture

Electrical Characteristics

Condition: Ta=25°C Vcc=5.0V Frequency=433.92Mhz

Test Instrument

Oscilloscope, Function Generator, Power and test tool (tool with 5V power supply).

Test step

1). Use shielding wire connection Oscilloscope, Function Generator and Test tool.

2). Power on the device set oscilloscope and function generator parameters (frequency and sensitivity -105dBm).

3). Receiver board voltage signal in accordance with the above tolling pin inserted oscilloscope will appear above a standard sine

wave, so for qualified products. If the wave shape shaking and no wave is defective products.

4). All the above steps to complete at the shielded room (outside have interference of radio waves affect the test standard).

Before Order please confirm

1). What frequency you need, 315mhz or 433.92mhz or others ?

2). You want it work with which code transmitter, learning code,fixed code or rolling code ?

3). Do you need this receiver with decode or decode by yourself ?

4). How long distance you need ?

5). The output pin is you need ?

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable

2).Bulk order 30% deposits before production,70% balance to be paid before delivery

3) .Samples can be delivered in 3-5 work days

4) .Shipping freight are quoted under your requests

5) .Discounts are offered based on order quantities

6). FOB price are quoted under inquiry
