220V 4 Channel RF Switch Wireless Relay Module 433 MHz And Remote Control
    Publish time 2021-11-03 10:25
220V 4 Channel RF Switch Wireless Relay Module 433 MHz And Remote Control
220V 4 Channel RF Switch Wireless Relay Module 433 MHz And Remote Control For Garage Doors Automatic gates
Product Description
Specification:
Working Voltage
AC 220V
Quiescent Current
10mA
Working Frequency:
315MHZ, 433.92MHZ (other can be customized)
Receiving Sensitivity
-100db
Function option
Momentary/Toggle/Latched
Modulation Mode
ASK
Encoding type:
learning code,fixed code
Matching Mode
Intelligent Learning code
Output Mode
Dry contact (switch signal)
Working temperature
-40℃- +80℃

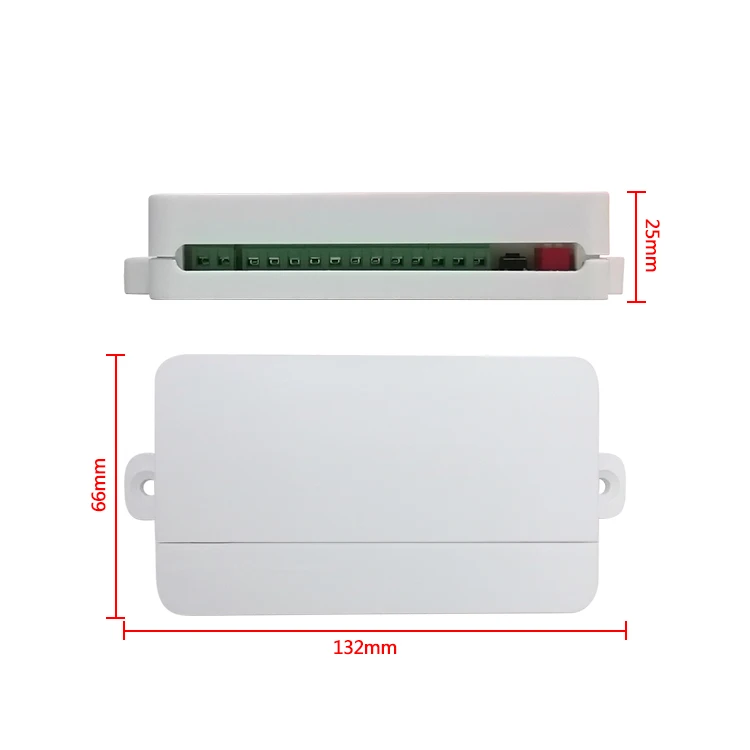

Dimension
132*66*25mm
Transmitting Distance:
50-150 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

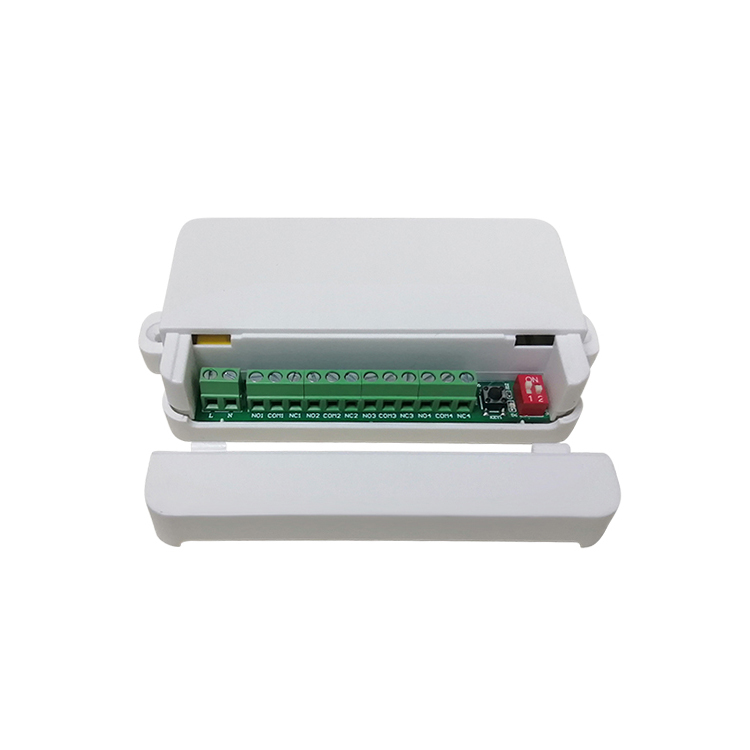

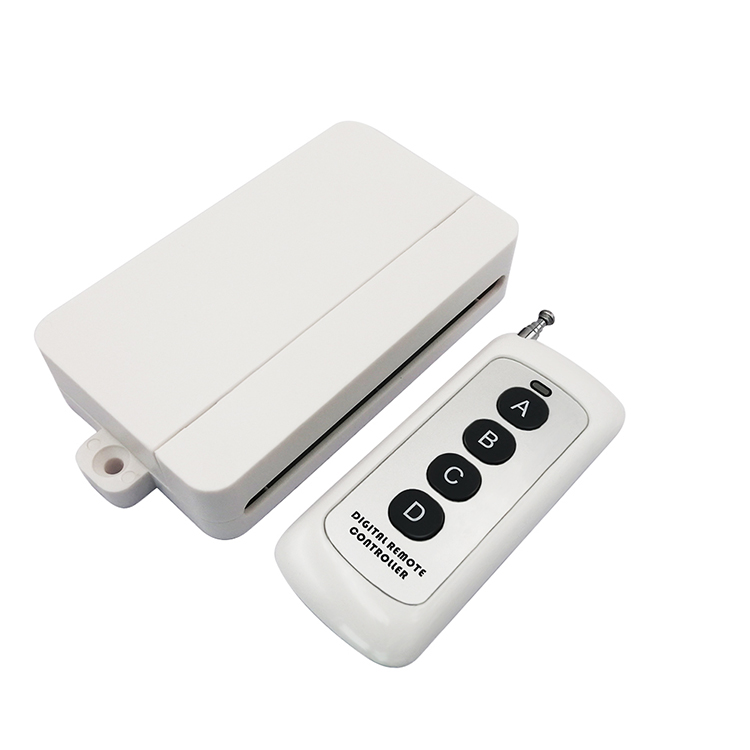

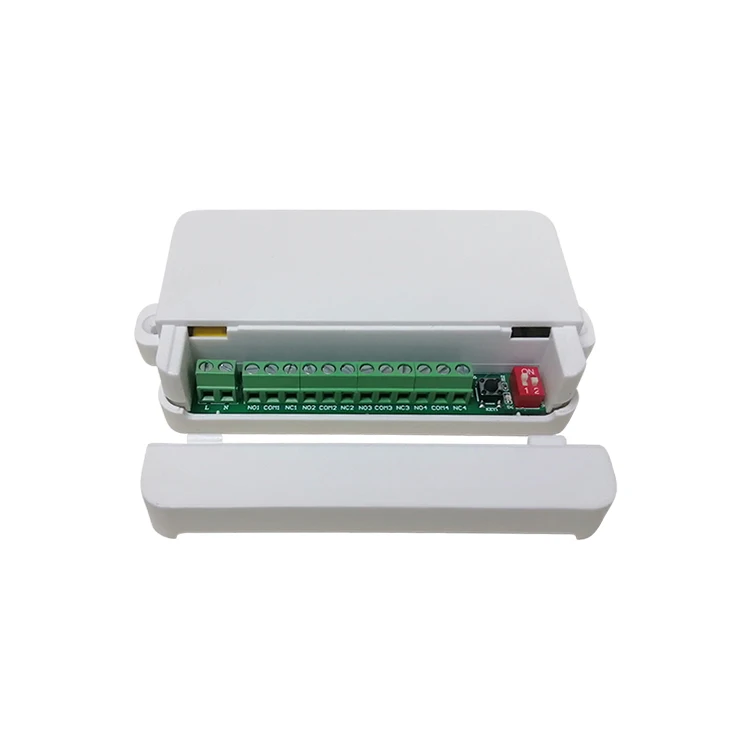

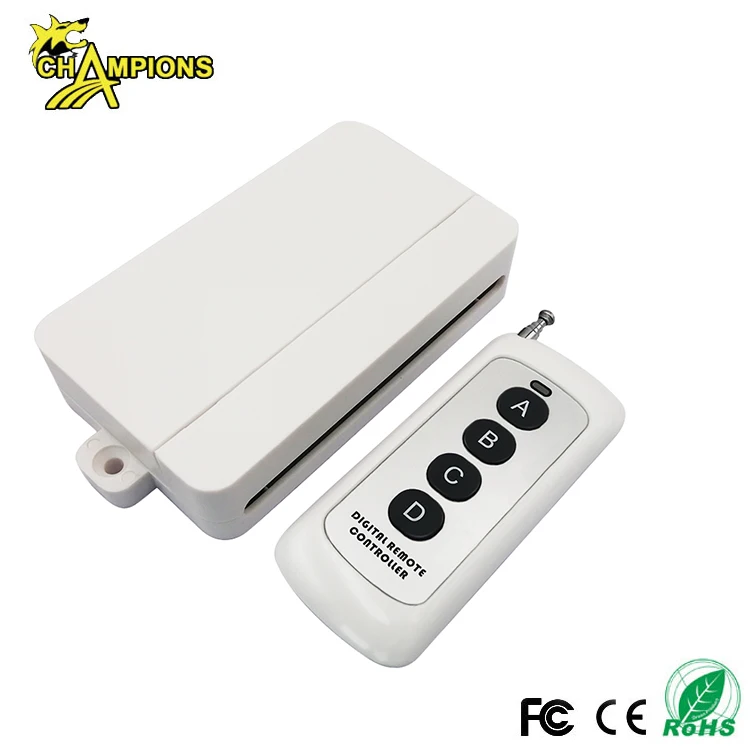

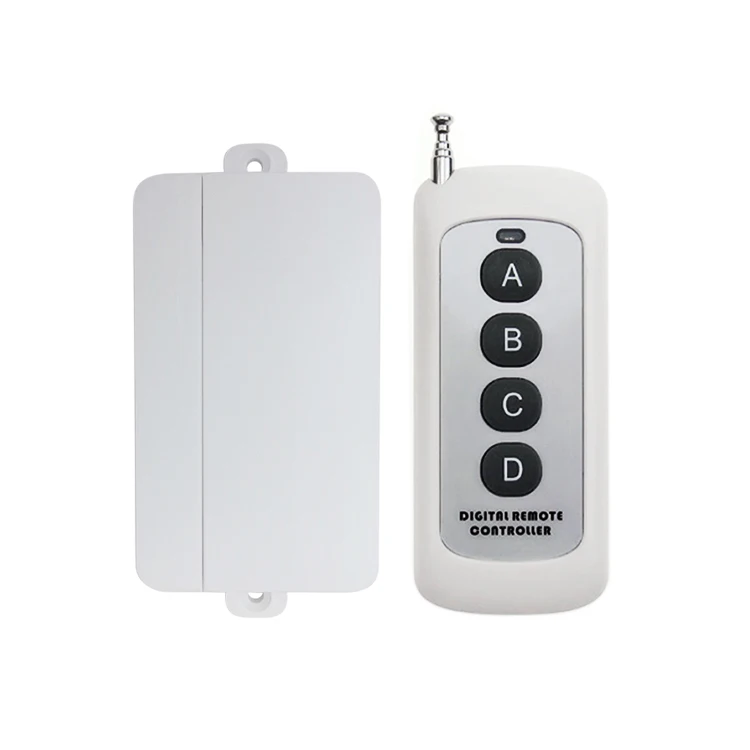

Photos

Features:

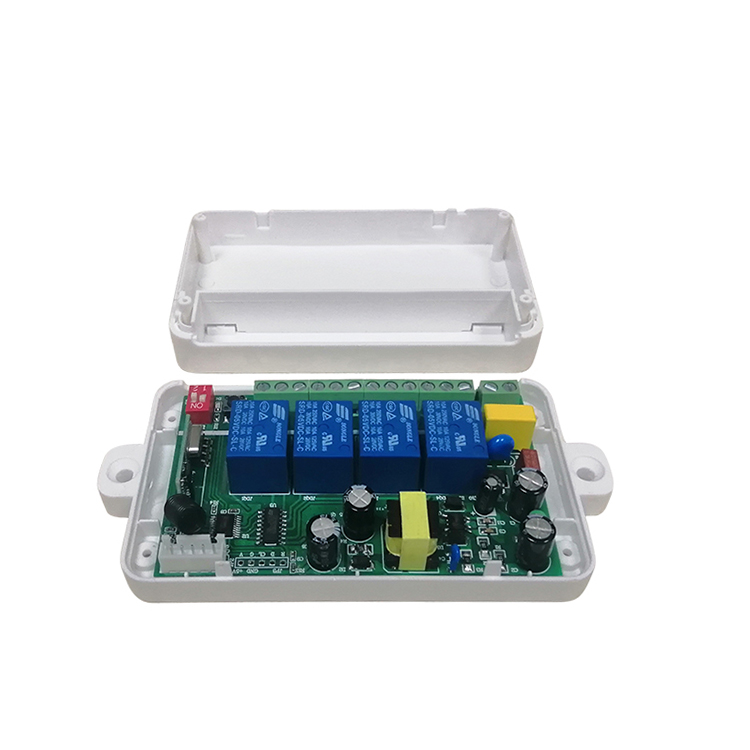

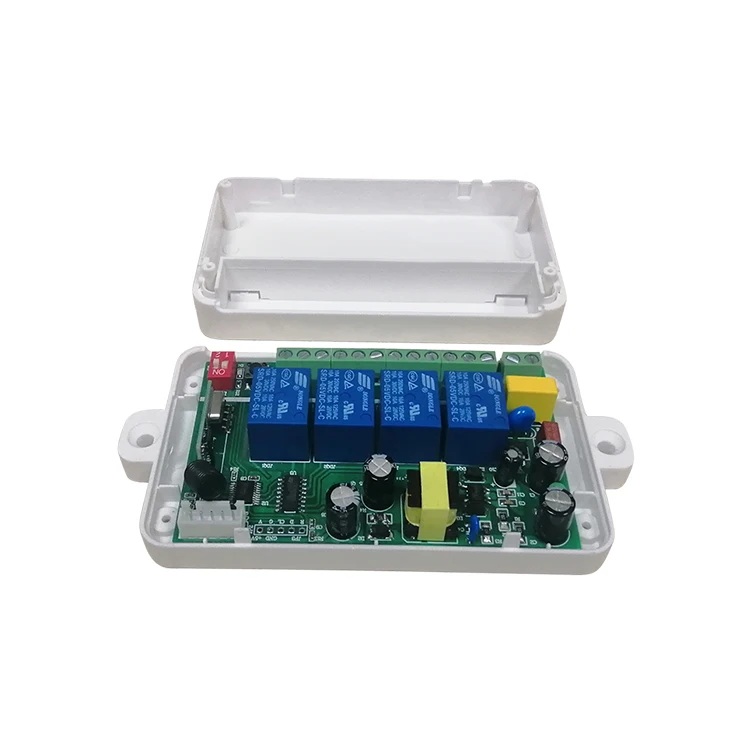

It has 4 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15pcs different remote controls.

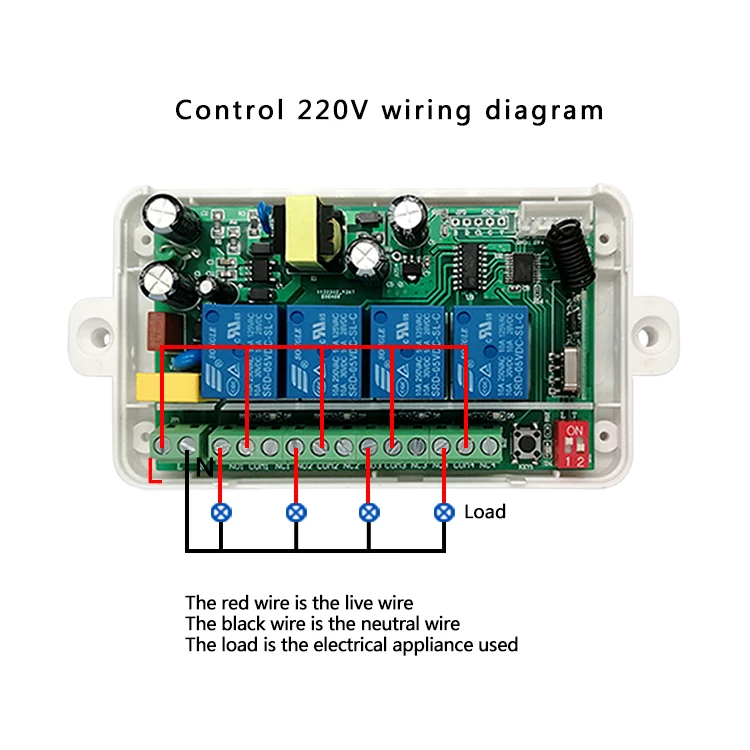

【Application】Suitable for electric control circuits of remote control electric doors and windows, signal control, industrial control, lifting equipment, etc. Ideal for direct control of various loads 【SIGNAL Stability】the RF remote control adopts RF technology, stable signal. Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 50--150 meters with no obstacle. 【Easy & Convenience】We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.

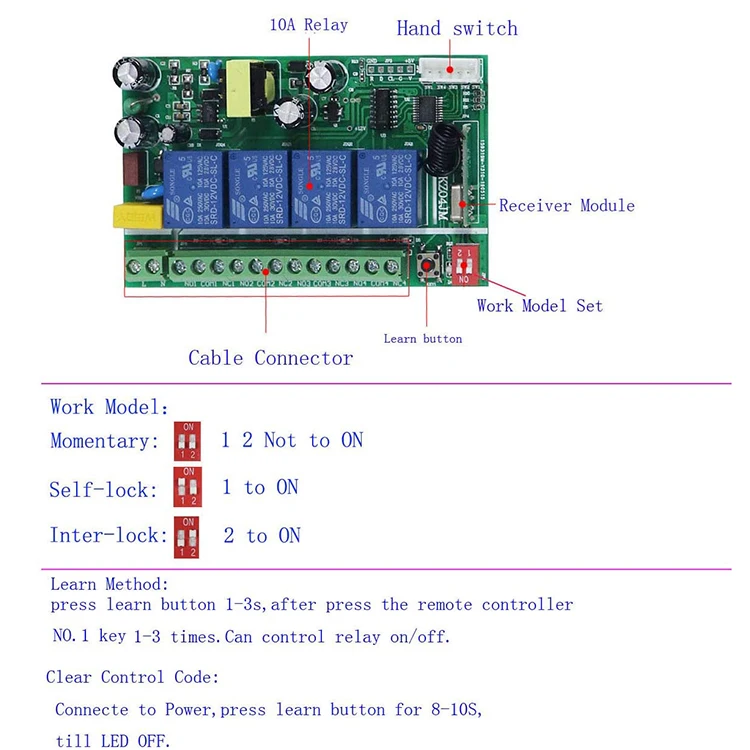

We send Toggle mode default ( that is, Press the button A , the receiver relay is ON; Press the button A again, the receiver relay is OFF ). You can switch to different modes as needed，Latched/Momentary / Toggle (If you encounter any problems in use, please feel free to contact us any time, we will be happy to serve you, thank you very much )

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
