433MHz Remote Control Switch DC 12V 10A 4CH Receiver Module Motor controller Transmitter
    Publish time 2021-11-03 10:47
433MHz Remote Control Switch DC 12V 10A 4CH Receiver Module Motor controller Transmitter
4CH 12V/24VDC RF Relay Wireless Remote Control Switch for LED Lamp, Lights, Motor, DIY Function
Product Description
Specification:
Working Voltage
12V/24VDC
Output Current
≤10A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Jog, self-locking, interlocking
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Dry contact/ Output voltage
Working temperature
-40℃- +80℃
Dimension
74*54*29mm
Transmitting Distance:
50-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

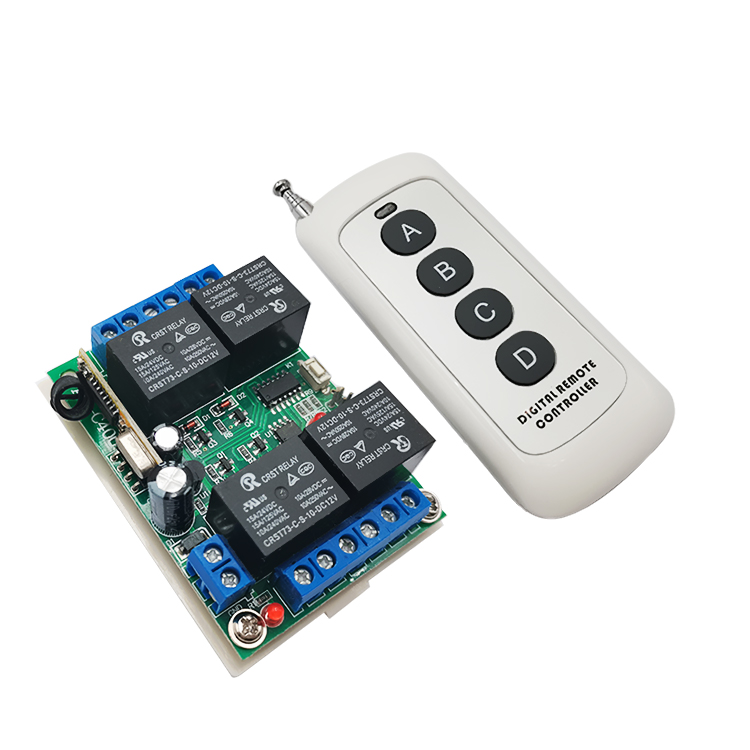

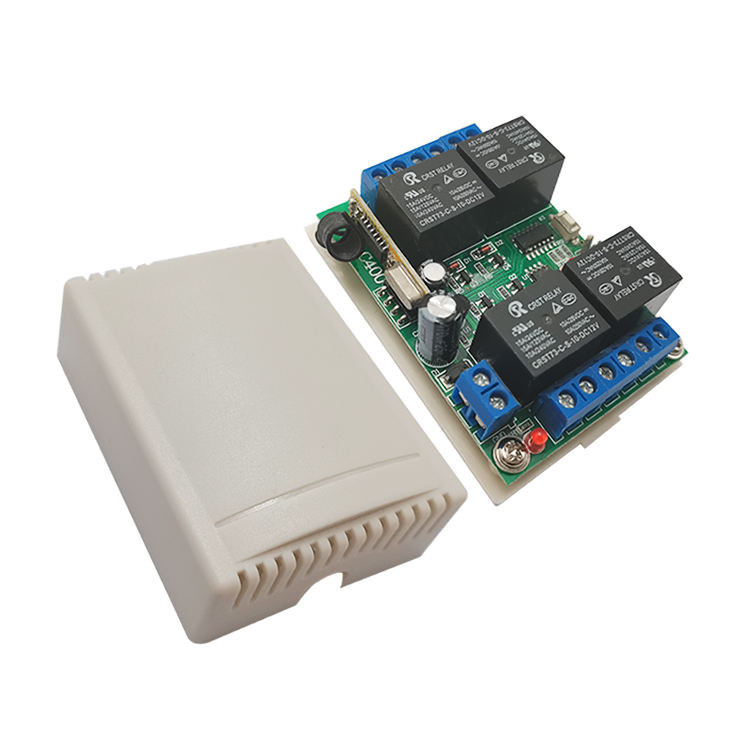

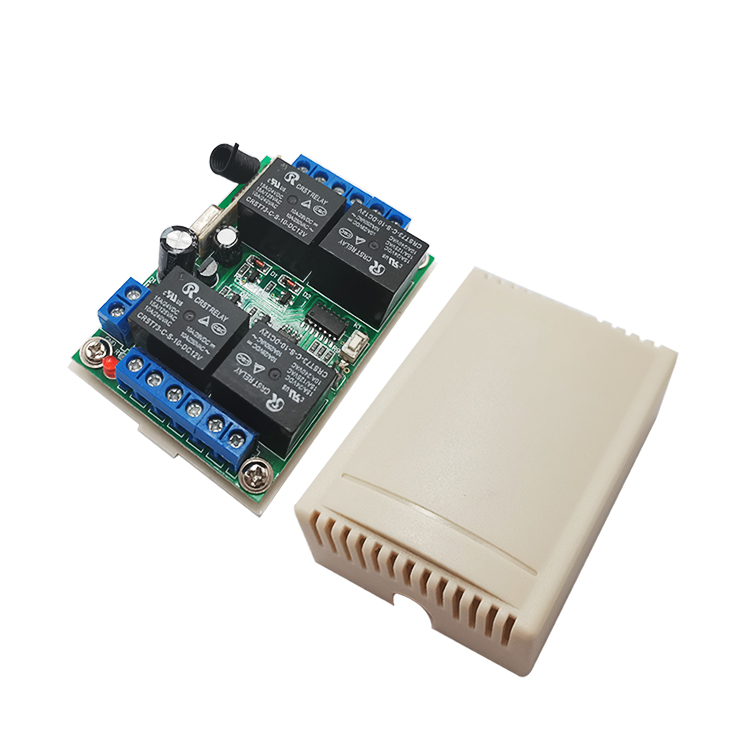

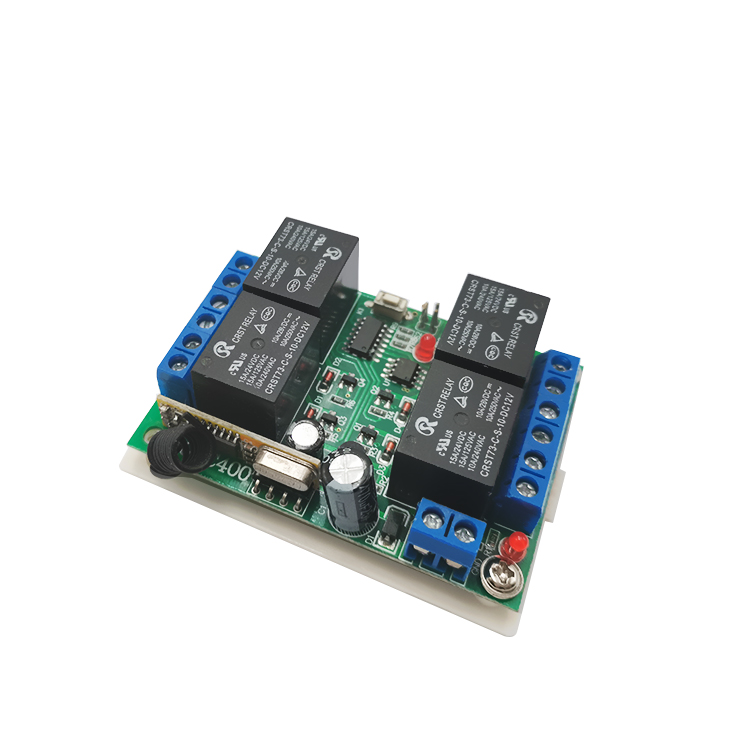

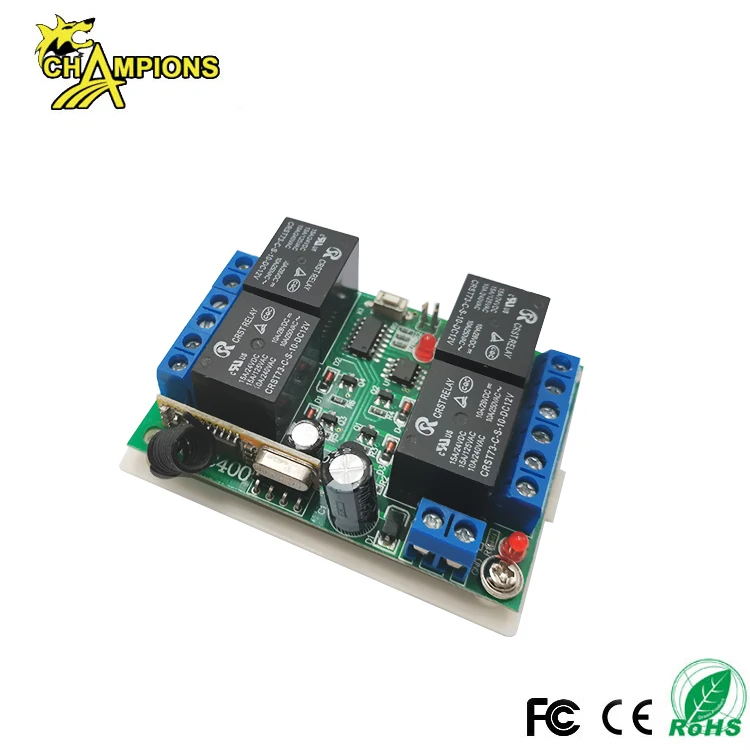

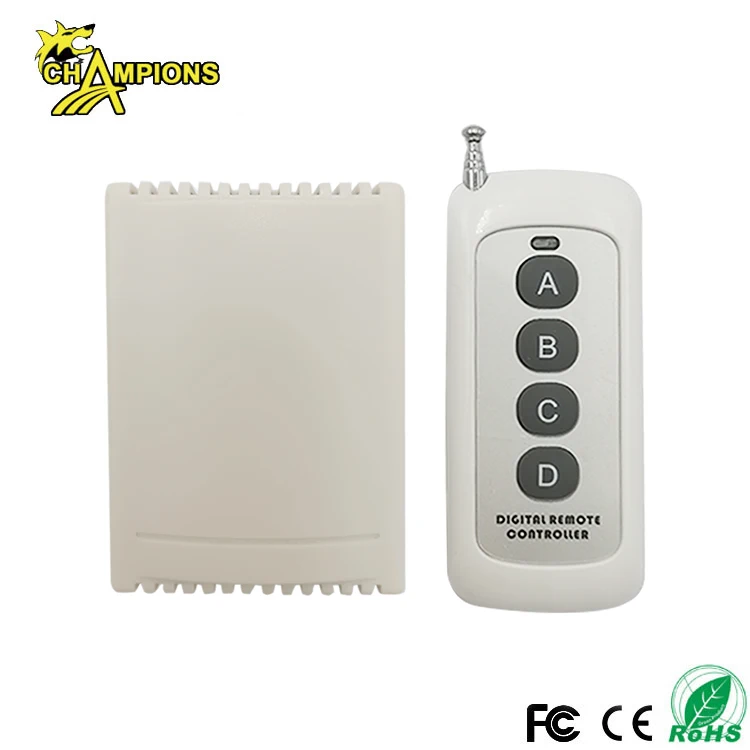

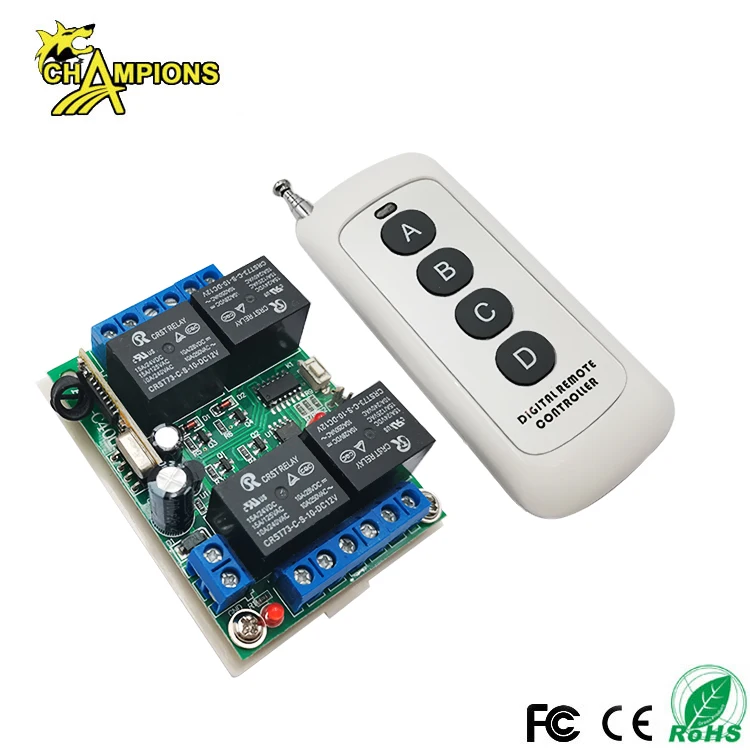

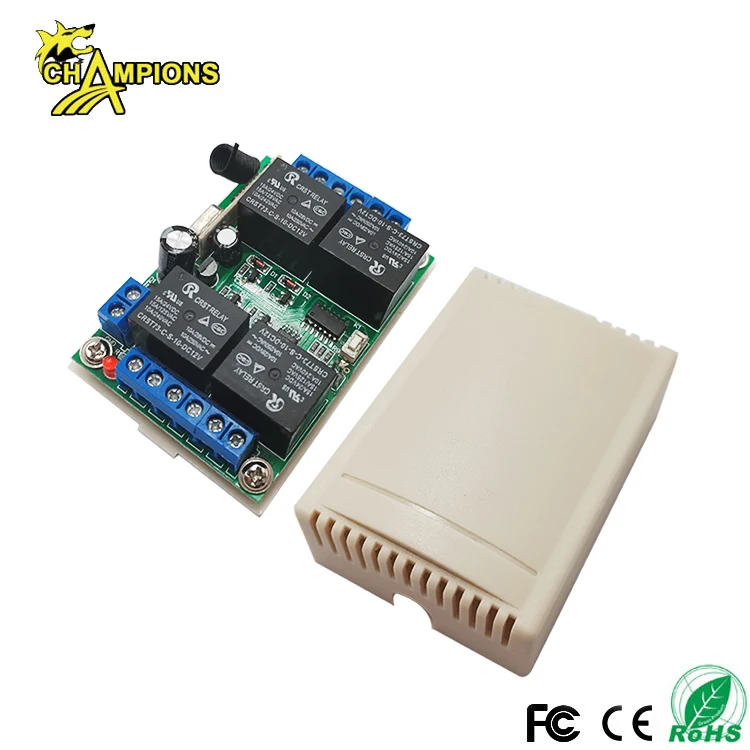

Photos

Features:

It has wireless 4 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15 pcs different remote controls.
Working mode:
Learning mode matching method:First complete the code clearing, press and hold the learning button on the control panel for 2S, wait until the learning LED indicator is always on, press the remote control button that needs to be coded, the control panel LED indicator flashes 4 times and then always goes off, indicating that the code is successfully configured.
   ★Note:
A. The power indicator light is always on after power on B. The four-way relay is independent output, as long as you learn any one of the buttons, the other three buttons can also be controlled
Clear Code:Power on, and then clear the code. Press and hold the learning button on the control panel for 12 seconds and wait for the LED to turn off from steady on, that is, all the remote controllers that learn to match codes are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
