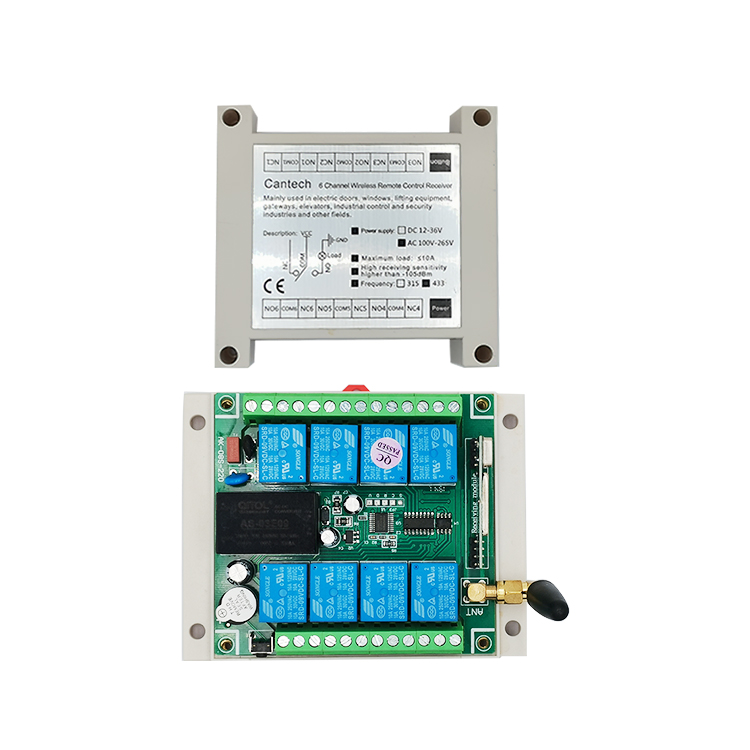

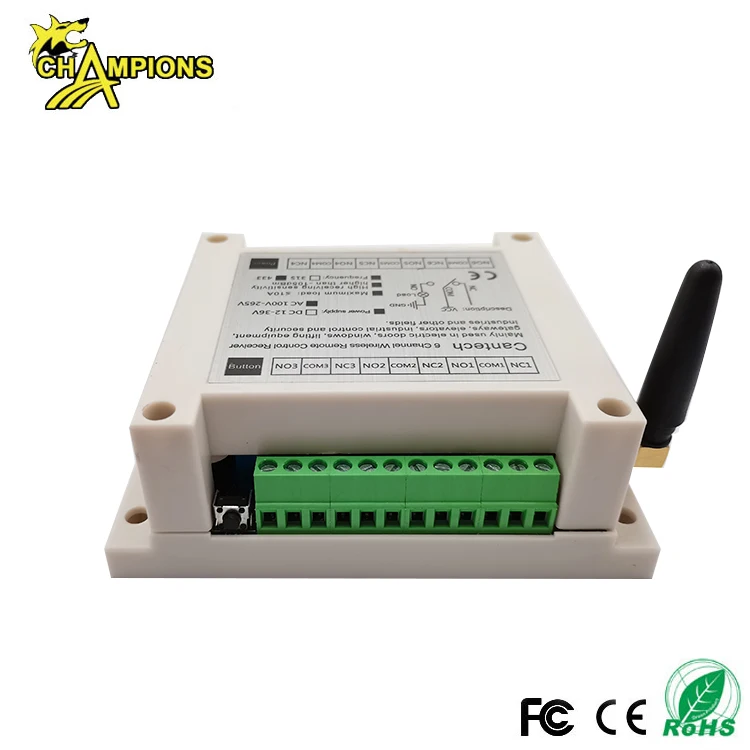

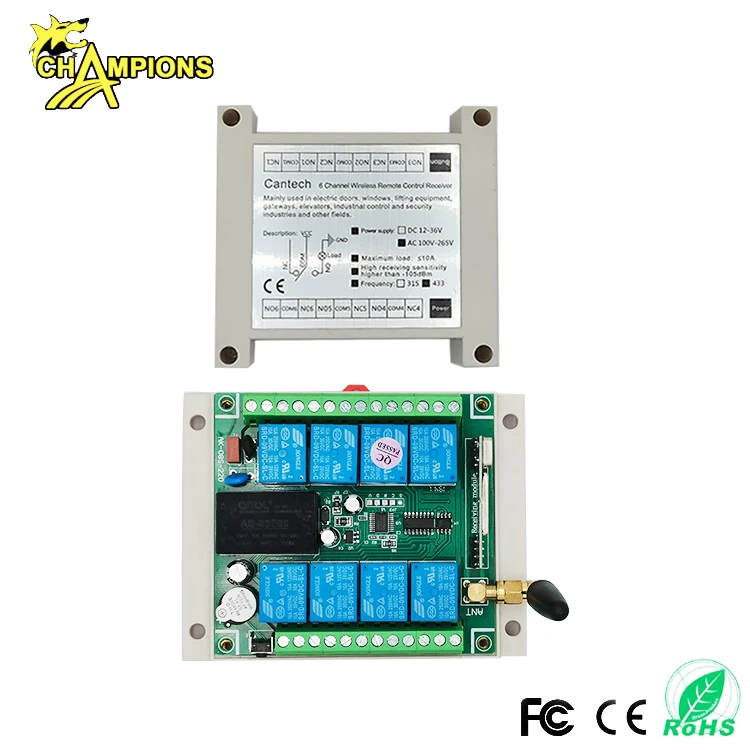

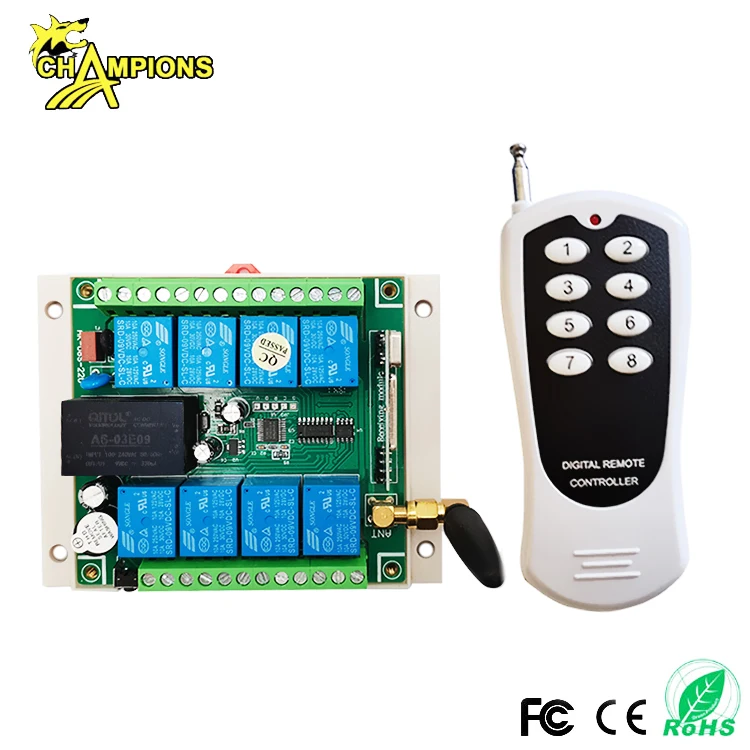

AC 85V 110V 220V RF Wireless Remote Control Switch Universal 8-Channel 433MHz Remote Relay Switch
    Publish time 2021-11-03 11:38
AC 85V 110V 220V RF Wireless Remote Control Switch Universal 8-Channel 433MHz Remote Relay Switch
Product Description
Features:
* 【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
* 【Wide Range Voltage】This is a wide voltage 100-240V 8-Channel wireless remote control switch. AC 100V--240V, Output with dry contact.
* 【Safe】Learn Code Control,Safe security, the control code can add and remove.
* 【Widely used 】in remote water pump switches, motor, Electric curtain machine, machine switches, sockets,lifting
equipment,wireless lamps, window, entrance, Garage Doors，other home appliances control and so on.
It can control 4 motors.

Learning mode matching method:First complete the code clearing. Press the learning button and the buzzer will beep three times and then beep a long time. Press one of the buttons on the remote control. The buzzer will beep twice and then stop beeping, indicating that the code is successfully configured.
★Note: Press the remote control No. 1 button to learn-signal jog .
Press the remote control No. 2 button to learn-signal interlock. Press the remote control key 3 to learn-signal self-locking. Press the 4th button on the remote control to learn-1-4 jog, 5-8 self-locking. Press the 5th key of the remote control to learn-1-4 jog, 5-8 interlock. Press the No. 6 key of the remote control to learn-1-4 interlocking, 5-8 self-locking. Press the No. 7 button on the remote control to learn-1-4 interlocking, 5-8 jog. Press the 8th key of the remote control to learn-1-4 self-locking, 5-8 jog.
Clear code:Power on, and then clear the code. Press and hold the learning button on the control panel for 8 seconds until the buzzer stops, that is, all the remote controllers that learn the code matching will be automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.
Specification
item
Wireless 8CH receiver
Certification
ce
Whether the smart
YES
Place of Origin
Guangdong,China
Brand
Champions
Model
AG-C801A
Working temperature
-40℃ ~ +80℃
Output current
≤10A
Working voltage
AC100V~ 240V
Color
White
Style
Wireless
Certificate
CE ROHS
Material
ABS
Product Name
8 channels wireless controller
Size
115*90*40mm
weight
214g
Working frequency
433mhz, 315mhz
Application
automatic gate/garage door/home application
Packing & Delivery
1). Each one in a plastic bag or white box 2). 100 pieces in a carton, one carton weight is 15KG, carton size is 40*29*24CM 3). Packing can be customized
