433MHz DC12V/24V 1CH 10A Relay Wireless Receiver +Delay Time Timer Remote Control AG-C105D
    Publish time 2021-11-03 15:31
433MHz DC12V/24V 1CH 10A Relay Wireless Receiver +Delay Time Timer Remote Control AG-C105D
Product Description

433MHz DC12V/24V 1CH 10A Relay Wireless Receiver +Delay Time Timer Remote Control AG-C105D

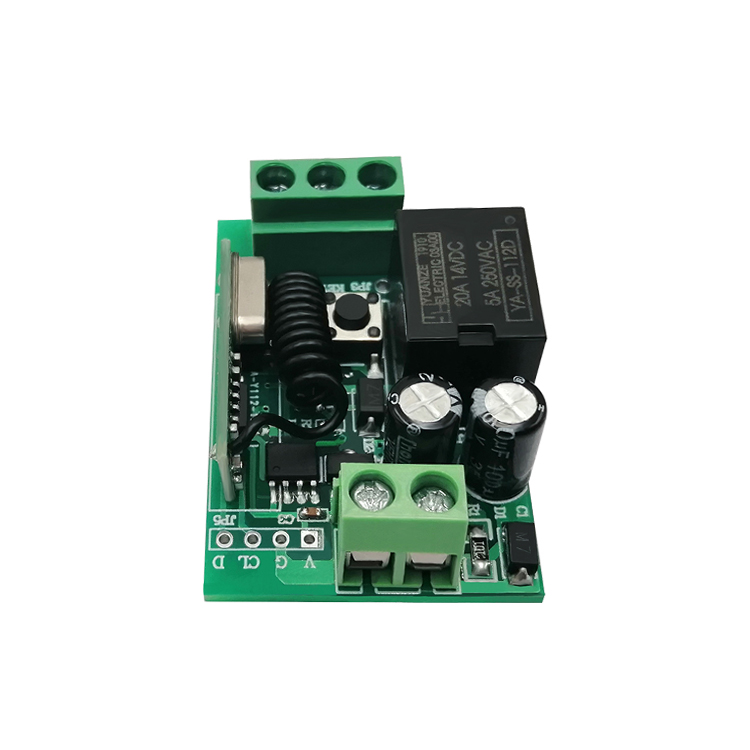

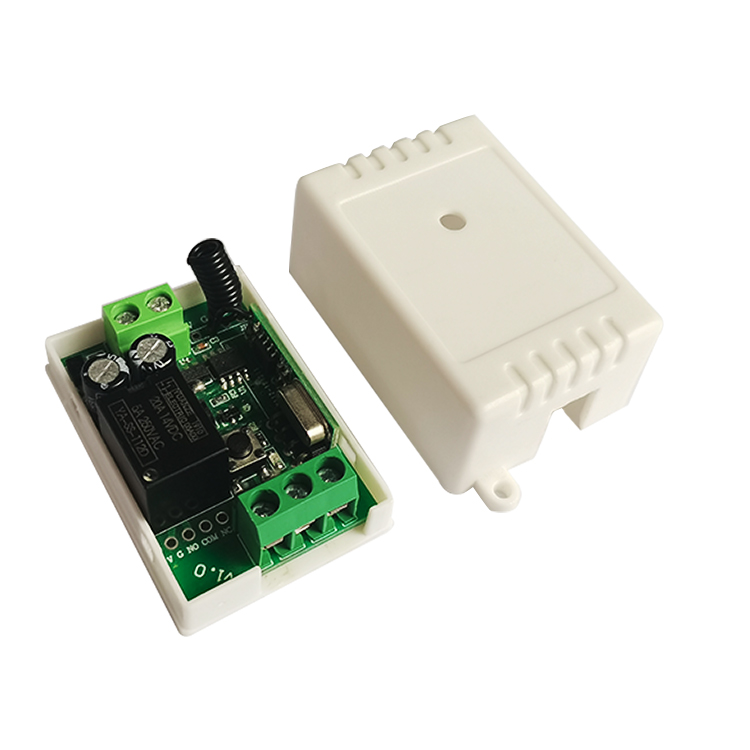

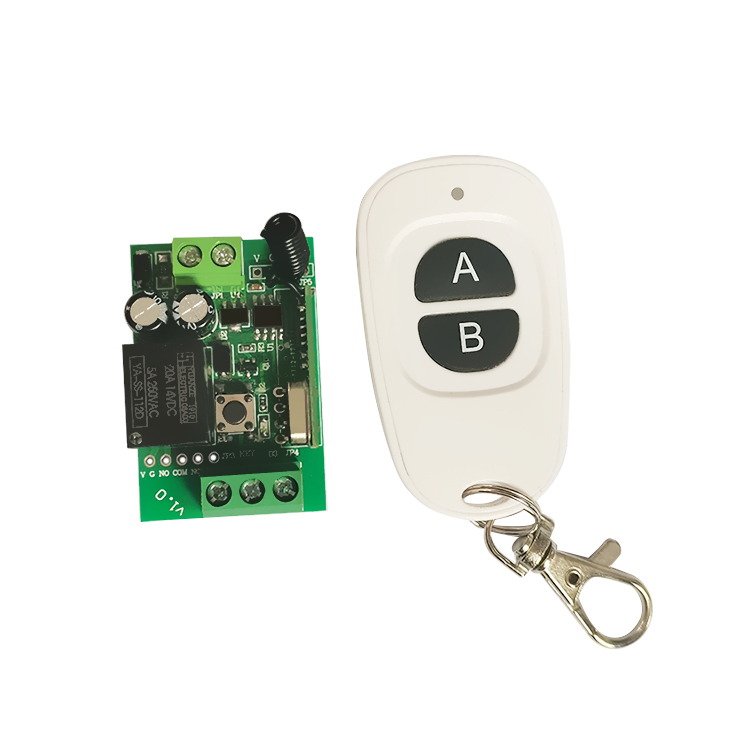

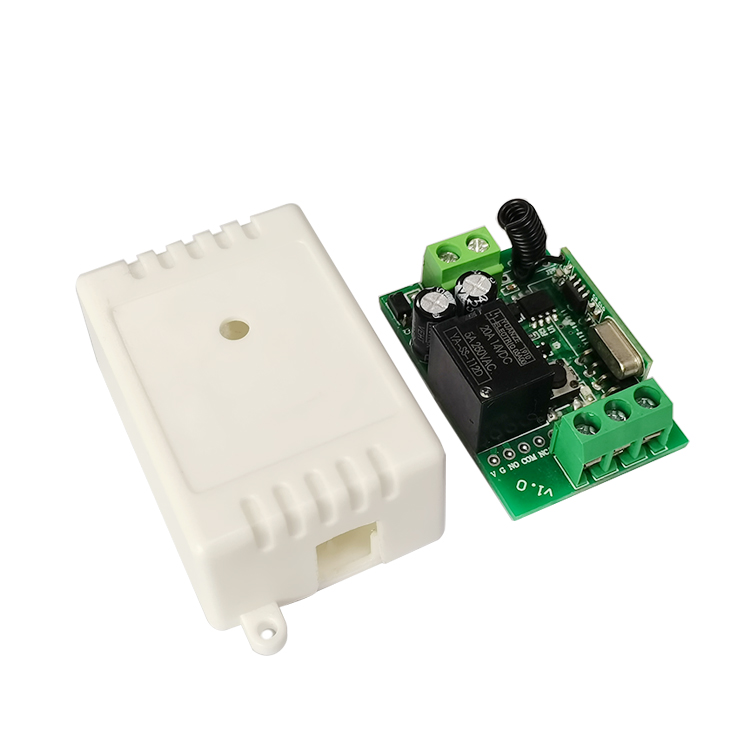

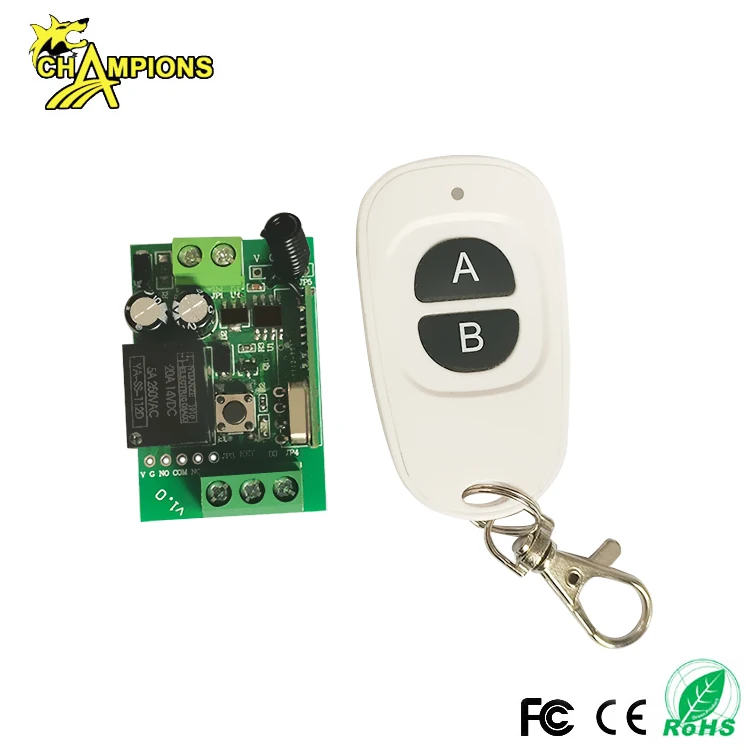

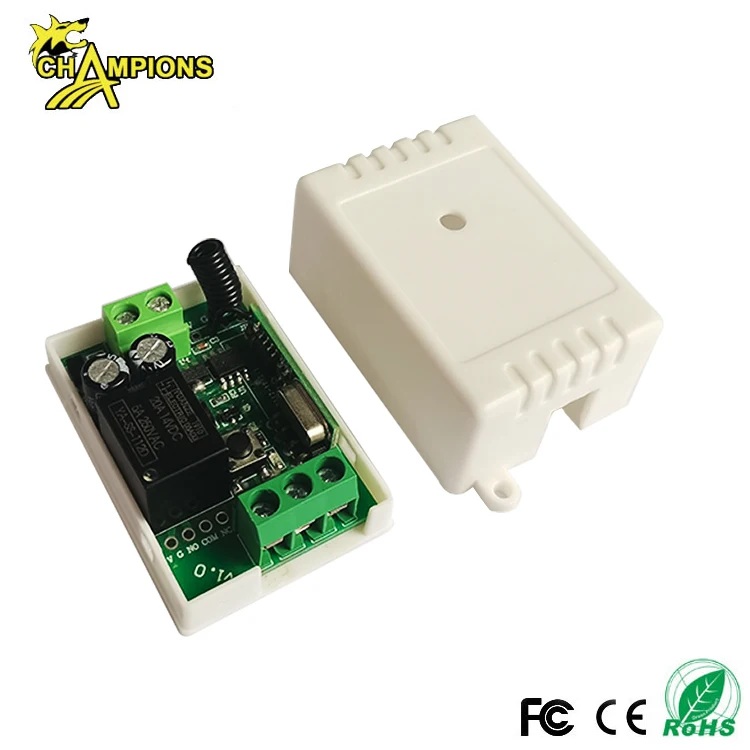

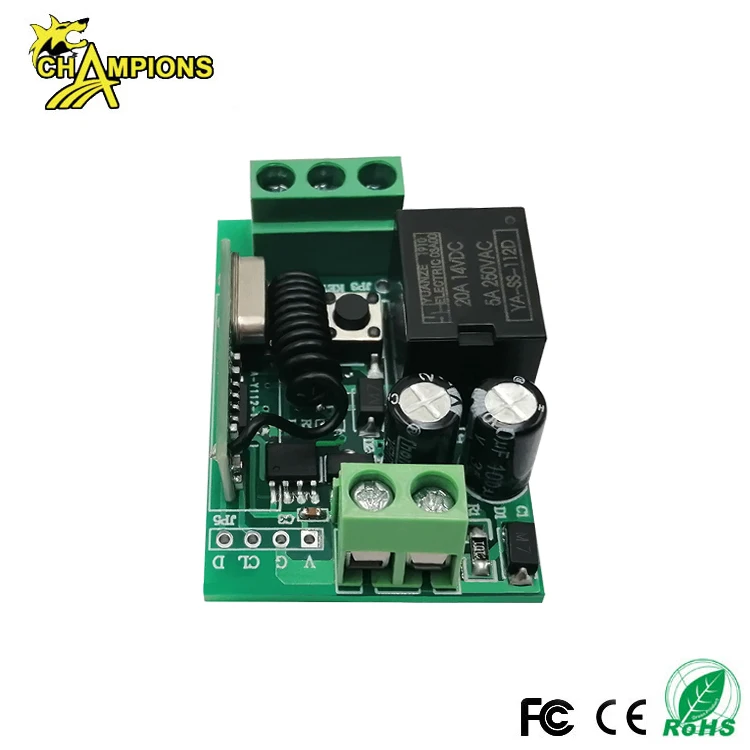

This product adopts the latest high-end intelligent microprocessor control technology and is composed of high-end vital parts such as microprocessor chips, relays, and wireless receiving modules. It is used for garage door control, lighting control, remote curtains, access control systems and various motor control systems, etc. . Small size, easy to install, safe and reliable in use.It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 10pcs different remote
controls.


Product name
Remote Control Switch
Model
AG-C105D
Frequency
433MHZ/315MHZ
Encoding type
Learning code,Fixed code
Channel
1 Channels
Working voltage
DC12V / 24V
Working mode
Jog, interlock, self-lock, Delay time(5S/10S/15S/20S)
Receiving sensitivity
-105dBm
Output Current
≤10mA
Board size
 50*35*22mm
Product name
Wireless rf remote control
Model
AG061B
Frequency
433MHZ/315MHZ
Encoding Type
Learning code, Fixed code
Button
1/2 button optional
Material
Plastic & ABS
Battery
6V
Warranty
1 year
Certification
CE ROHS FCC
Distance
50-80 meter

This receiver can work with all of our company remote controls, a lot of models, you can choice other models you like. You may like : Click here

Learning Remote Way

Working Mode matching method:1. Jog learning method:First complete the code clearing, then press and hold the learning button of the controller for 2 seconds, the LED light is on, release the learning button and the LED light is off, press the remote control button that needs to be coded, and the LED light flashes 5 times and then goes out, indicating a jog The code is successfully matched.
2. Interlocking learning method:First, complete the code clearing, then press and hold the controller learning button for 2 seconds, the LED light will light up, short press the learning button once, the LED indicator will blink once and then go out, press one of the remote control buttons that need to be coded, LED The light flashes 2 times and then goes out, and then press another button of the remote control that needs to be coded. The LED light flashes 5 times and then goes out, indicating that the interlocking code is successfully configured.
3. Self-locking learning method:First complete the code clearing, and then long press the controller learning button for 2 seconds, the LED light will light up, short press the learning button 2 times, the LED indicator will flash 2 times and then go out, press the remote control button that needs to be coded, the LED light will flash It turns off after 5 times, indicating that the self-locking code is successfully configured.
4. Learning method with a delay of 5 seconds:First complete the code clearing, then long press the controller learning button for 2 seconds, the LED light is on, short press the learning button 3 times, the LED indicator flashes 3 times and then goes out, press the remote control button that needs to be coded, the LED light flashes It turns off after 5 times, indicating that the code is successfully configured after a 5-second delay.
5. Learning method with a 10-second delay:First complete the code clearing, and then press and hold the controller learning button for 2 seconds, the LED light is on, short press the learning button 4 times, the LED indicator flashes 4 times and then goes out, press the remote control button that needs to be coded, the LED light flashes It turns off after 5 times, indicating that the code is successfully configured after a 10-second delay.
6. Learning method with 15 seconds delay:First complete the code clearing, then long press the controller learning button for 2 seconds, the LED light is on, short press the learning button 5 times, the LED indicator flashes 5 times and then goes out, press the remote control button that needs to be coded, the LED light flashes It turns off after 5 times, indicating that the code is successfully configured after a 15-second delay.
7. Learning method with a delay of 20 seconds:First complete the code clearing, then long press the controller learning button for 2 seconds, the LED light is on, short press the learning button 6 times, the LED indicator flashes 6 times and then goes out, press the remote control button that needs to be coded, the LED light flashes It turns off after 5 times, indicating that the code is successfully configured after a delay of 20 seconds. ★Note: A. In interlock mode: the key value learned for the first time is used as the “on” function, and the key value learned for the second time is used as the “off” function.         B. The relay is closed and the LED light is on; the relay is disconnected and the LED light is off. 4. Hand function: Short press the button on the controller to execute the manual "on", and then short press the button to execute the manual "off" function. ★Note: The manual function and the remote control function are interrelated and controlled.
Clear code method:Power on, and then clear the code. Press and hold the learning button on the control panel for 8 seconds, the LED light turns from a steady state and then flashes 3 times and then goes out, that is, all the remote controllers that learn to code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.
Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Service

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Certifications
FAQ

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
