Wide voltage 85V~265VAC Remote Switch 433MHz Wireless Switch Transmitter with Receiver Learning Code
    Publish time 2021-11-03 15:28
Wide voltage 85V~265VAC Remote Switch 433MHz Wireless Switch Transmitter with Receiver Learning Code
Product Description

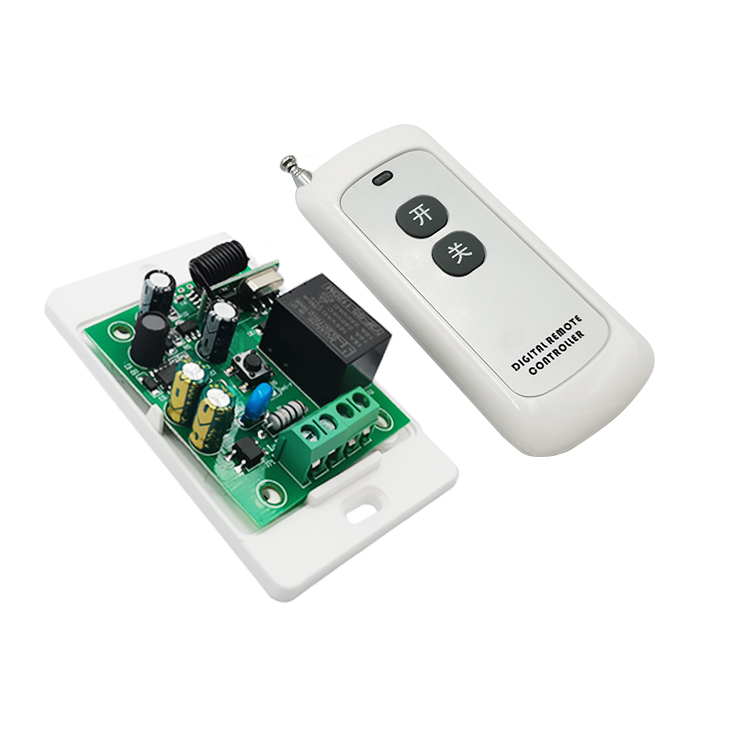

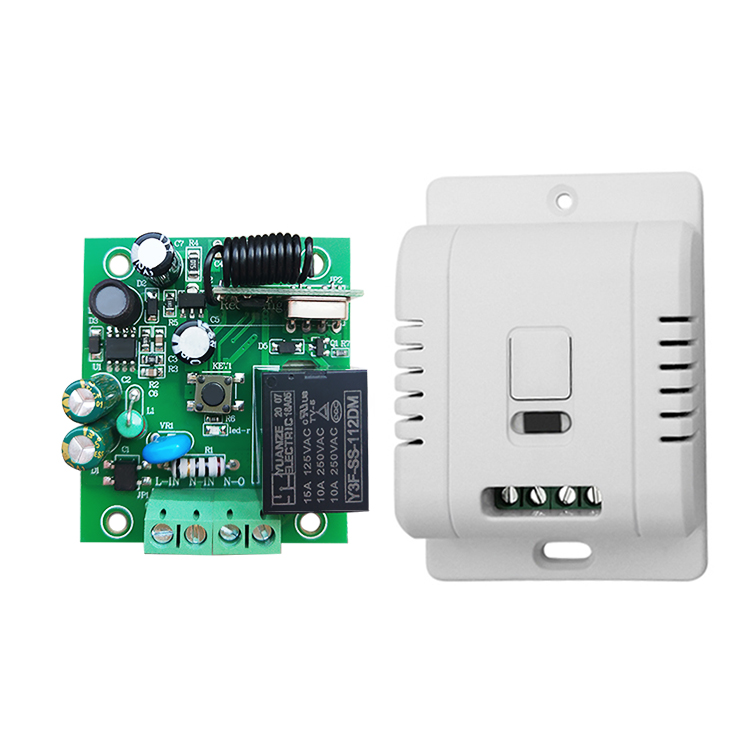

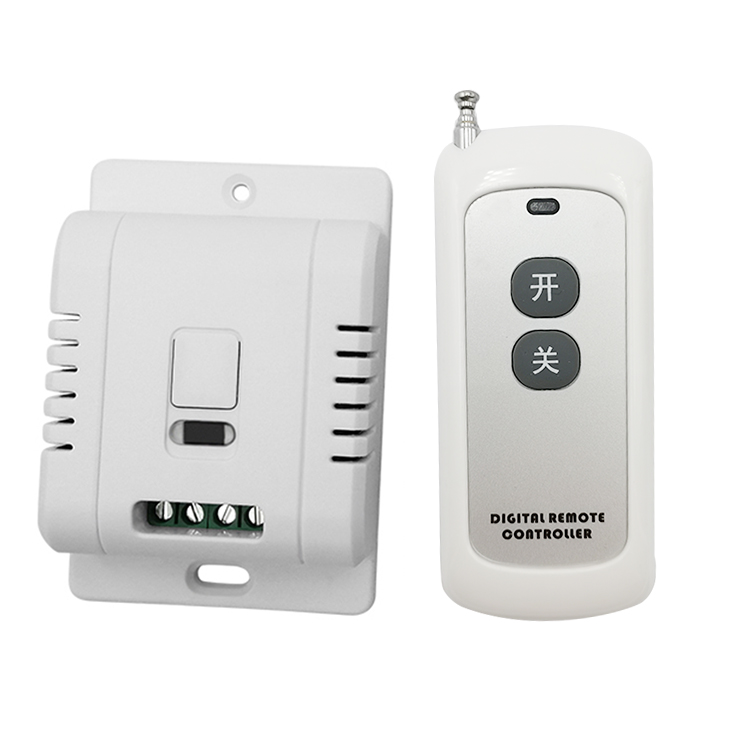

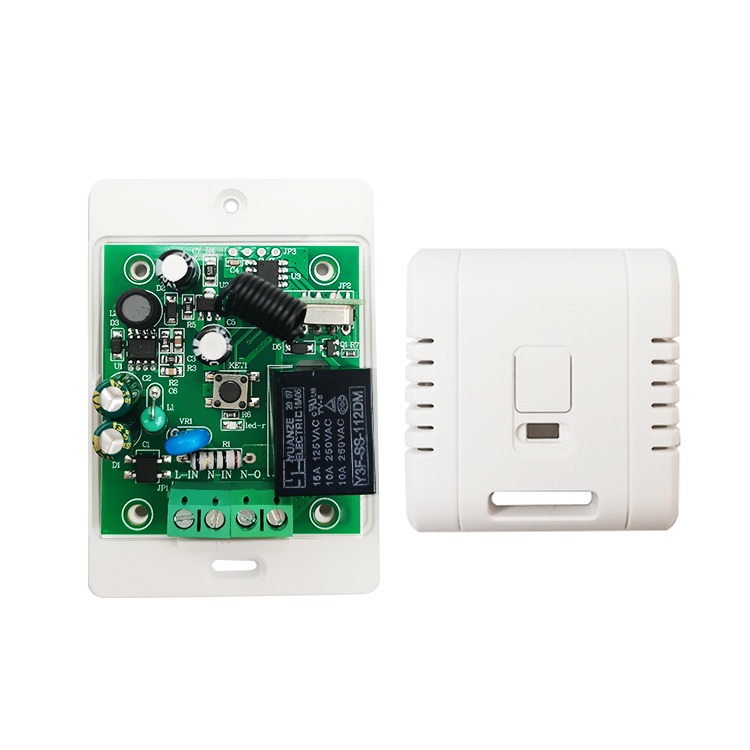

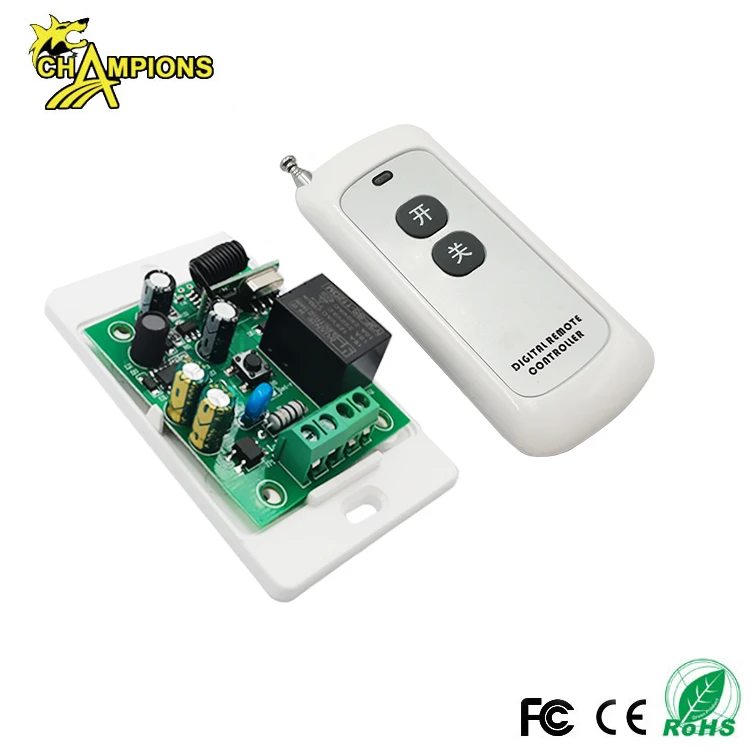

Wide voltage 85V~265VAC Remote Switch 433MHz Wireless Switch Transmitter with Receiver Learning Code AG-C112 New version 2.0


220V one channel big power switch use 10A relay.

Can use for high-power electrical appliance.
Can work with more remote control, output with power.use and installation easy.

Can learn more than one remote control, and each remote control all the keys can learn;

Can be a remote control to control multiple switches, but also a lot of remote controls to control a switch, simple and flexible combination of any combination;

Mainly used in lamps, electric doors, windows, lifting equipment, gateways, elevator, industrial control and security industry.

Product name
Remote Control Switch
Model
AG-C112
Channel
1 Channels
Working voltage
85V~265VAC
Output Current
≤10A
Working frequency
433mhz ; 315mhz ;other
Modulation Mode
ASK
Function option
Momentary/Latched
Output Mode
Output Voltage

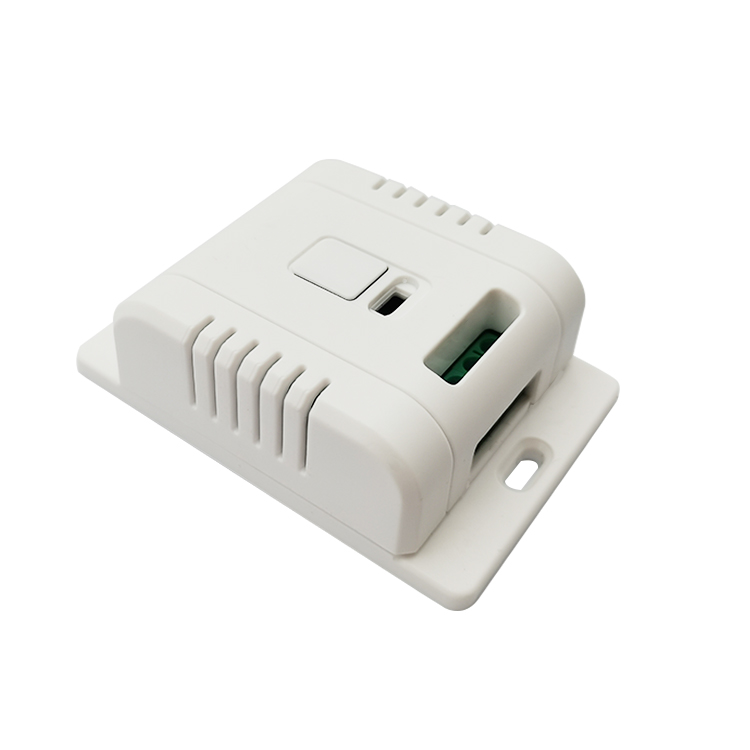

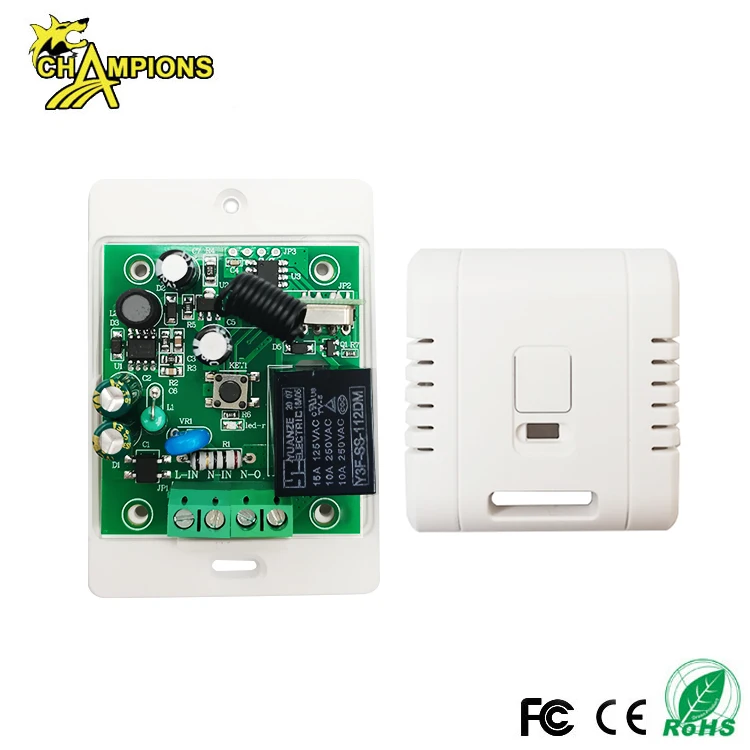

Board size
75*52*25mm
Working temperature
-40℃- +80℃
Transmitting Distance:
60-100 Meter(open space)

Features:

【Easy & Convenience】# Wireless control, easy to install. We have made transmitter and receiver working together and test it before ship it,when you get it just need install it.

【Wide range of uses】# the wireless remote control switch can control Lights, Motors, Fans, electrically operated
  Doors/Locks/Windows/Blinds/Cars or Other Appliances
【Perfect Design】# One transmitters can control one/several receivers simultaneously. If you use two or more receivers
  in the same place, you can set them with different codes. If you use multi-button transmitter, you can control the controller with different buttons, it wont affect each other.
【Diversified working methods】# Adjustable working way, control equipment turn/reverse, on/off. Switch Self-lock,
  Inter-lock.
【Advantage】# The wireless receiving controller, with high confidentiality, stable performance, low power consumption
  characteristic, jump line or dial the code switch coding. This switch can learn different coding remote controls (such as
  2262,1527 ect.) It can learn 2260 2262 or 1527 chip with the different code wireless (433MHz/315MHz same frequency) remote control.it can learn more than 10pcs different remote controls.

Learning mode matching method:

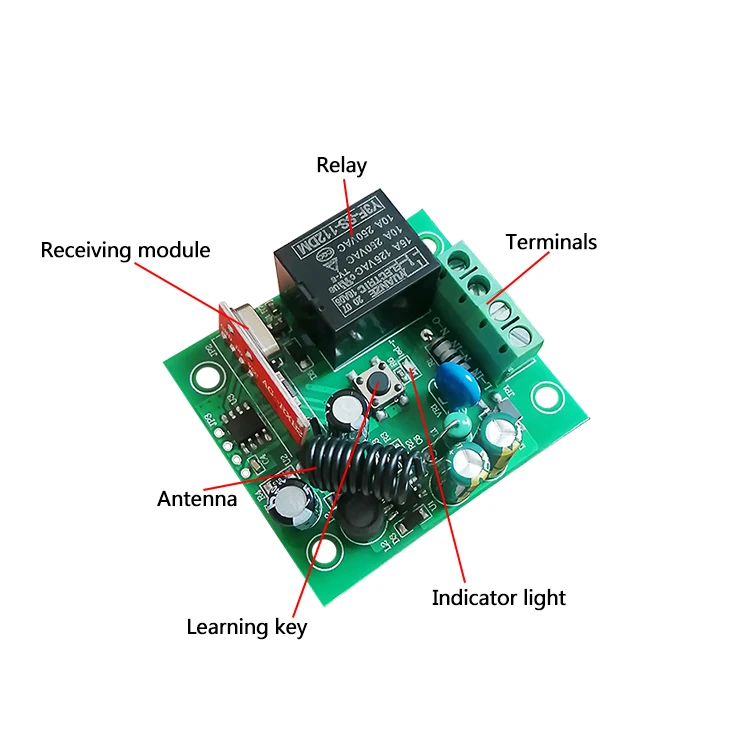

First complete the code clearing, then press and hold the learning button of the controller for 3 seconds, the LED light will light up, release the learning button and press one of the buttons on the remote control, the LED light flashes twice and then goes out, and then press another button, LED The light flashes twice and then goes out, indicating that the interlocking code is successfully matched.
★Note: A. The key value learned for the first time is used as the "on" function, and the key value learned for the second time is used as the "off" function. B. If the key value of the two learning is the same, it will be self-locking mode after the code is successfully configured. C. The relay is closed and the LED light is on; the relay is disconnected and the LED light is off.
Manual hand function:  Short press the button on the controller to execute the manual "on", and then short press the button to execute the manual "off" function. ★Note: The manual function and the remote control function are interrelated and controlled.Clear Code:Power on, and then clear the code. Press and hold the learning button on the control panel for 6 seconds, the LED light turns from a steady state and then flashes 4 times and then goes out, that is, all the remote controllers that have learned the code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.

Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Service

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Certifications
FAQ

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
