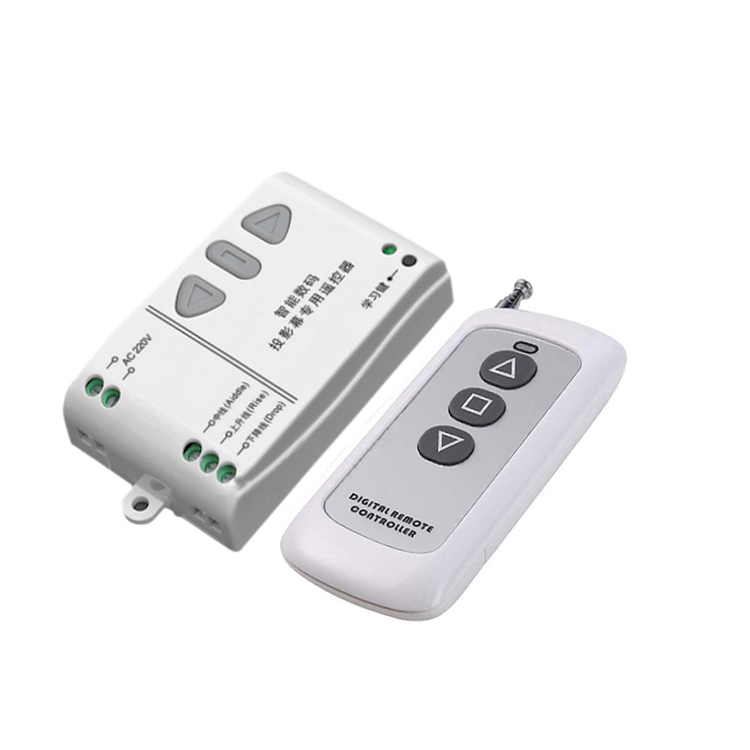

433MHz Up Down Switch Wireless Remote Control Gate High Compatibility Easily Carrying
    Publish time 2021-11-03 15:54
433MHz Up Down Switch Wireless Remote Control Gate High Compatibility Easily Carrying
433MHz Up Down Switch Wireless Remote Control Gate High Compatibility Easily Carrying for Projection Screen/Garage Doors AG-C209
Product Description
Specification:
Working Voltage
220V AC
Output Current
≤10A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Momentary/Latched
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Voltage output 220V AC
Working temperature
-40℃- +80℃
Dimension
98*52*24mm
Transmitting Distance:
60-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.
Photos

Features:

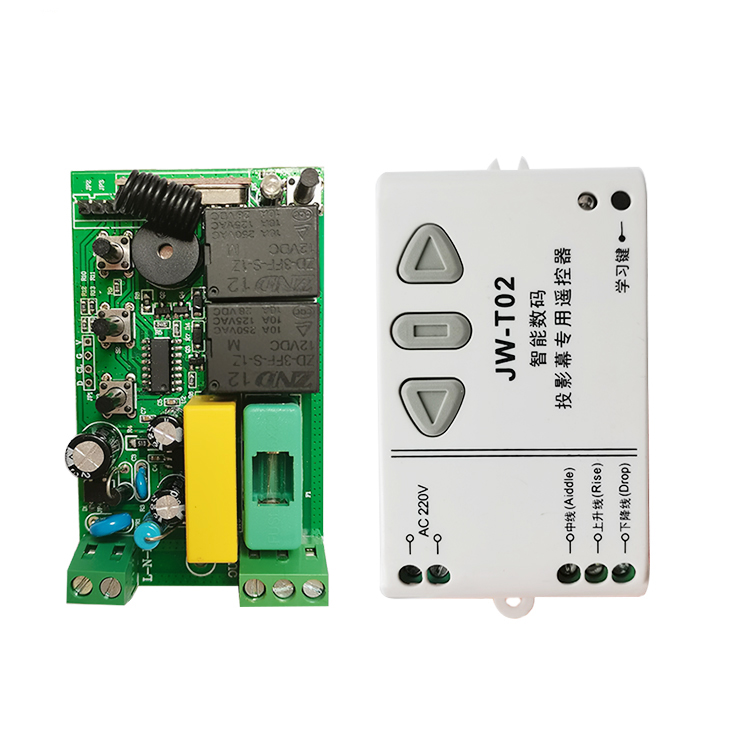

It has 3 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15 pcs different remote controls.
Working mode:
Method of pairing remote control in learning mode:
Interlock mode learning method: first complete the code clearing, and then press and hold the "△" button on the controller for more than 3S, the LED light is always on, release the learning button and press the "△" button on the remote control at the same time, wait until the LED light flashes 3 times and the buzzer beeps three times, at this time the "△" key learning has been completed; then press and hold the "▽" key on the controller for more than 3S, the LED light is always on, release the learning button and press the remote control "▽" button, wait until the LED light flashes 3 times and the buzzer beeps three times, at this time the "▽" button learning is completed.

★Note:
A. "△" and "▽" keys are used for learning separately; the "" key can be
controlled without learning.

B.  After power on, the LED indicator is always off, regardless of manual or remote control operation, the LED light flashes once and the buzzer beeps once, and the manual function and the remote control function are interrelated and controlled.

C.  Conversion mode: In interlock mode, short press the independent button twice and the LED light flashes twice to switch to jog mode; in jog mode, short press the independent button again and the LED light flashes once to switch to interlock mode

Learning Remote method：

Power on, then clear the code. Long press the independent button on the control panel for 6 seconds, the LED light changes from constant on to normally off and then flashes twice, accompanied by two buzzers, that is, all the remote controllers that learn to code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.
