1CH DC 12V Relay Wireless RF Module Switch On/Off Switch and Remote Control AG-C103
    Publish time 2021-11-03 15:59
1CH DC 12V Relay Wireless RF Module Switch On/Off Switch and Remote Control AG-C103
Product Description

1CH DC 12V Relay Wireless RF Module Switch On/Off Switch and Remote Control AG-C103

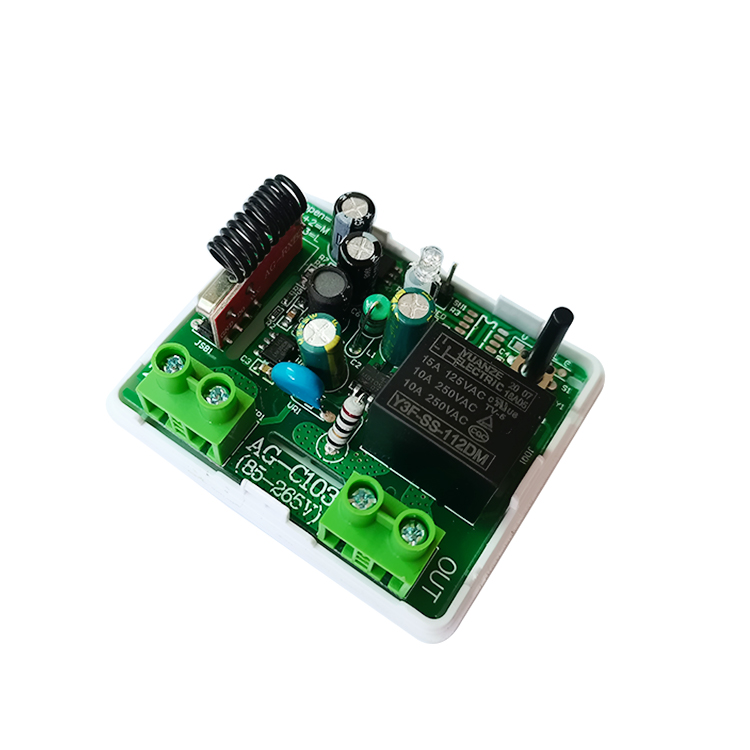

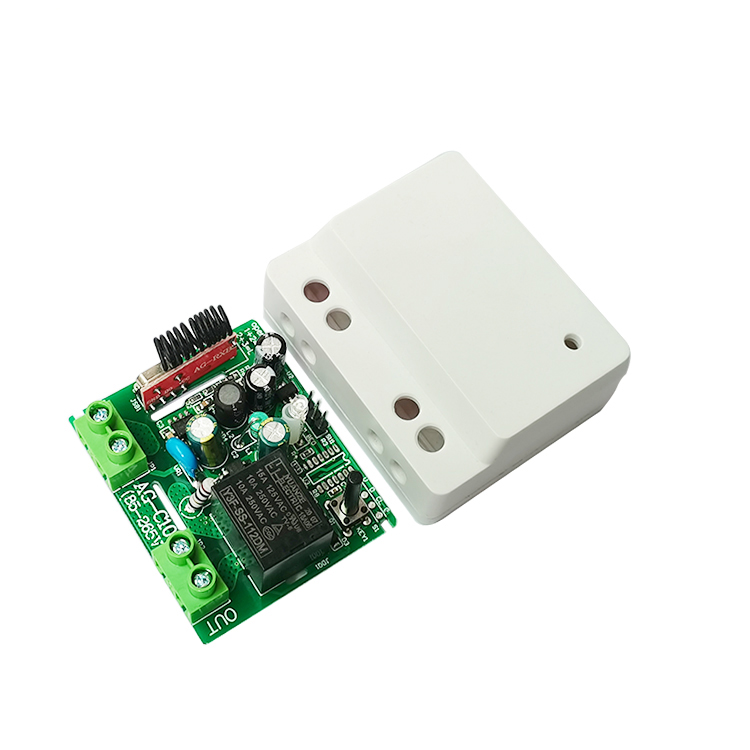

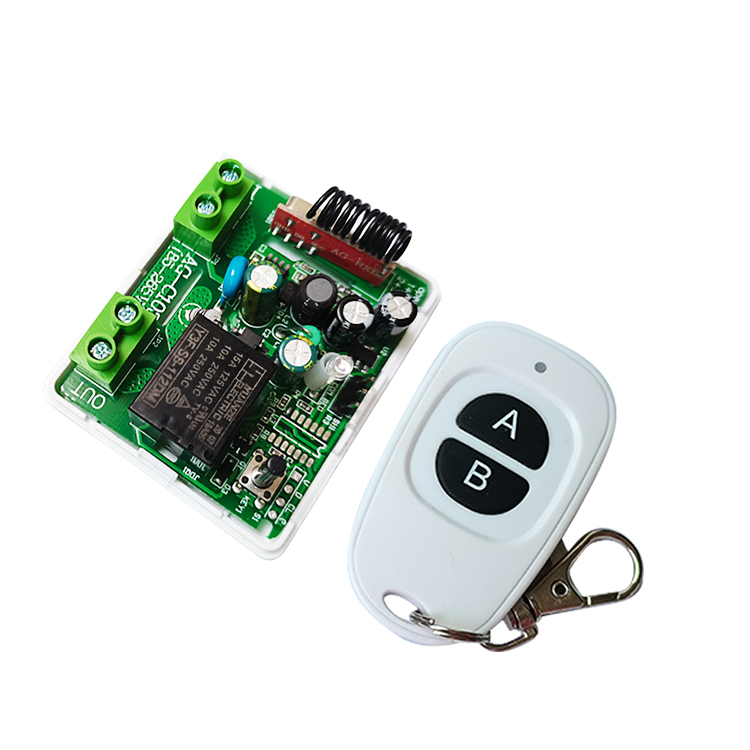

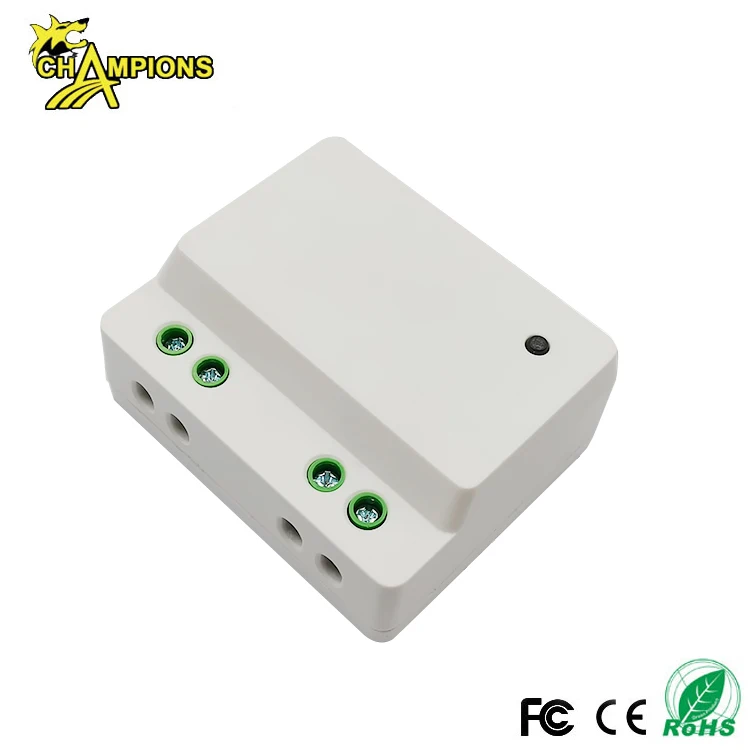

This item AG-C103 has one relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 10pcs different remote controls.

Product name
Remote Control Switch
Model
AG-C103
Frequency
433MHZ/315MHZ
Encoding type
Learning code,Fixed code
Channel
1 Channels
Working voltage
DC 12V
Working mode
Momentary,Toggle,Latching
Receiving sensitivity
-105dBm
Output Current
≤10A
Board size
55*32*16mm

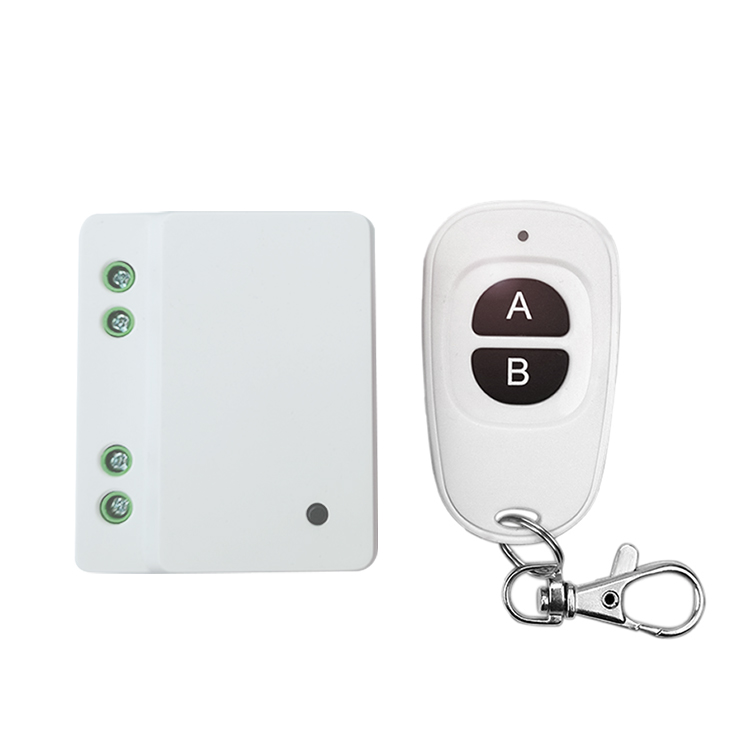

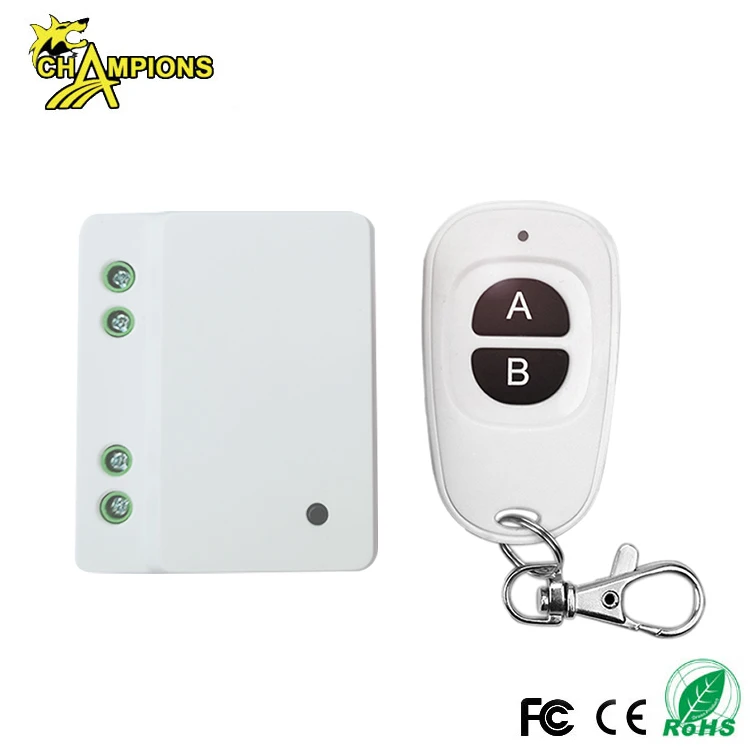

Product name
Wireless rf remote control
Model
AG061B
Frequency
433MHZ/315MHZ
Encoding Type
Learning code
Button
2 button
Material
Plastic & ABS
Battery
12V
Warranty
1 year
Certification
CE ROHS
Distance
50-100 meter

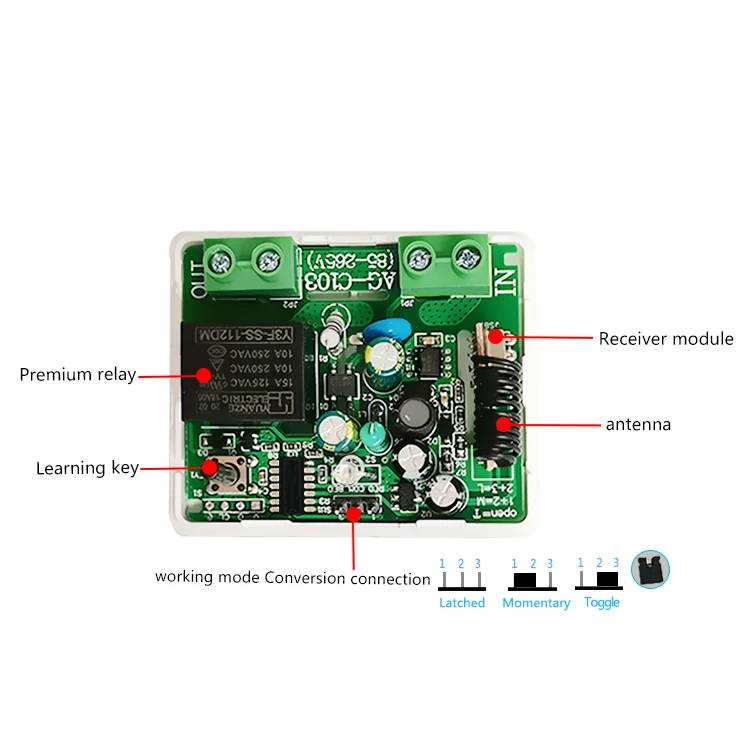

Pair remote control method:

First, complete the code clearing, short press the controller learning button once, the learning LED light is on, release the learning button and press one of the buttons on the remote control, wait for the LED light to flash 3 times and then stay on, indicating that the code is successfully configured.


This receiver can work with all of our company remote controls, a lot of models, you can choice other models you like. You may like : Click here


Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Service

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Certifications
FAQ

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
