DC 12V - 24V Rolling fixed Code Receiver garage gate Remote control switch
    Publish time 2021-11-03 16:34
DC 12V - 24V Rolling fixed Code Receiver garage gate Remote control switch
433Mhz DC 12V - 24V Rolling fixed Code Receiver garage gate Remote control switch
Product Description
Specification:
Working Voltage
12V~36 V（DC/AC）
Output Current
≤8A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Momentary/Toggle
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Dry contact (switch signal)
Working temperature
-40℃- +80℃
Dimension
95*60*30mm
Transmitting Distance:
60-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

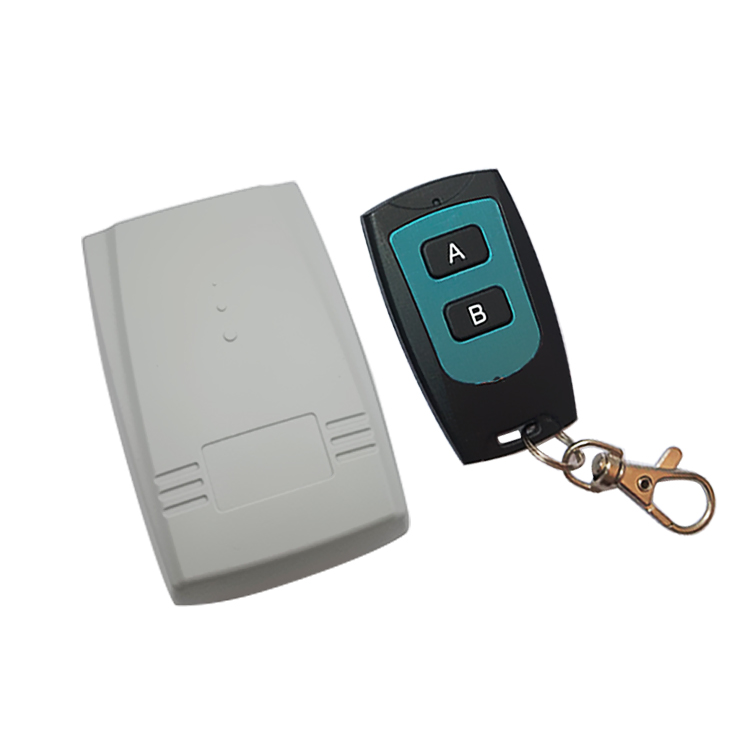

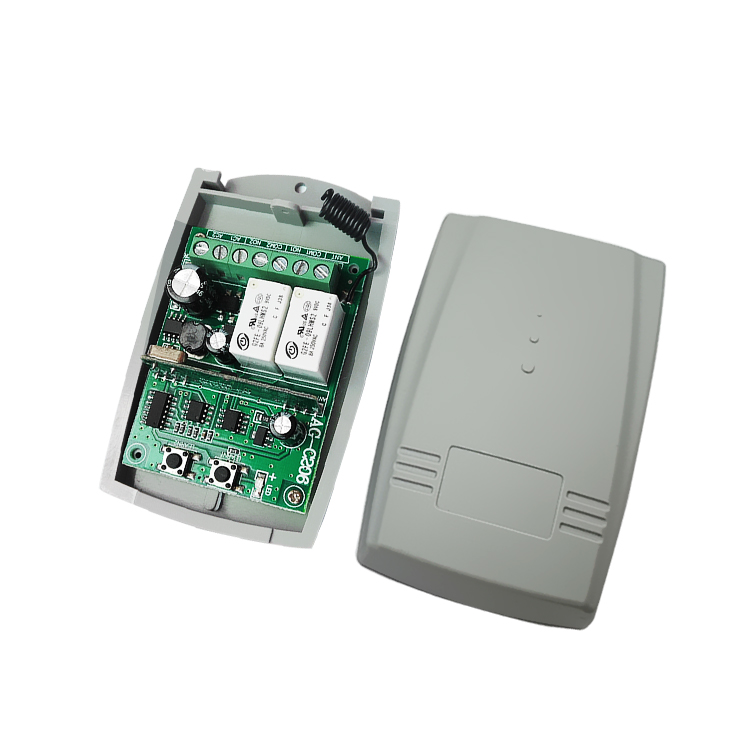

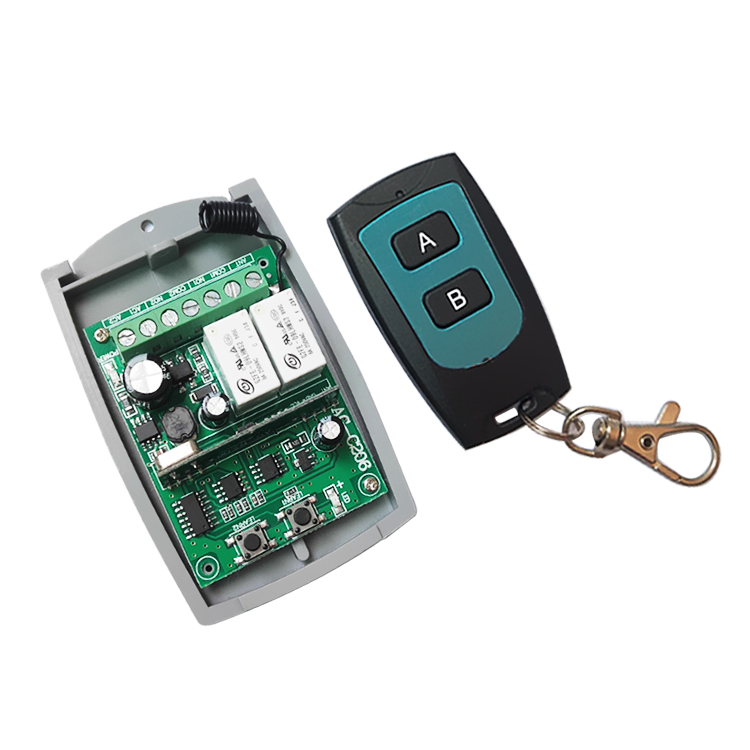

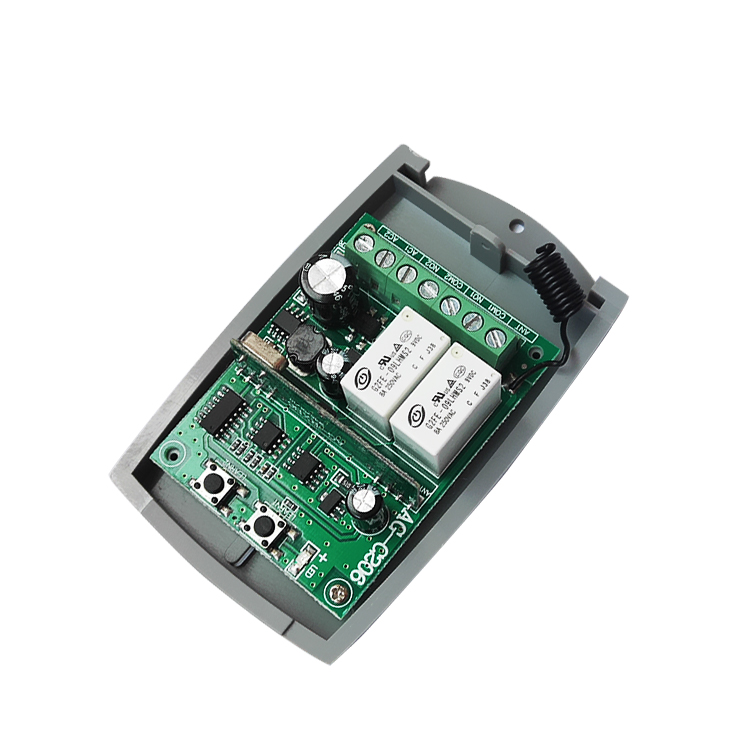

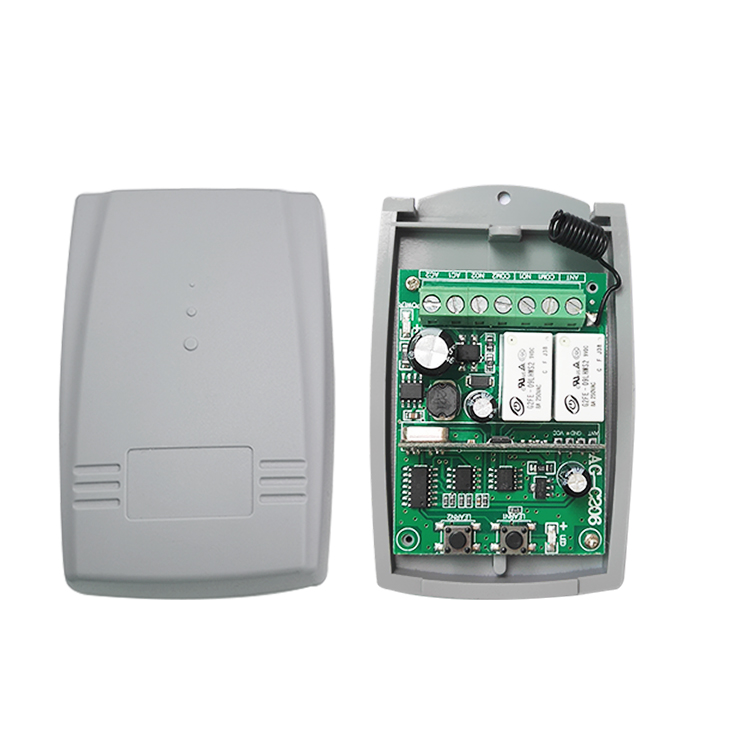

Photos

Features:

This product adopts imported Microchip (micro-core technology) PIC micro controller, composed of PIC16F630 chips, wide-voltage switching power supply chips, relays, wireless receiving modules and other high-end vitality parts. It is used for garage door control, lighting control, remote curtains, access control systems and various Kind of motor control system, etc. It has the characteristics of easy installation, safe and reliable use, etc
This product is a general-purpose intelligent controller that can be used with most
wireless remote controllers on the market, including fixed codes (2262, 2260, 2264, 5326,
M1E, M5E, etc.) and learning codes (1527, 2240, 6P20B). , 6P20D, etc.), rolling code
(HCS301, HCS300, HCS200, HCS201, HCS100, HCS101, etc.) and some custom
remote controls (CAME, NICEFlro, etc.).
Working Mode Matching method:

1.Matching method of Momentary mode:
Press the code matching button on the control panel, the LED indicator will flashes. Then press the remote control button that needs to be paired, and the controller board LED indicator flashes 5 times means in success.
2.Matching method of Toggle mode:
Press the control panel pairing button twice, the LED indicator flashes 2 times, press the remote control button that needs to be paired, and the controller board LED indicator flashes 5 times continuously means in success.

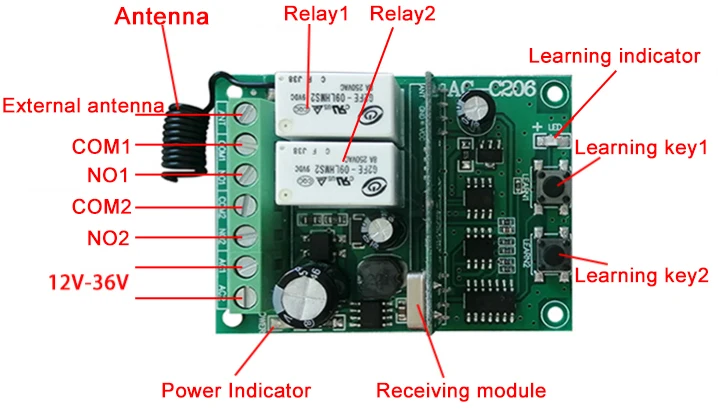

★ Note：CH1 and CH2 (relay1 and relay2) are output independently, LEARN1 corresponds to CH1, LEARN2 corresponds to CH2, and learn separately.

Delete the code:
Power on, then clear the code. Press and hold learning button1 or 2 on the controller board for 12 seconds and wait for the LED light to change from on to off, that is, all the remote controls that paired will be automatically cleared. After clearing, the remote control that has previously paired will no longer be controlled.

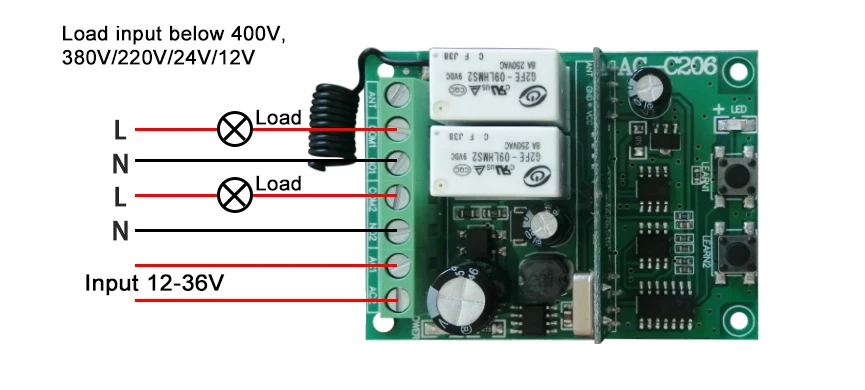

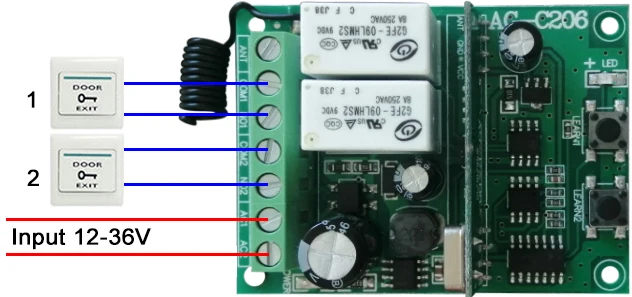

Wiring instructions:

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
