Wireless Control Switch Universal 12V Remote Transmitter with Receiver Widely Used in Homes
    Publish time 2021-11-03 16:41
Wireless Control Switch Universal 12V Remote Transmitter with Receiver Widely Used in Homes

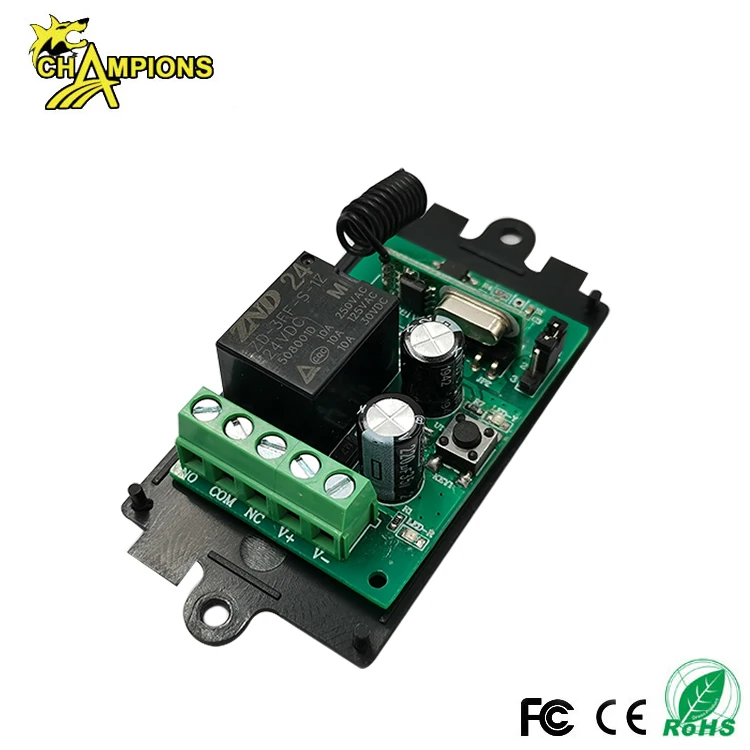

Wireless Control Switch Universal 12V Remote Transmitter with Receiver Widely Used in Homes and Industries AG-C100 new V2.0
Product Description
Specification:
Working Voltage
DC12V (24V)
Output Current
≤10A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Momentary/Toggle/Latched
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Dry contact /Voltage output
Working temperature
-40℃- +80℃
Dimension
65*38*22mm
Transmitting Distance:
60-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

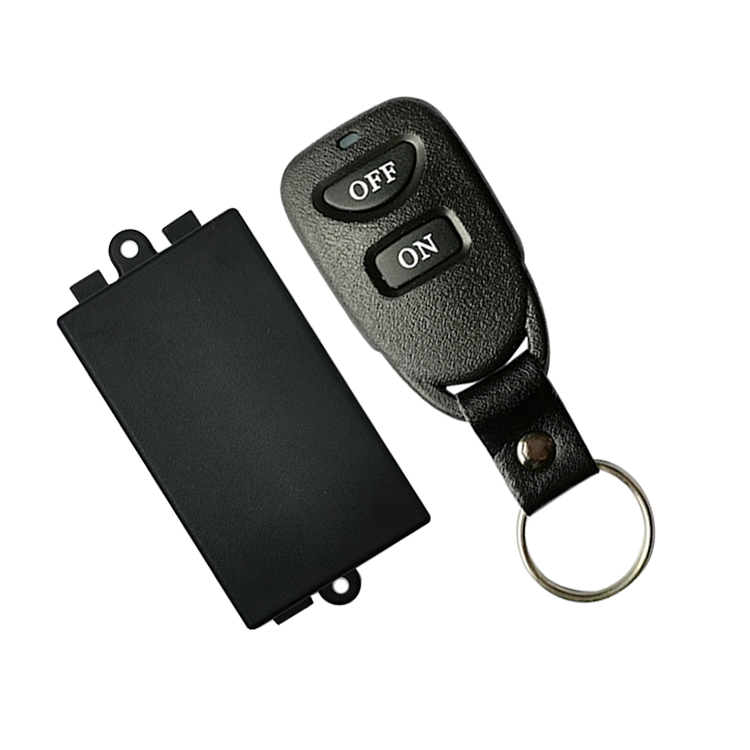

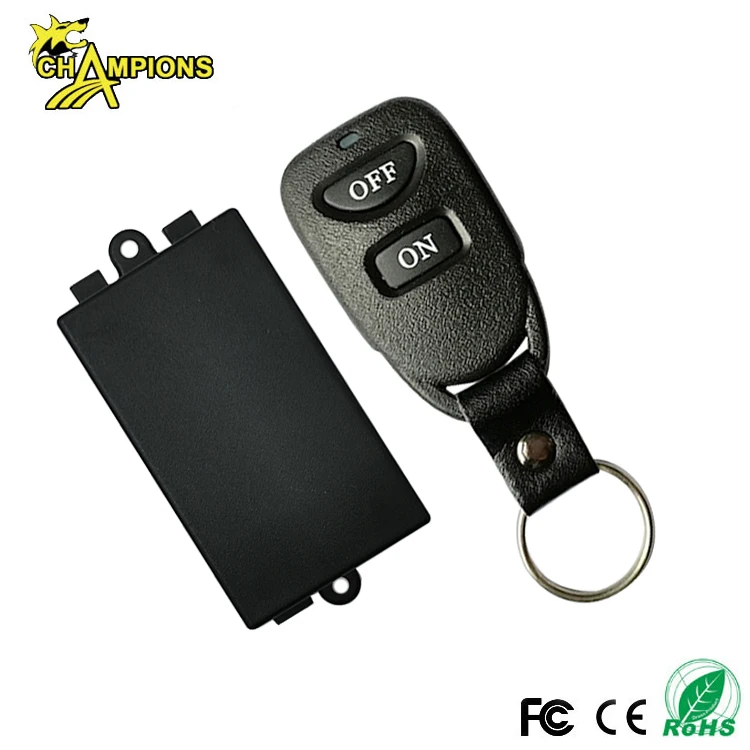

Photos

Features:

It has 4 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15 pcs different remote controls.
Working mode:

The working way change can by jumper

A).Momentary:Position 1,2,3 vacancy, no need jumper connect
Inching function: Press remote A button the controller relay 1 ON, release remote A button the controller relay 1 OFF

B).Latched:Jumper connect 2,3
Interlock function: Press remote A button the controller relay 1 ON, press remote B button the controller relay 1 OFF, relay 2 ON

C). Toggle: Jumper connect 1, 2
Self-lock function: Press remote A button the controller relay 1 ON, Press A button again the controller relay 1 OFF

Learning Remote method：

Power On, press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
