DC 12V 4 Channel Wireless Control Relay Switch 433MHz Remote Transmitter Universal for Garage Doors
    Publish time 2021-11-03 17:01
DC 12V 4 Channel Wireless Control Relay Switch 433MHz Remote Transmitter Universal for Garage Doors
DC 12V 4 Channel Wireless Control Relay Switch 433MHz Remote Transmitter Universal for Garage Doors
Product Description
Specification:
Working Voltage
DC12V
Quiescent Current
5mA
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-105db
Function option
Momentary/Toggle/Latched
Modulation Mode
ASK
Encoding type:
learning code,fixed code,rolling code ,copy code
Matching Mode
Intelligent Learning code
Output Mode

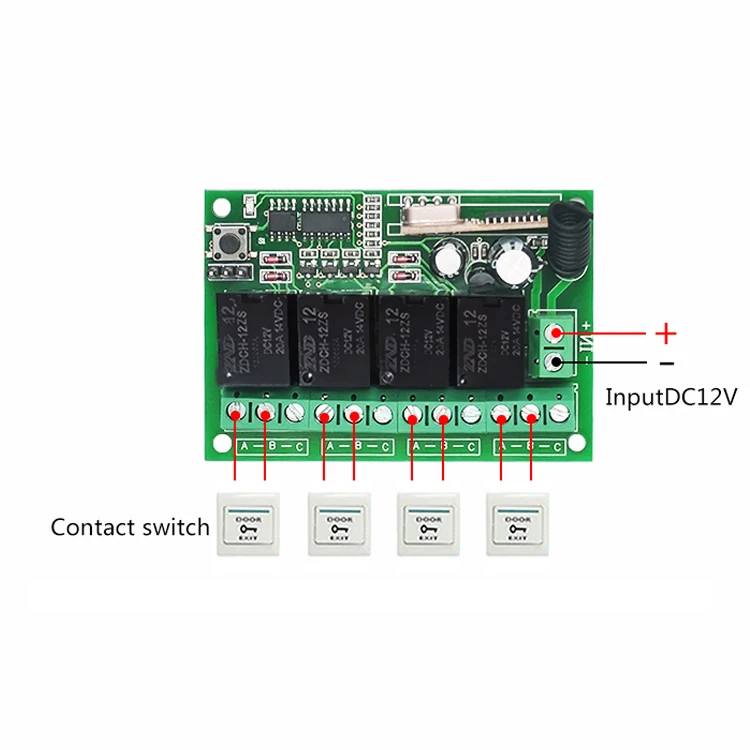

Dry contact /Voltage output
Working temperature
-20℃- +70℃
Dimension
74*54*29mm
Transmitting Distance:
60-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

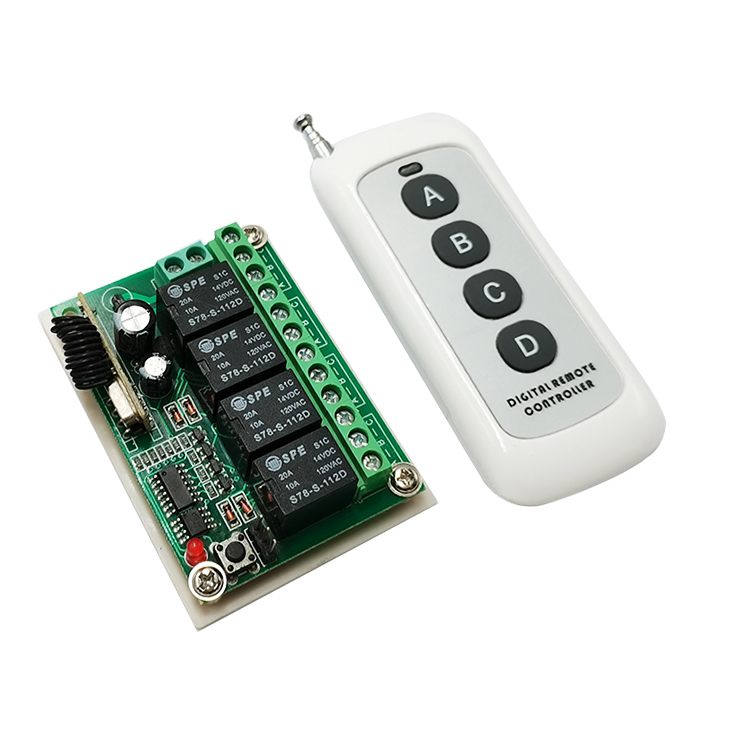

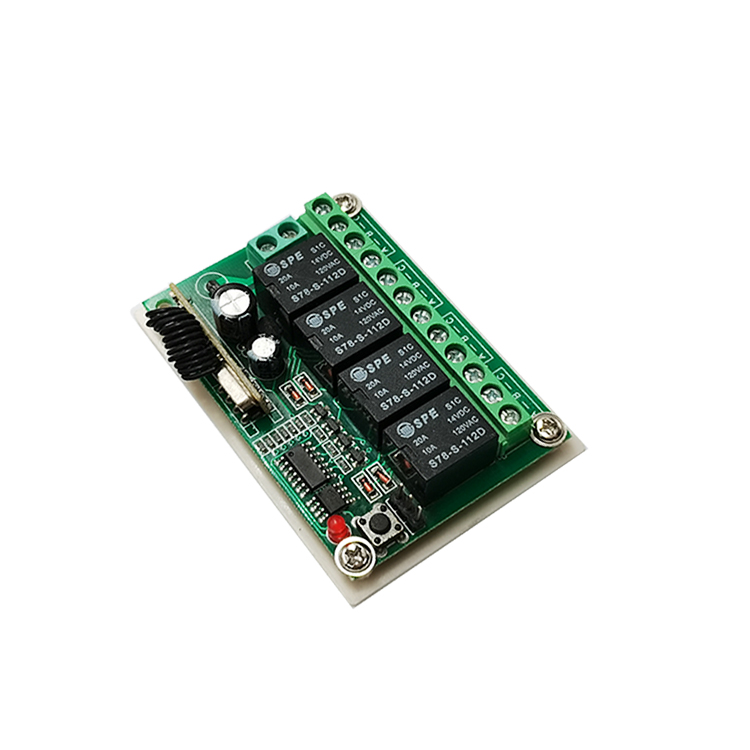

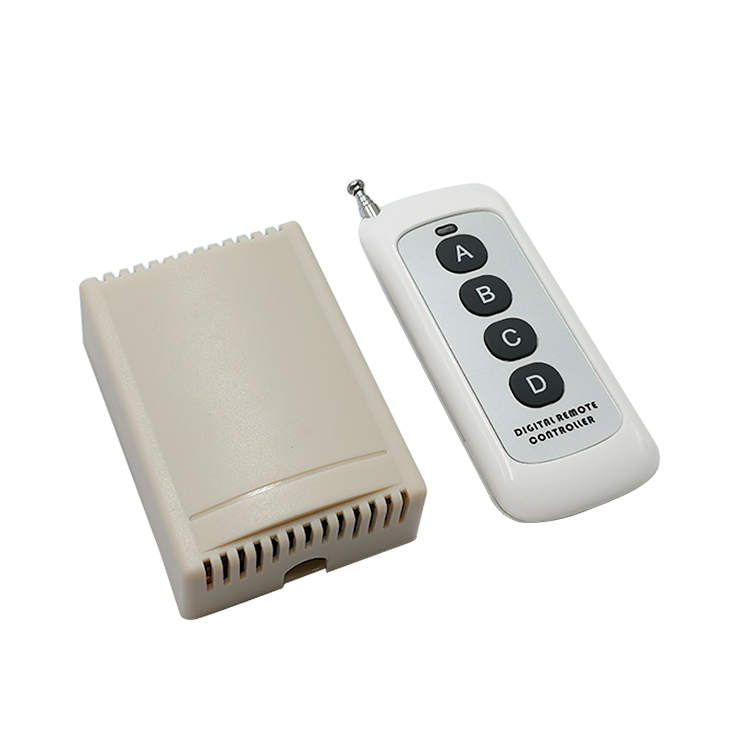

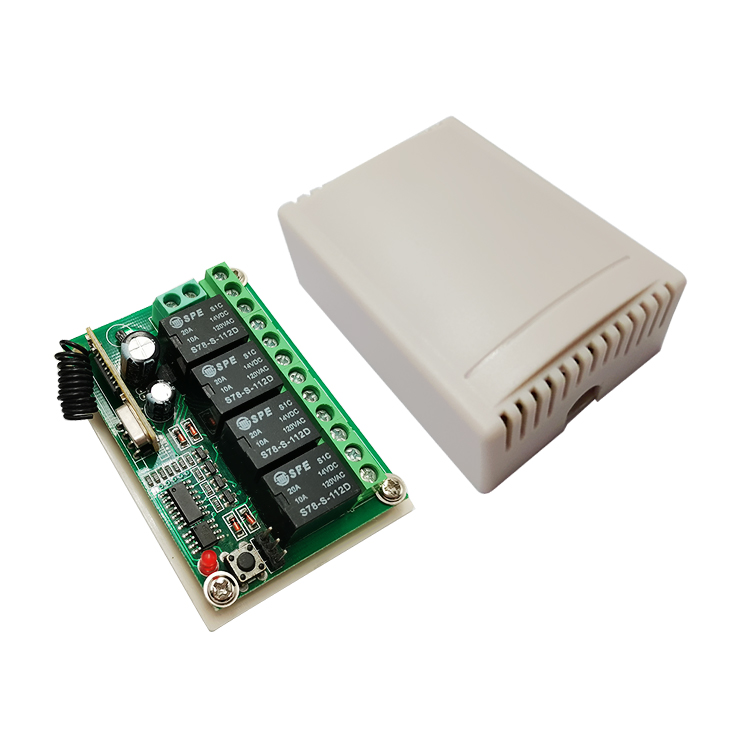

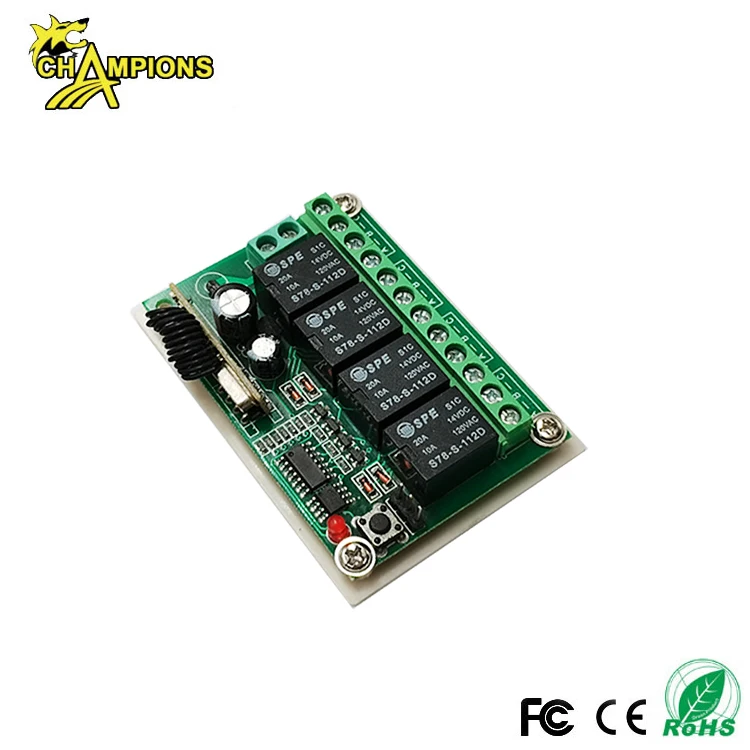

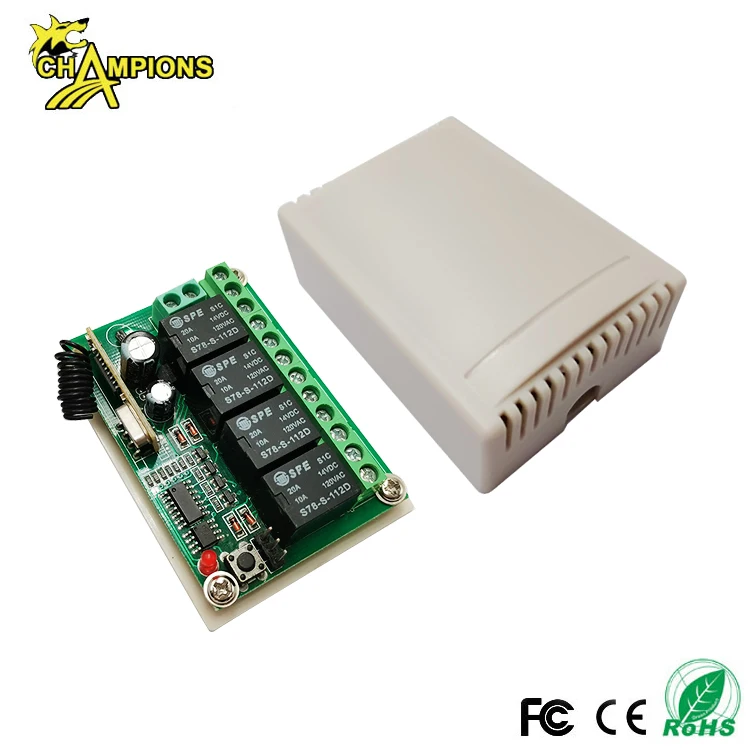

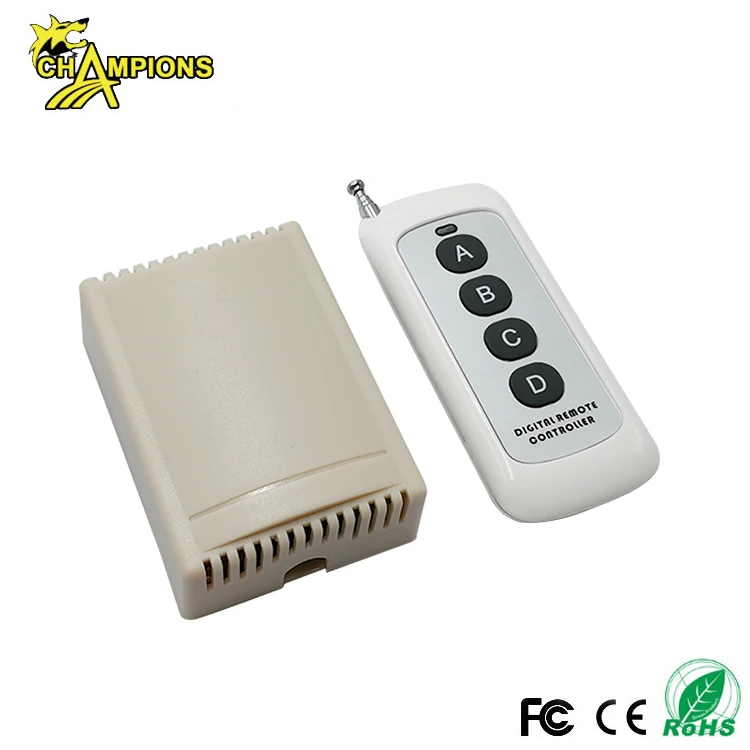

Photos

Features:

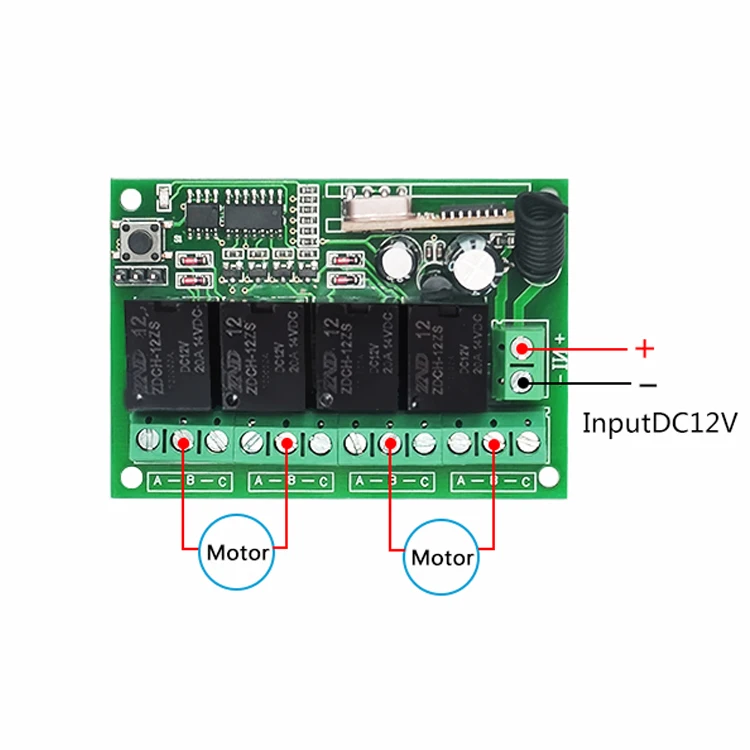

It has 4 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 10pcs different remote controls.

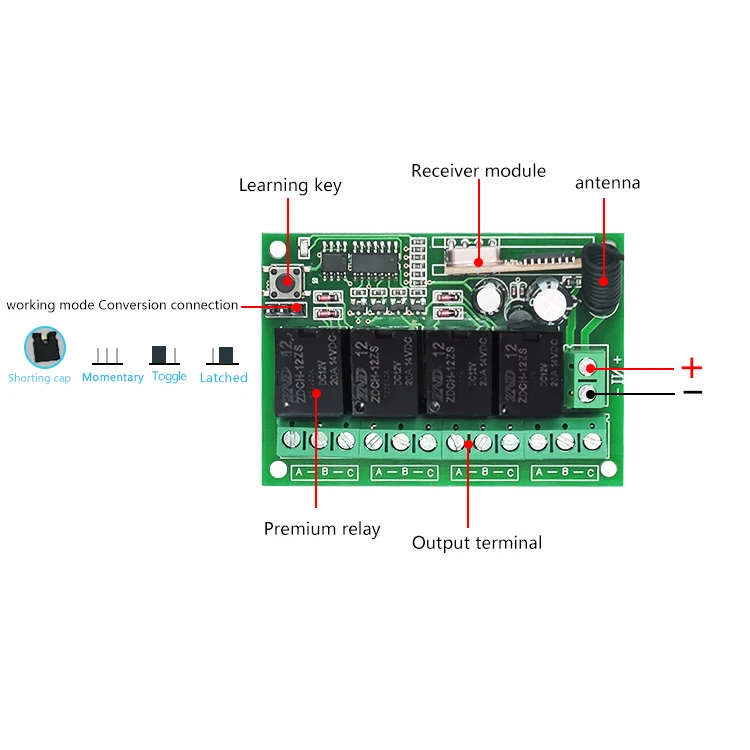

Working mode:

The working way change can by jumper

A).Momentary:Position 1,2,3 vacancy, no need jumper connect
Inching function: Press remote A button the controller relay 1 ON, release remote A button the controller relay 1 OFF

B).Latched:Jumper connect 2,3
Interlock function: Press remote A button the controller relay 1 ON, press remote B button the controller relay 1 OFF, relay 2 ON

C). Toggle: Jumper connect 1, 2
Self-lock function: Press remote A button the controller relay 1 ON, Press A button again the controller relay 1 OFF

Learning Remote method：

Power On, press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
