315MHz/433MHz remote control 10 bit dip switch receiver&transmitter for auto gate barrier
It is designed with small size, beautiful exterior , Sound wave resonator (SAW) is used for stabilizing frequency, It is applied for wireless alarms, wireless controlling devices,etc.
Using High stability, SMT components, SAW (sound wave resonator),Optional for encoding IC.

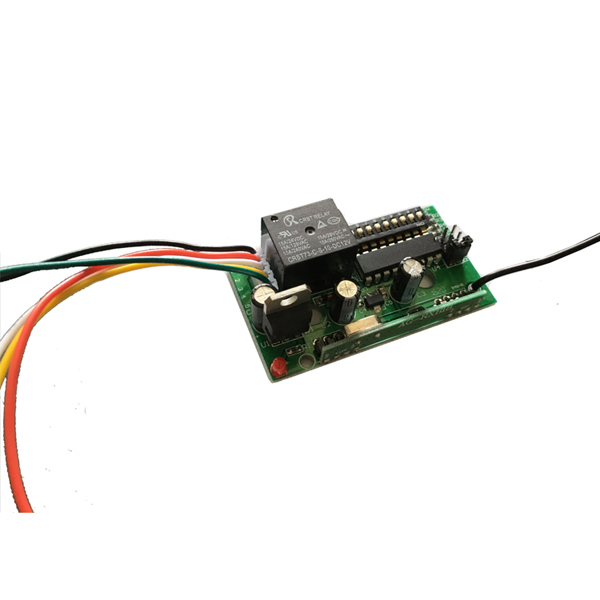

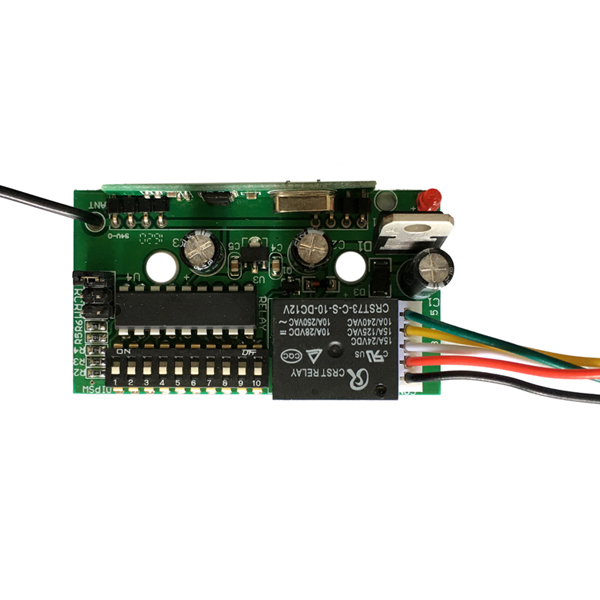

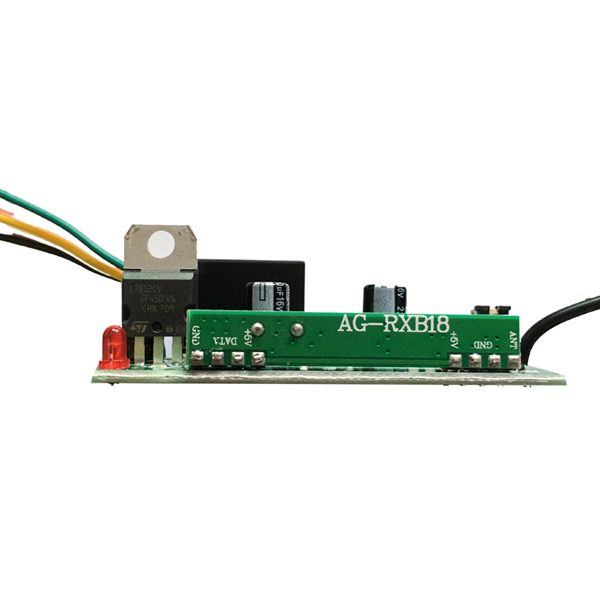

Receiver
Product name | Wireless Receiver |
Model | AG-C109 |
Channel | 1 channel |
Frequency | 315mhz,433mhz |
Working voltage | 12V /24V DC |
Learning remote way | learning mode |
Max. Current | 10mA |
Receiving sensitivity | -115db |
Operating Temperature | -40℃ - +80℃ |
Board size | 55*32*16mm |
Transmitter
Product name | 10 Dip Wireless RF Remote control |
Model | AG198 |
Button | 2 button |
Frequency | 315mhz ,433mhz |
Material | Plastic ABS |
Battery | 12V23A |
Warranty | 12 Month |
Distance | 50-100 meters(open space) |
Dimension | 90*30*12.5mm |
Main Technical Parameter
Frequency: 433.92 mhz / 315 mhz other customized
Encoding type: learning code, fixed code, rolling code
Learning code (1527,2240,HT6P20B,HT6P20D etc.)
Fixed code (2260,2262,2264,2272 etc.)
Hopping code (HCS301,HCS300,HCS200 etc.)
Transmission Distance: 50-100meters
Led light color: Standard Red ,Blue Other Yellow, Red, Green,Purple etc. can be optional.
Certification: CE ROHS
Warranty: 1 year
Learning Remote Way
Power On,press learning button,the learning indicator light it means entering learning state, press any button of the remote control transmitter signal in 7 seconds, indicator light flash 4 times then off, it means learning succeed.
Remark: This controller can learning many pieces remote control, if beyond the first remote automatic clear
Clear Remote Way
Press the learning button about 8 seconds, the leaning indicator from ON to OFF, it means clear succeed.
Packing
Standard packing :each one in a plastic bag or white box;
500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.
Shipping
1. We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post. You also can choose your own shipping forwarder.
2. We need 3-5 days to process the samples and 7-15 days process the goods after the payment arrived.
3. The buyers should be responsible for the import fees when goods arrived at the destination.
Our services
1). Your inquiry related to our products or prices will be replied in 12 hours
2). Well-trained and experienced staffs to answer all your enquires in fluent English
3). OEM & ODM, any your customized products we can help you to design and put into production
4). Protection of your sales area, ideas of design and all your private information
5). Deliver by air mail or ship for your orders
Trade terms
1). Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery
2). Samples can be delivered in 3-5 days
3). Shipping freight are quoted under your requests
4). Discounts are offered based on order quantities
5). FOB price are quoted under inquiry
Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.
1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C. CE& ROHS certification;
D. Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you.
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery.
4. Do your products carry warranty?
Yes, 12 month warranty.
