AG-C202 (12V)

Tel: + 86 152 2028 2294

Home >> Wireless Control Switch >> AG-C202 (12V)

Product Classification

AG-C202 (12V)

Publish time 2019-09-02 12:23

Product information

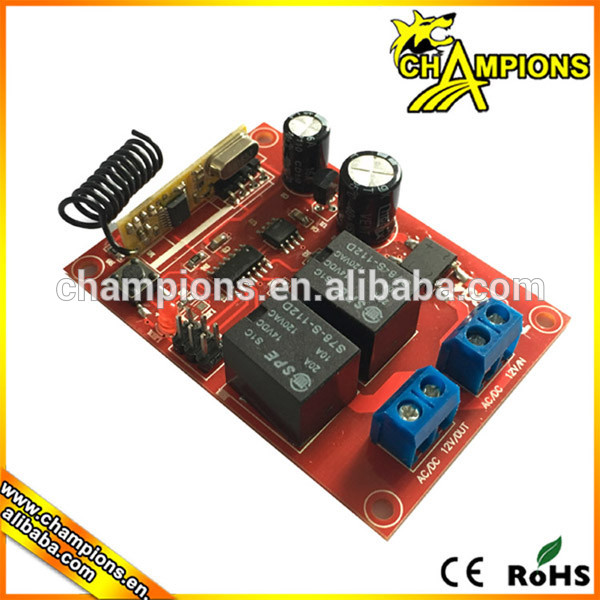

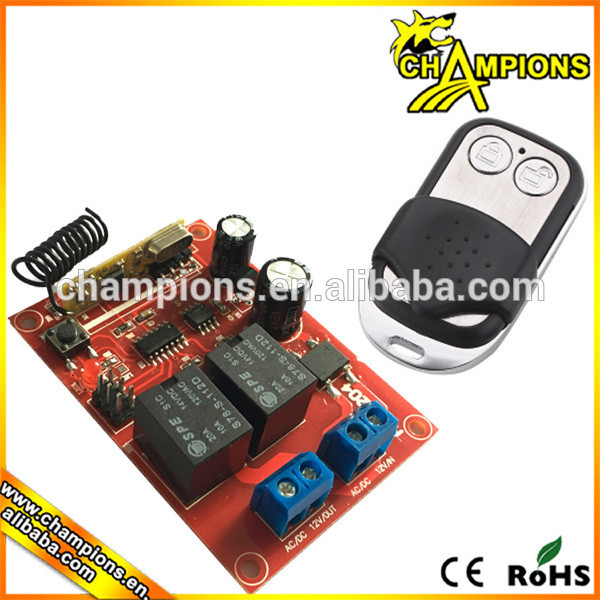

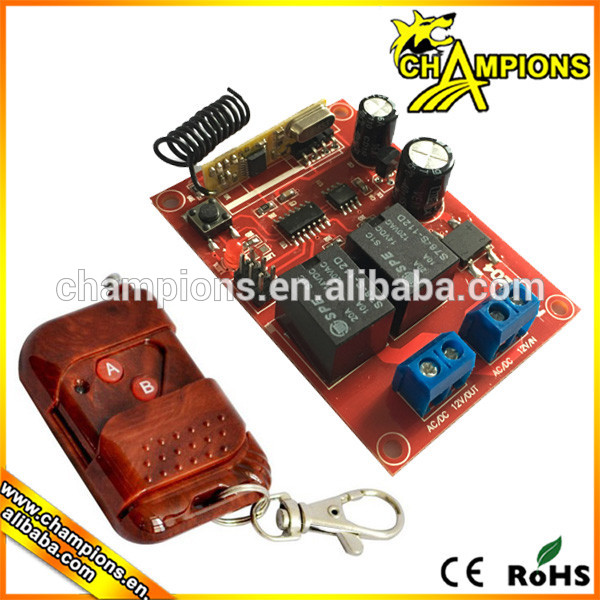

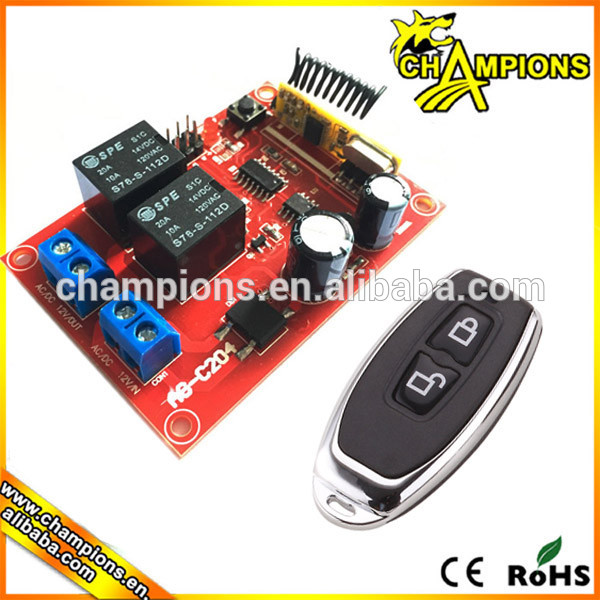

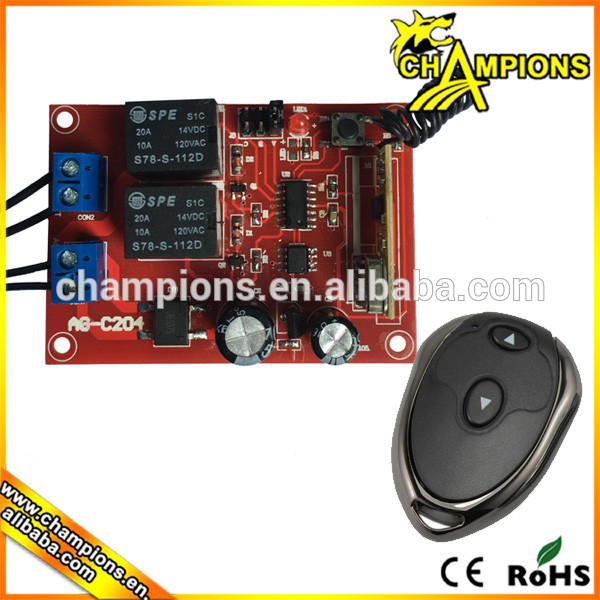

DC Motor controller switch, 12V motor forward and backward controller

Technical parameters

AG-C202 parameters

1. Working voltage: 12V /24V DC

2. Frequency: 433Mhz / 315Mhz

3. Receiving sensitivity: -115db

4. Encoding type: learning code, fixed code, rolling code

5. Working way: self-lock, interlock, inching

6. Max load: 10A

7 .Dimensions: 70*50*18mm

8. Learning remote way: learning mode

AG026 remote parameters
1. Frequency:315MHz / 433MHz
2. Working current:15mA
3.Working voltage:6V
4. Chip:2260 / EV1527
5. Modulation Mode: ASK
6. Quiescent current: 0uA
7. Range:80M
8. Size: 60.9mm*29.5mm*12.6mm

Learning Remote Control

A). Press controller board learning button one time, and at the same time press remote control first button, then the controller board learning indicator light flash, when the indicator light stop flash, it means the remote first button learning succeed.

B). Press controller board learning button two times, then press remote second button, controller board indicator light flash, when the indicator light stop flash, it means the remote second button learning succeed.

Clear remote control

Press controller board learning button about 10 seconds, it means the all remote is clear succeed

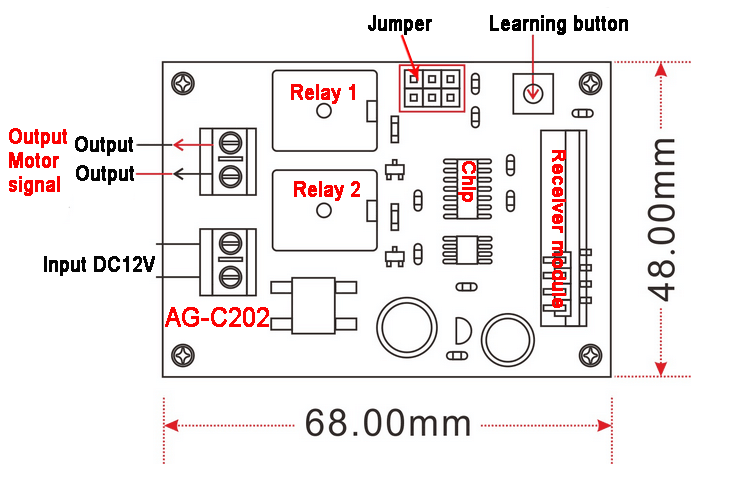

Wiring Method

Remote control can choose more model what you want we all can do for you.

Packaging & Shipping

Shipping
We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Packing

1. Each one in a plastic bag or white box
2. Carton sizeis 40*29*19CM

Our Services

1).Your inquiry related to our products or prices will be replied in 12 hours

2).Well-trained and experienced staffs to answer all your enquires in fluent English

3).OEM & ODM, any your customized products we can help you to design and put into production

4).Protection of your sales area, ideas of design and all your private information

5).Deliver by air mail or ship for your orders

FAQ

Before Order please confirm

1). What frequency you need, 315mhz or 433.92mhz or others ?

2). What voltage you need, is 12V DC ?

3). What function you need and where you will used ?

4). How many relay you need, one,two, four or more ?

5). You only need buy this switch control or need remote work with it too ?

Trade terms

1).Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery

2).Samples can be delivered in 3-5 days

3).Shipping freight are quoted under your requests

4).Discounts are offered based on order quantities

5).FOB price are quoted under inquiry
