AG-RX3
    Publish time 2019-09-09 16:44
AG-RX3
nice price adjustable frequency wireless super-regenerative receiver module

Product Key Features

1. Modulation Mode: AM

2. Sensitivity: -95dBm
3. Frequancy: 315MHz/433.92MHz/Other
4. Operation voltage: DC5V
5. Current: 2-3mA
6. Operating Temperature:-10℃~+60℃
7. Dimension: 30*14*8mm

Product Application

1. Garage door and gate openers

2. Remote controls

3. Remote fan and light control

4. Smart home system

5. Alarm and security system

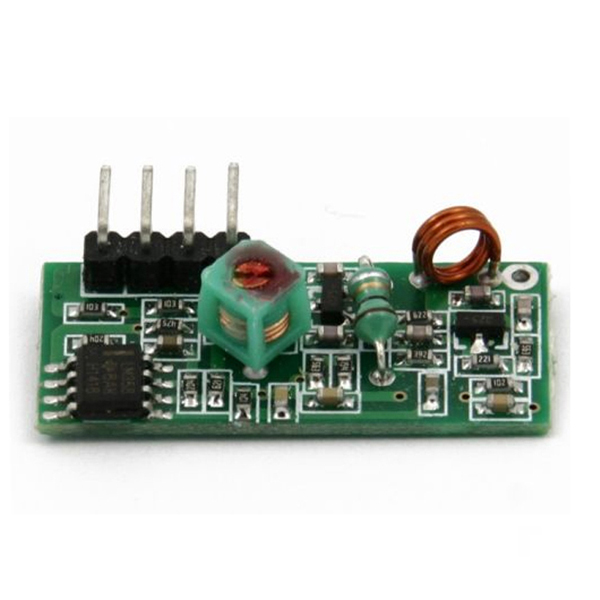

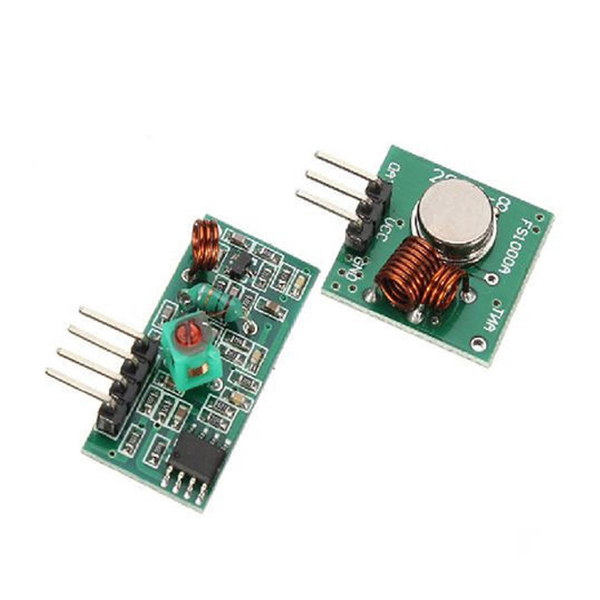

Pictures and for your reference, quality guarantee

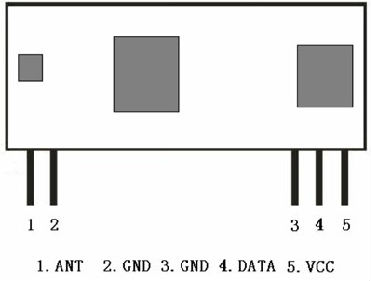

Pin

Name

Function

1

ANT

Antenna Input

2

GND

Ground

3

GND

Ground

4

DATA

Data Output

5

VCC

Positive Supply Power

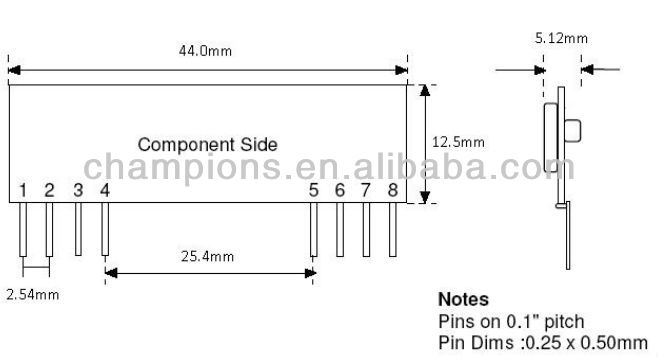

Mechanical Dimension



Electrical Characteristics

Condition: Ta=25°C Vcc=5.0V Frequency=433.92Mhz



Characteristics

Symbol

Condition

Value

Unit

Min

Typ

Max

Frequency

FC



433.82

433.92

434.02

MHz

Modulation Mode





ASK



Receiver Sensitivity



1K Kbps /50 Ω



-114



dBm

Data-rate







200



KHz

Start-up time

Ton







9

ms

Current

IRC







9.6

mA

Working Voltage





4.5

5.0

5.75

V

Image Rejection



412.52MHz



20



dB

Output

High Level



RL=500K

2.8

3.75

5

V

Output

Low Level L









0.5

V

Working Temperature





-30



+85

°C



Test Instrument

Oscilloscope, Function Generator, Power and test tool (tool with 5V power supply).



Test step

1). Use shielding wire connection Oscilloscope, Function Generator and Test tool.

2). Power on the device set oscilloscope and function generator parameters (frequency and sensitivity -105dBm).

3). Receiver board voltage signal in accordance with the above tolling pin inserted oscilloscope will appear above a standard sine wave, so for qualified products. If the wave shape shaking and no wave is defective products.

4). All the above steps to complete at the shielded room (outside have interference of radio waves affect the test standard).
