433mhz small size ASK rf wireless superheterodyne transmitter module,
low cost high sensitivity receiver transmitter module

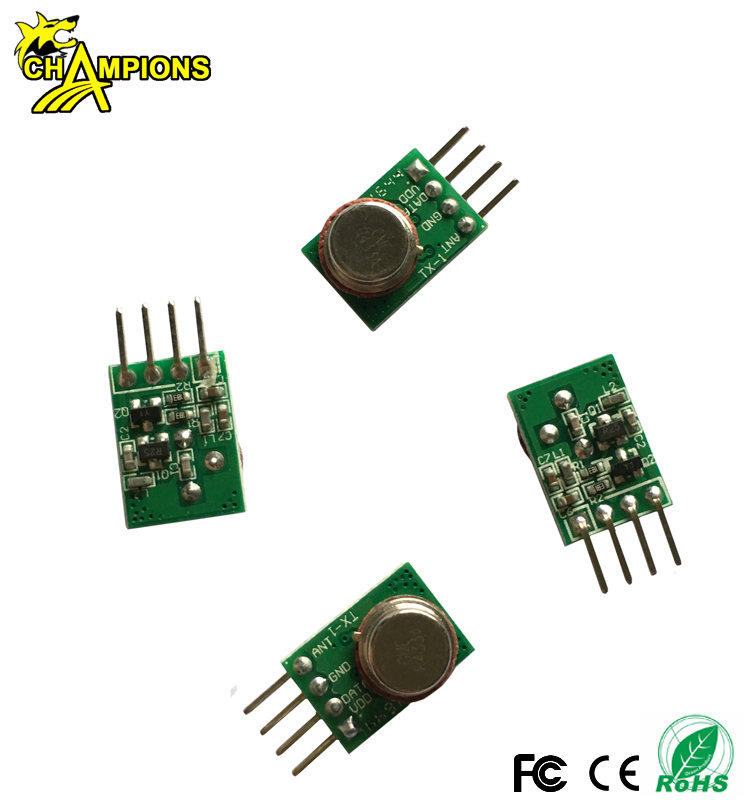

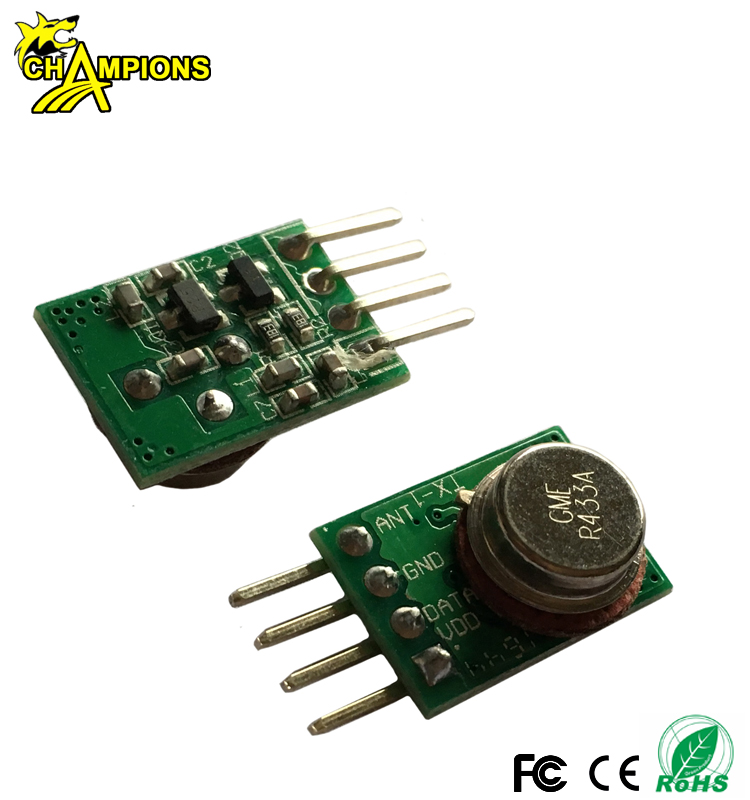

AG-TX1 is an ASK transmitter module, the result is excellent performance in a simple to use. It is designed
specifically for remote control, wireless mouse and car alarm system operating at 433MHZ.
Key Features
1). The range can be up to 300-500m matching with RXB8 and RXB9 receiver
2). Operation voltage: VCC= 3 to 15V
3). Frequency: 315MHz/ 433.92MHz(others are available)
4). High output power: 10dBm
5). Frequency tolerance: ±75KHz
6). Current: 10mA
7). Operating temperature: -20℃ ~+60℃
8). Small size with size of PCB: 11*16*5.5mm
9). Bit rate: <3kbps
10). Circuit shape: PLL

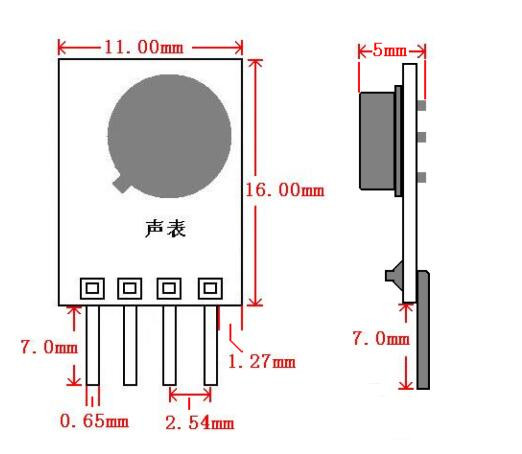

Mechanical Dimension

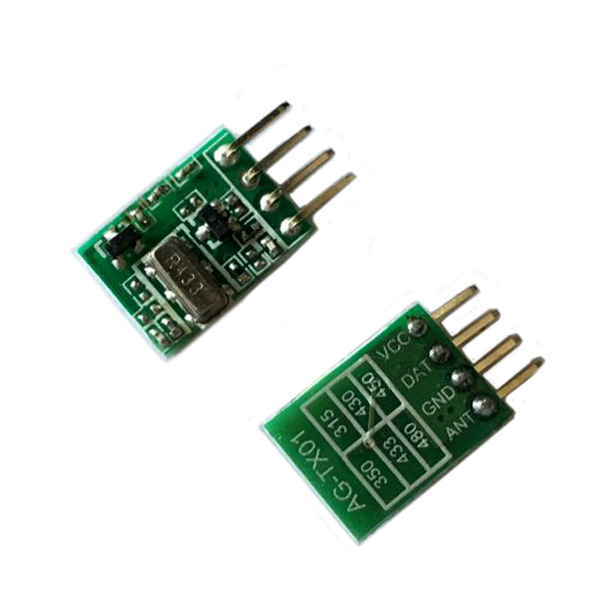

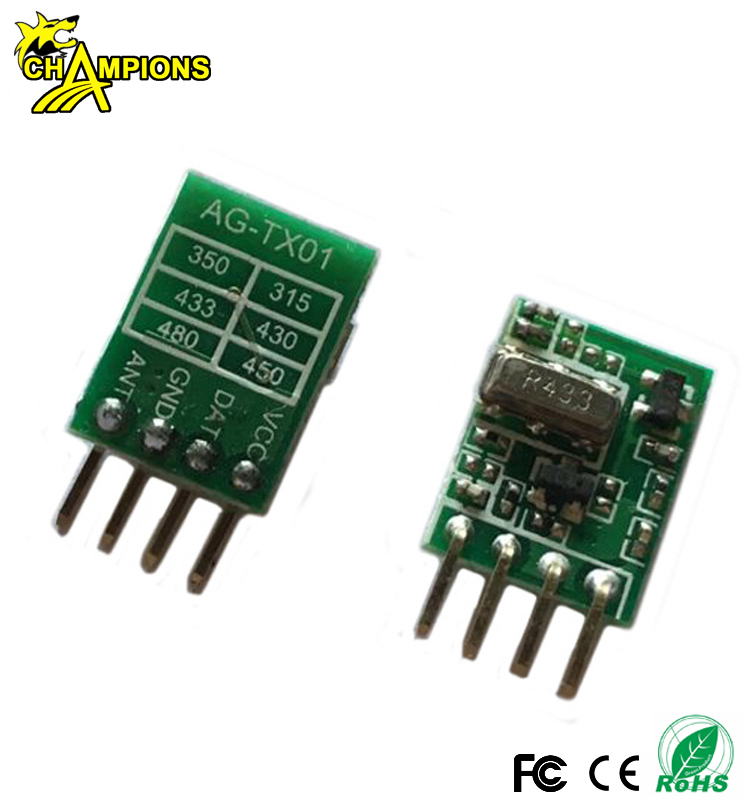

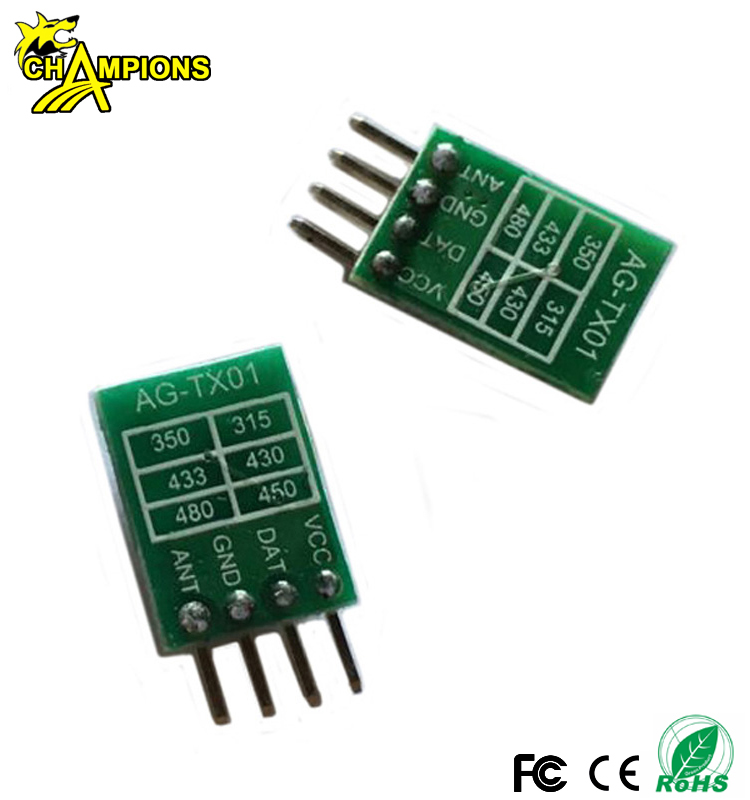

Pin Assignment
| Pin | Name | Function |
| Pin 1 | ANT | Antenna In |
| Pin 2 | GND | Ground |
| Pin 3 | DATA | Data connected to MCU |
| Pin 4 | VDD | Positive supply power |
Product Application
1). Remote gate controls
2). Remote keyless entry
3). Car alarm systems
4). Wireless security systems
5). Automation systems
