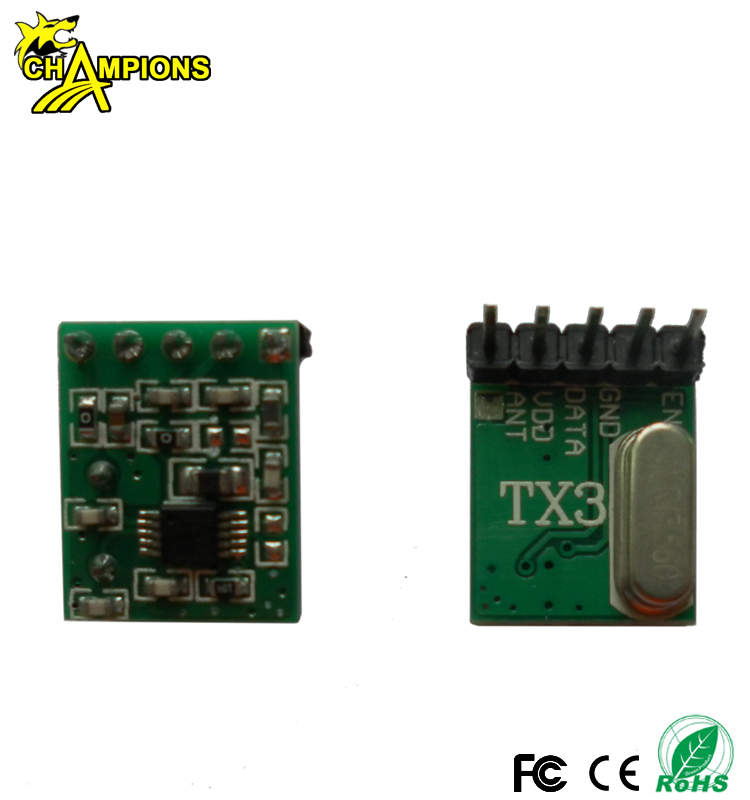

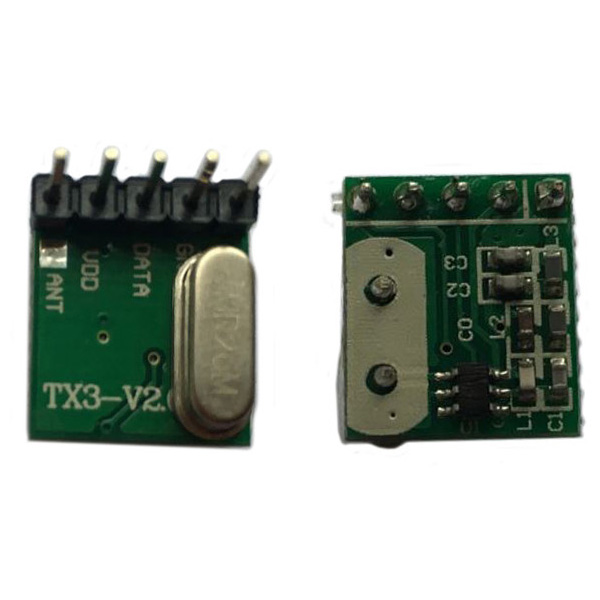

FSK 315/433mhz rf wireless transmitter module, long distance transmitter module with 5 pins

General Description

The AG-TX3 has these advantages of small size,low operating voltage range (down to 1.8V),high transmitting power,low power

consumption,and stable operating function,which adopting the MD technique,the advanced crystal based(PLL) on frequency

stabilization techniques.It is a easy design for using between ASK and FSK modulation which mode is selected by a resistor

on the PCB board.

 Key Features

1). Frequency: 315MHz/ 433.92MHz(others are available)

2). High output power: 10dBm

3). Low operation voltage: VCC= 1.8 to 3.6V

4). Low power cosumption:Icc=6.3mA(FM mode,Vcc=5.0 V@434MHz)

5). Low standby:<1uA

6). Easy for application

7). Fast starttime<1ms

8). Frequency deviation: ±50KHz

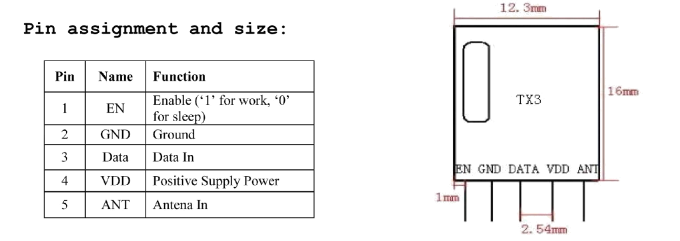

9). Small size with size of PCB: 12*16*5.5mm

10). Circuit shape: PLL


Product Application

1). Remote gate controls

2). Remote keyless entry

3). Car alarm systems

4). Wireless security systems

5). Automation systems



Packaging & Shipping



Skin packing, 3584pcs in carton, size of carton: 40*29*24CM

The packing is configurable on customer demands.


We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder


Our Services

1. Your inquiry related to our products or prices will be replied in 12 hours.

2. Well-trained and experienced staffs to answer all your enquires in fluent English.

3. Discounts are offered based on order quantities .

4. Samples can be delivered in 3-5 days.


Trade terms
1). Payment: T/T only ,30% deposits before production,70% balance to be paid before delivery
2). Samples can be delivered in 3-5 days
3). Shipping freight are quoted under your requests
4). Discounts are offered based on order quantities
5). FOB price are quoted under inquiry
