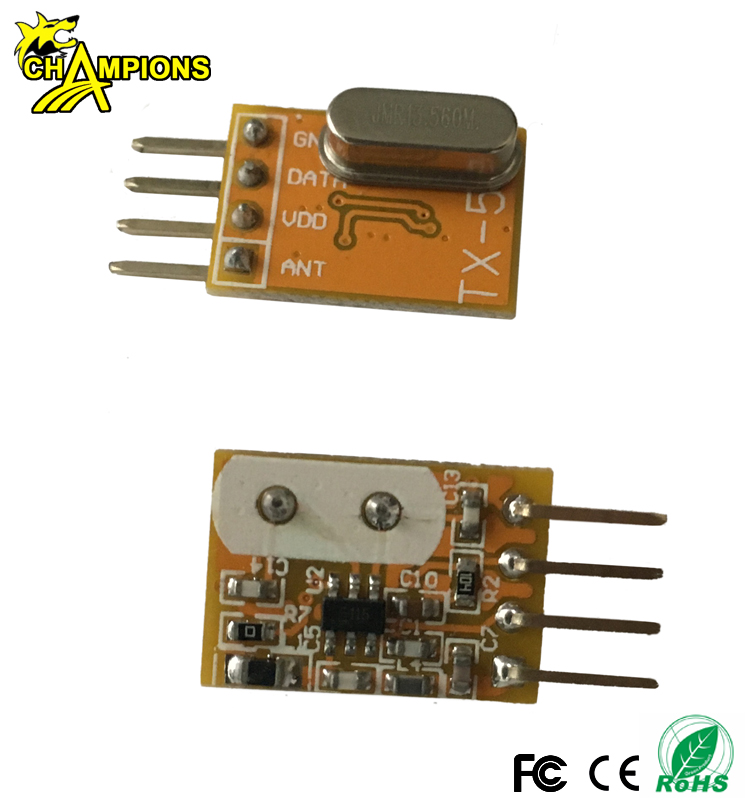

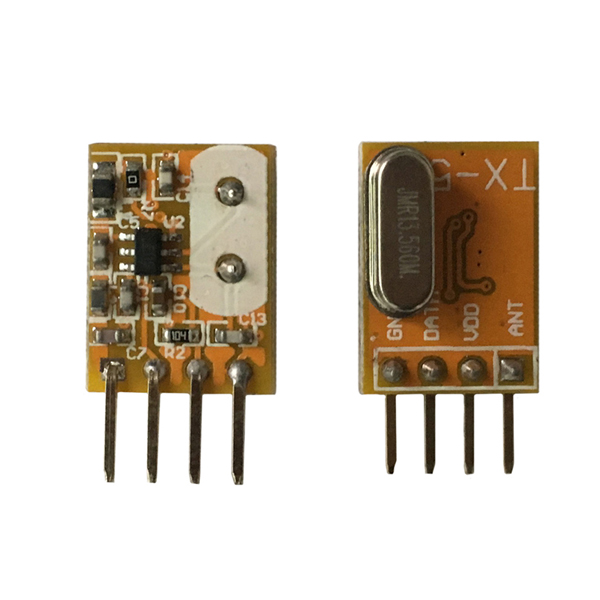

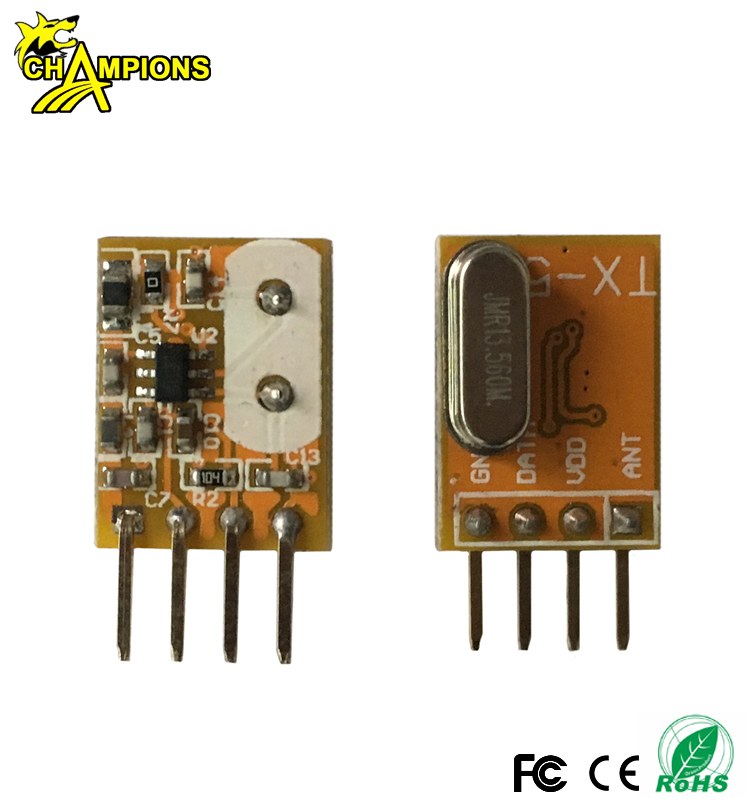

General Description

The AG-TX5 is an ASK transmitter module.The result is excellent performance in a simple-to-use,the TX5 is designed specifically for remote control,wireless mouse and car alarm system operating at 315MHz.

Key Features

1). The range can be up to 300-500m matching with RXB8 receiver

2). Operation voltage: VCC= 1.8 to 3.6V

3). Frequency: 315MHz/ 433.92MHz(others are available)

4). High output power: 10dBm

5). Frequency tolerance: ±50KHz

6). Current: 10mA

7). Operating temperature: -40℃ ~+80℃

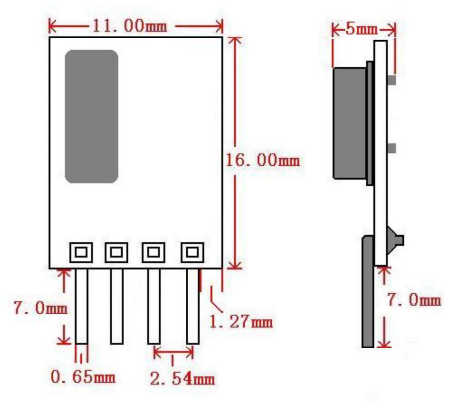

8). Small size with size of PCB: 11*16*5.5mm

9). Bit rate: <3kbps

       10). Circuit shape: PLL

Product Application

1). Remote gate controls

2). Remote keyless entry

3). Car alarm systems

4). Wireless security systems

5). Automation systems
