220V 80A relay Remote controller White Receiver 433 MHz and Wireless RF Remote Control Switch
    Publish time 2021-11-03 08:17
220V 80A relay Remote controller White Receiver 433 MHz and Wireless RF Remote Control Switch
Product Description

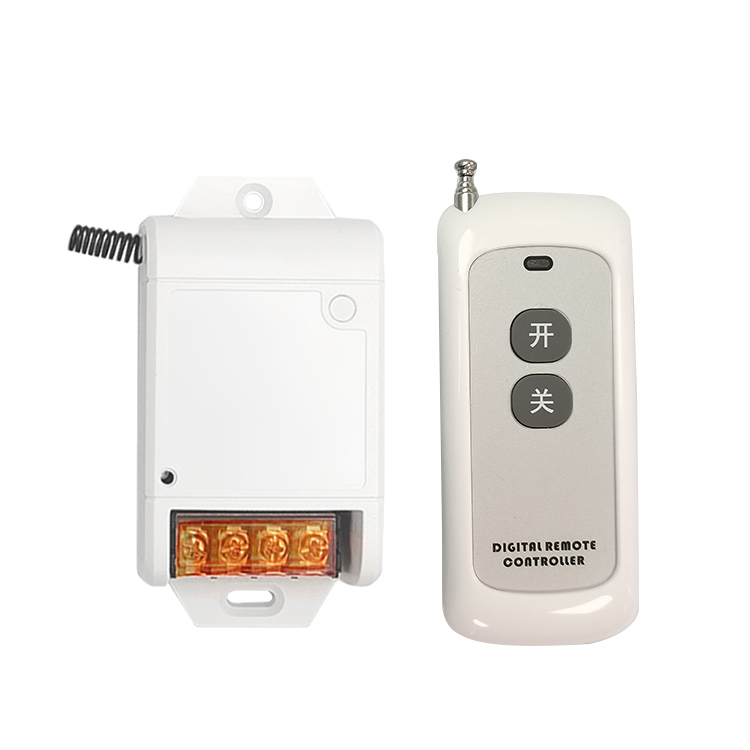

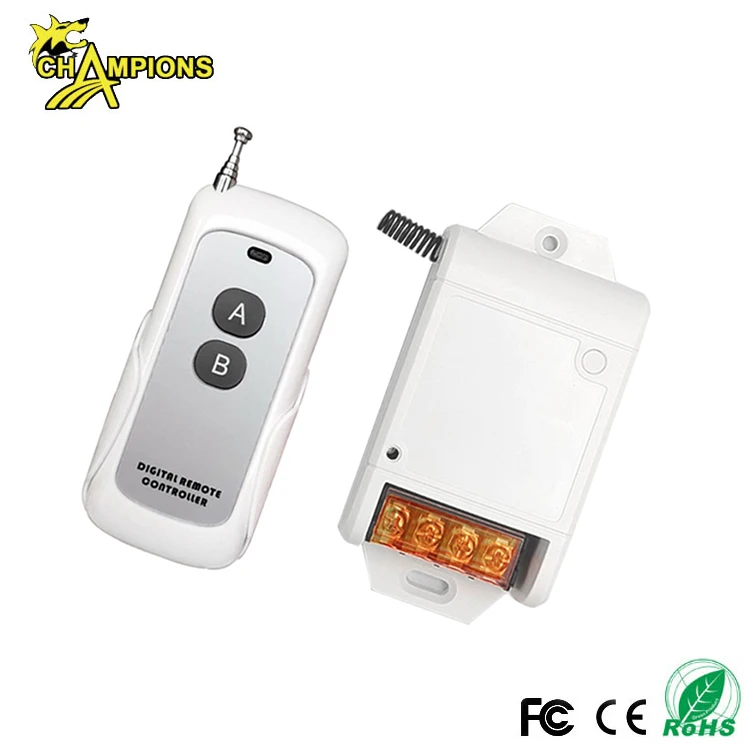

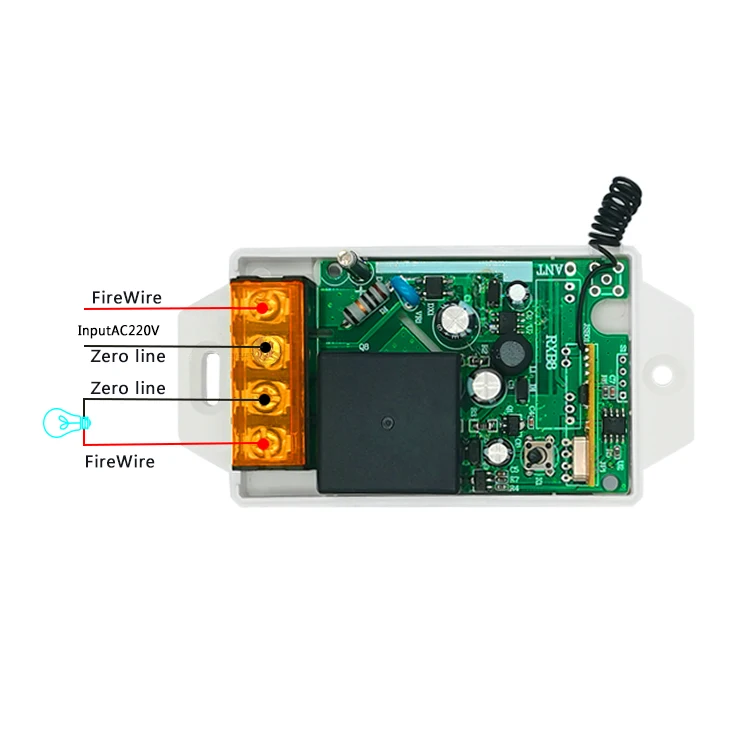

220V 80A relay Remote controller White Receiver 433 MHz  and Wireless RF Remote Control Switch Transmitter

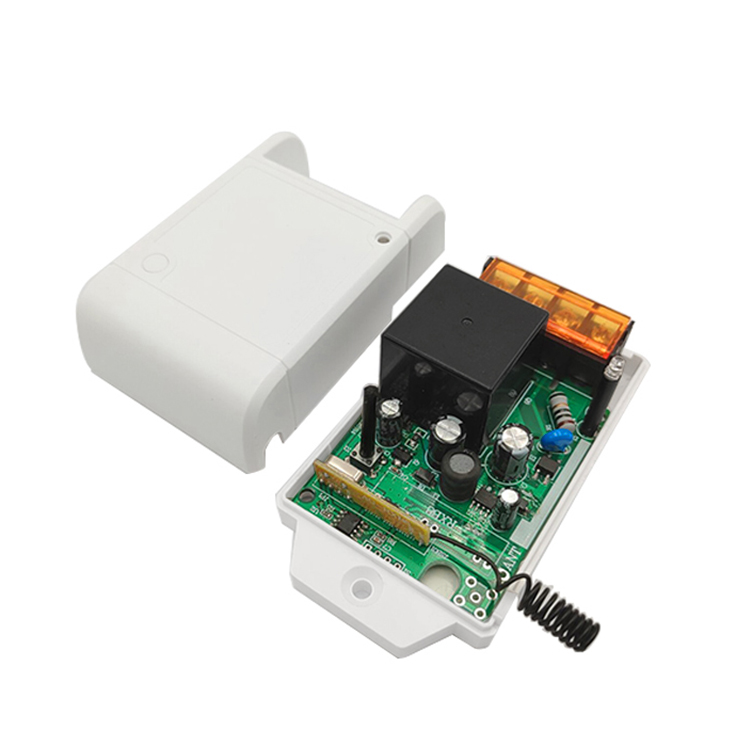

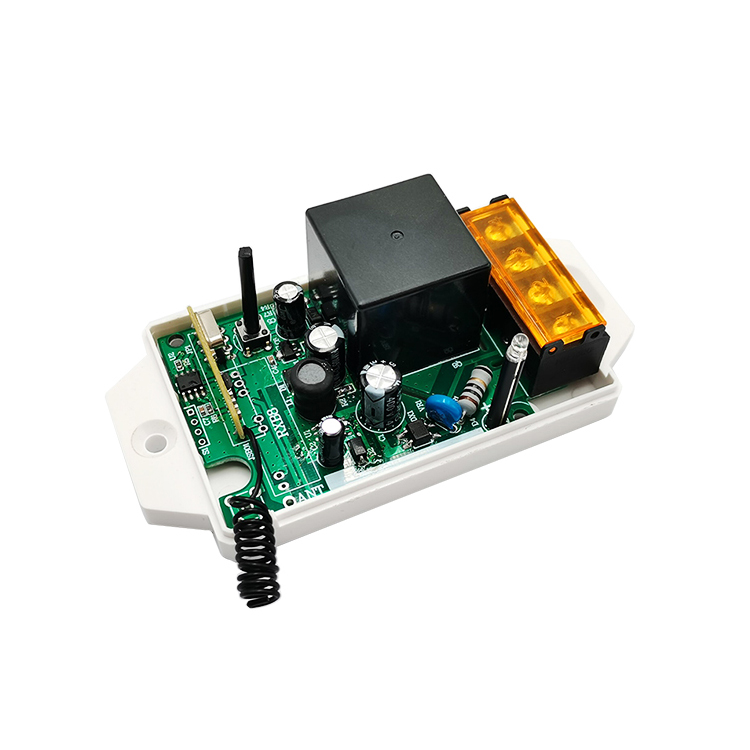

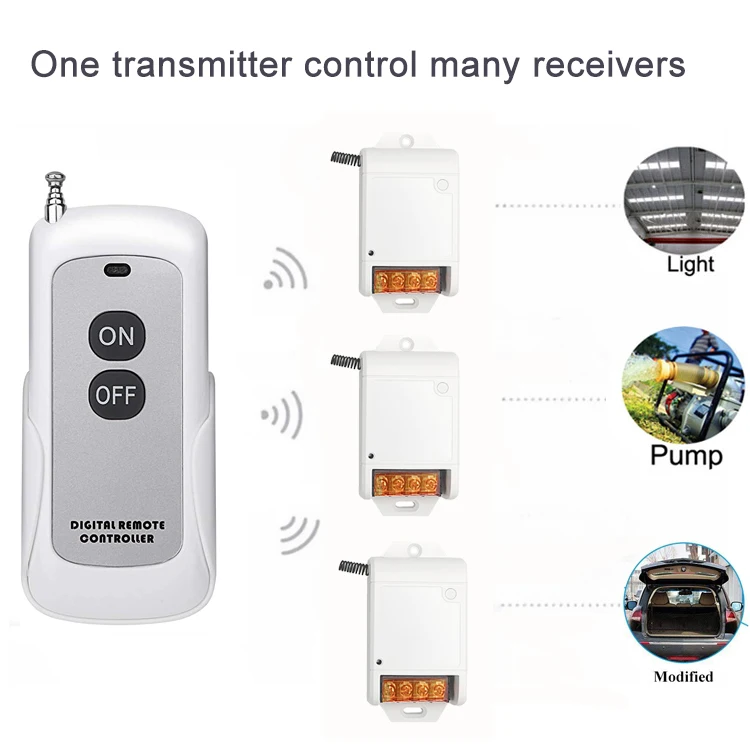

This item AG-C121 has 1 relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 10pcs different remote controls.

Product name

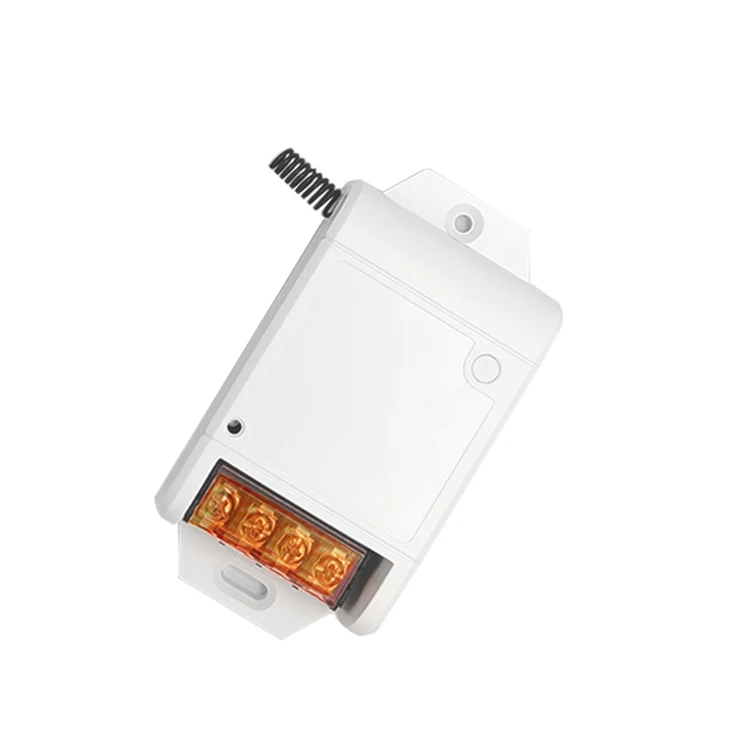

Remote Control Switch Receiver
Model
AG-C121
Frequency
433MHZ/315MHZ
Encoding type
Learning code,Fixed code
Channel
1 Channels
Working voltage
85V~265VAC
Output current
 ≤80A
Working mode
Momentary, Toggle, Latched  delay time (5S/10S/15S/20S)
Learning remote way
learning mode
Receiving sensitivity
≥-100dB
Board size
103*56*34mm

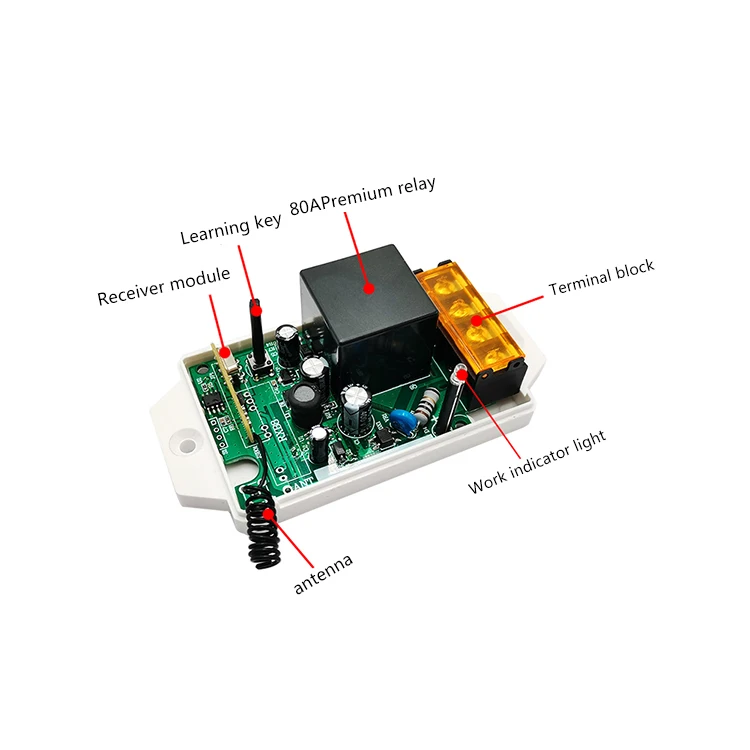

Learning remote control:
Momentary mode learning method:
Press the learning code on the control panel 1 time, the LED indicator flashes once, and then press the remote control button that needs to be matched after the LED indicator is off. The LED indicator on the control panel flashes three times in succession.
Toggle learning method:
Press the learning code of the control board 2 times in succession, and the LED indicator flashes twice. After the LED indicator turns off, press the remote control button that needs to be coded. The LED indicator of the control board flashes 3 times in succession.
Latched learning method:
Press the learning code of the control board 3 times in succession. The LED indicator flashes 3 times. After the LED indicator is off, press the remote control button that needs to be coded. The LED indicator of the control board flashes 3
times.
Delay time 5 seconds learning method:
Press the control panel code matching button 4 times in succession. The LED indicator flashes 4 times. After the LED indicator is off, press the remote control button that needs to be coded. The control panel LED indicator flashes 3 times in
succession.
Delay time 10 seconds learning method:
Press the control panel code matching button 5 times in succession. The LED indicator flashes 5 times. After the LED indicator is off, press the remote control button that needs to be coded. The control panel LED indicator flashes 3 times in
succession.
Delay time 15 seconds learning method:
Press the control panel code matching button 6 times in succession. The LED indicator flashes 6 times. After the LED indicator lights up, press the remote control button that needs to be coded. The control panel LED indicator flashes 3 times in succession.
Delay time 20 seconds learning method:
Press the learning code of the control board 7 times in a row, the LED indicator flashes 7 times, and after the LED indicator is off, press the remote control button that needs to be coded. The LED indicator of the control board flashes 3 times in
succession.

If you want to change the mode, please clear the code:
Press the learning button on the control panel for 8 seconds and the LED light flashes 3 times, that is, all the remote controllers for learning the code are automatically cleared. After it is cleared, the remote controller that has learned the
code before will no longer be controlled.
Packing & Delivery

Packing

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

Delivery

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

Our Service

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Trade terms

1).Payment:T/T, Paypal and western union, other payment terms can negotiable
2).Bulk order 30% deposits before production,70% balance to be paid before delivery
3) .Samples can be delivered in 3-5 work days
4) .Shipping freight are quoted under your requests
5) .Discounts are offered based on order quantities
6). FOB price are quoted under inquiry

Our Company

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

Certifications
FAQ

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
