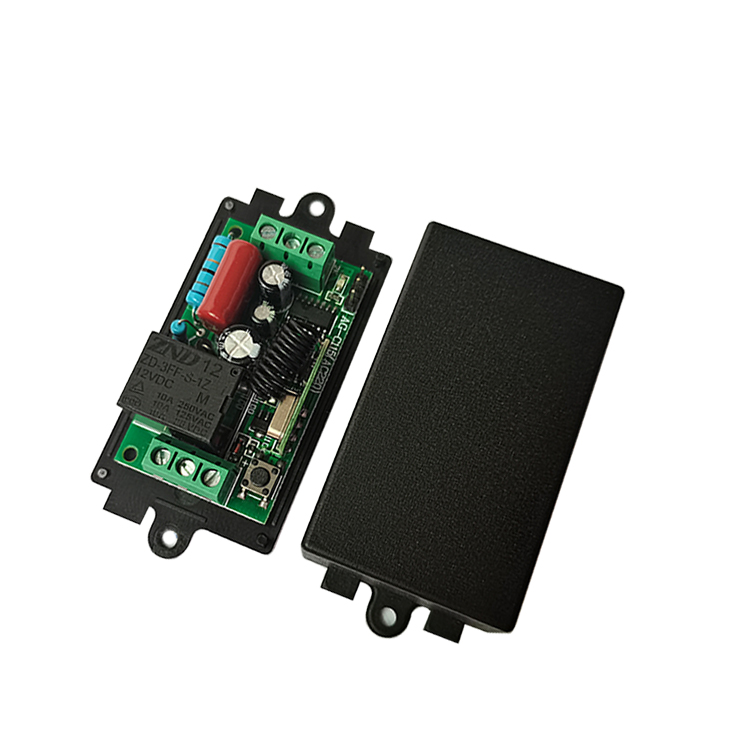

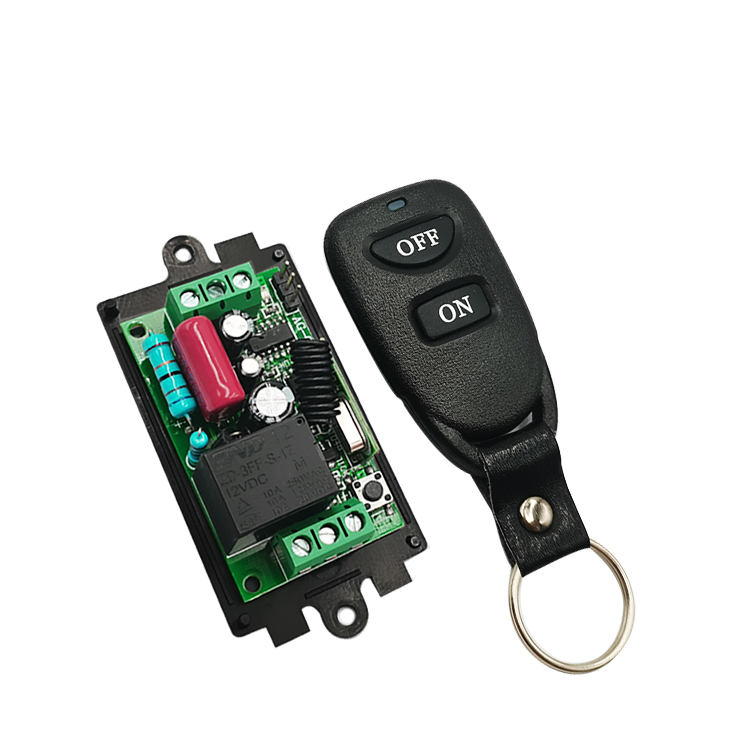

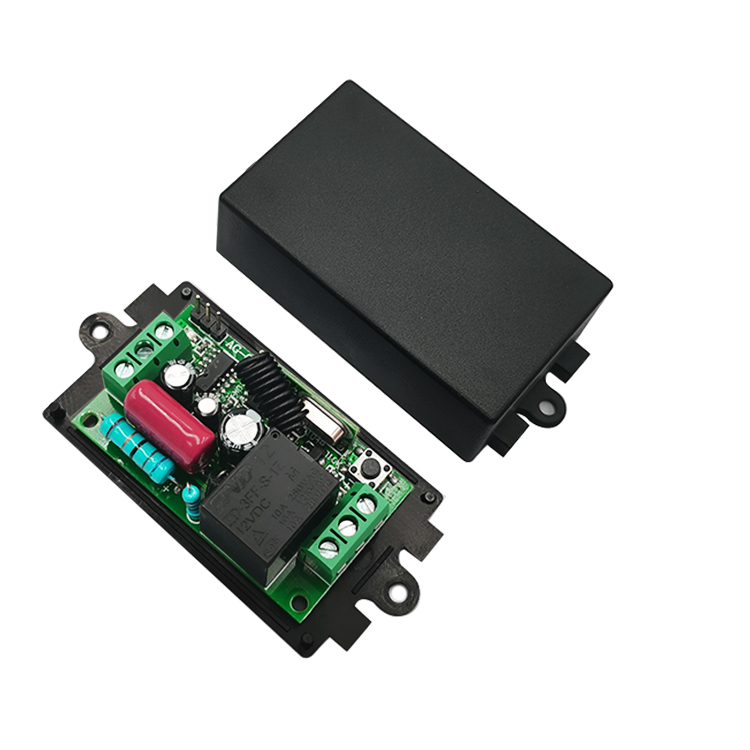

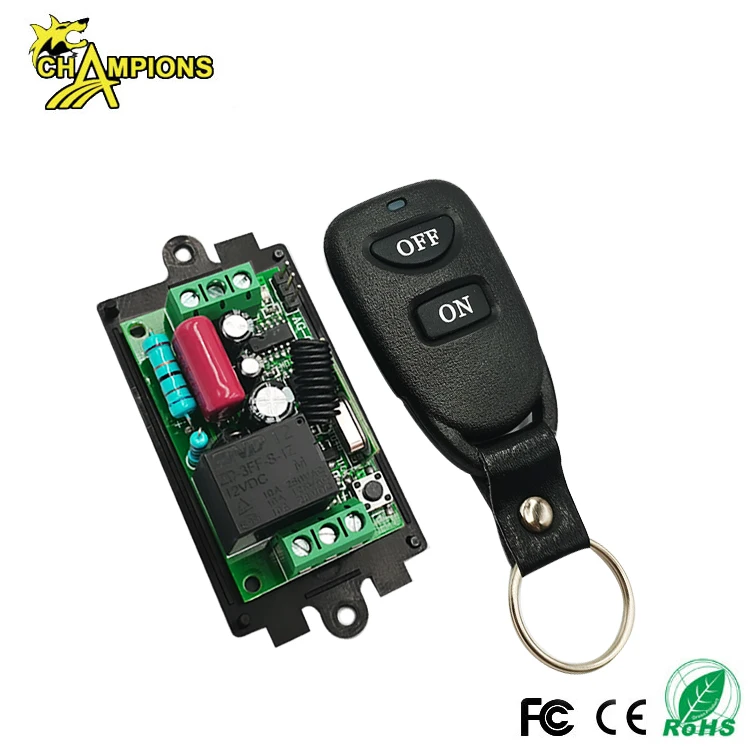

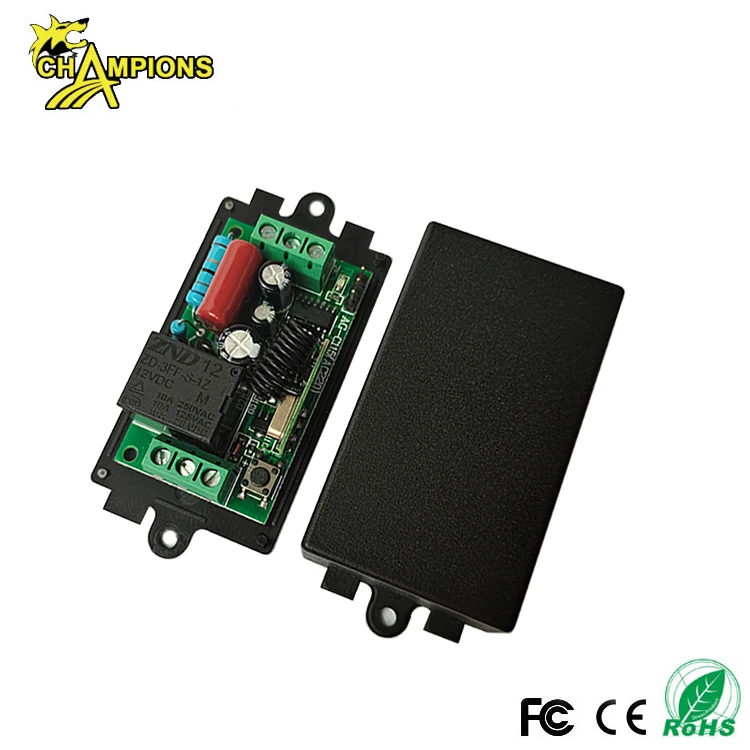

433MHz Wireless Remote Control Switch AC 220V 1CH RF Relay Receiver and Transmitter for Electric Appliance Power On/Off

This item AG-C115 has 1 relays which can make the equipment turn or reverse, on/off and so on come true. Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance. It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc. It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 10pcs different remote controls.

RF Frequency: 433MHZ/315MHZ
Working Voltage: AC 220V
Working emperature:-20℃- +70℃
Working Current: 6MA
RF Working Mode: Super heterodyne receiver
Receiver Sensitivity: -105 dBm
Remote Control Distance: 50-100 meter(in open environment)
Support remote control type: learning code,Fixed code

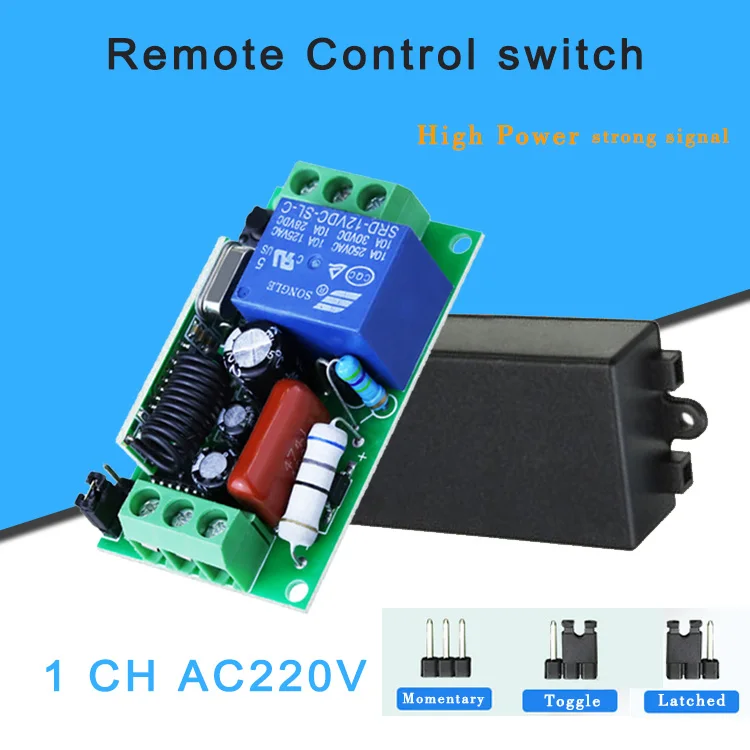

Multiple working modes: (Latched, Toggle, Momentary)

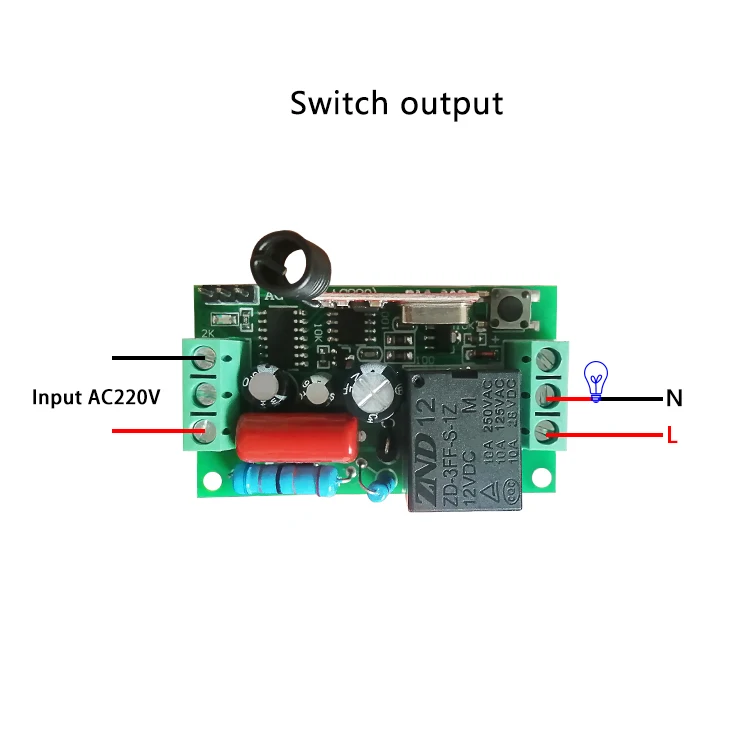

Output : output with switch signal / output with voltage

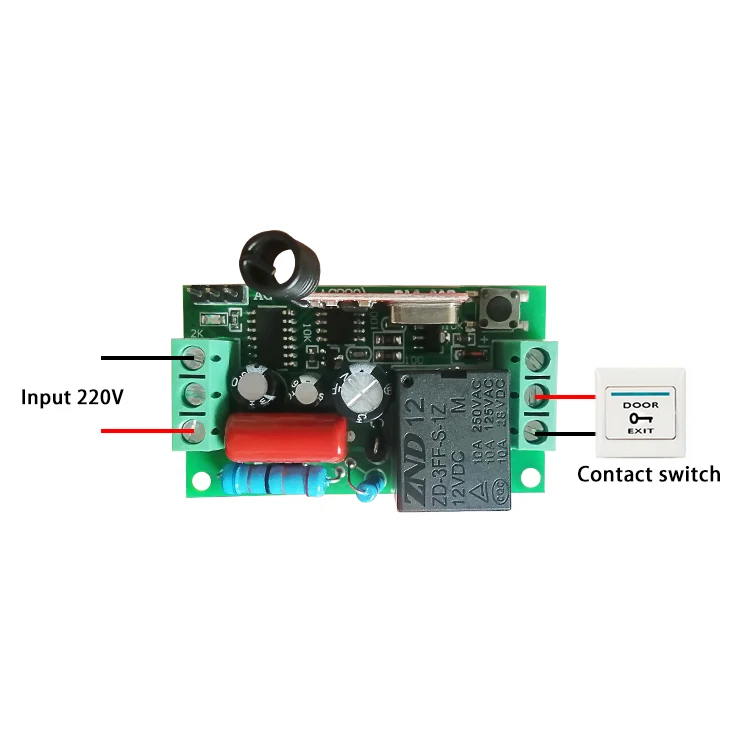

Wiring Method: Adjustable wiring terminal
Output Current: 10mA

Features:
It has 1 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2260 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 10pcs different remote controls.

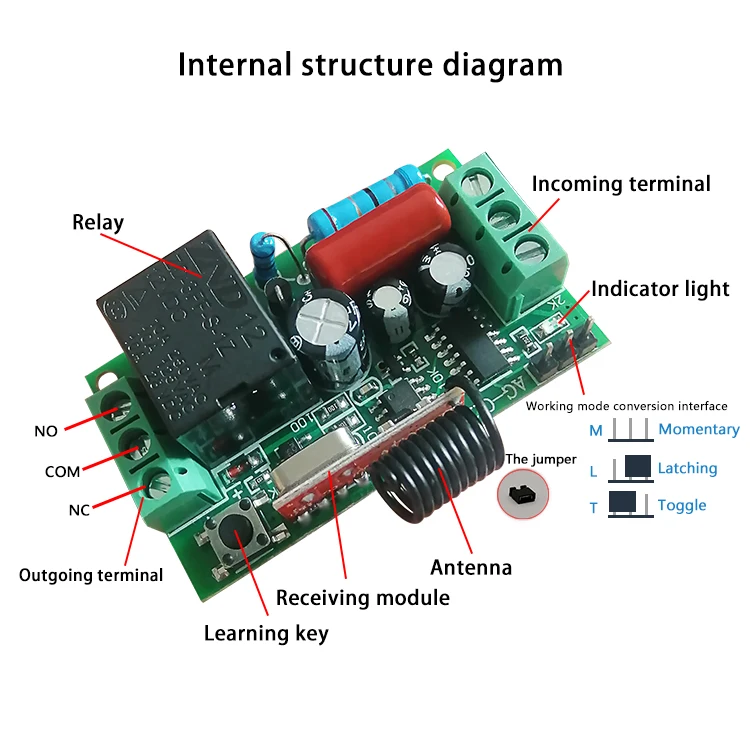

The working way can change by jumper

A).Inching:Position1,2,3 vacancy, no need jumper connect

Inching function: Press remote A button the controller relay1 ON, release remote A button the controller relay 1OFF

B).Interlock:Jumper connect2,3

Interlock function: Press remote A button thecontroller relay1 ON, press remote B buttonthe controller relay 1OFF, relay2 ON

C). Self-lock: Jumper connect 1, 2

Self-lock function: Press remote A button the controller relay1 ON, Press A button again the controller relay1 OFF
Learning Remote Way

Power On,press learning button,the learning indicator light then off it means entering learning state, press any button of the remote control transmitter signal in 6 seconds,indicator light flash 4 times then ON, it means learning succeed. Remark: This controller can learning many different remote control, if beyond the first remote automatic clear

Standard packing :each one in a plastic bag or white box;

500 pieces in a carton, one carton weight is 12KG, carton size is 40*29*24CM . Packing can be customized.

We have strong cooperation with DHL,TNT,UPS,FEDEX,EMS,China Air Post.
You also can choose your own shipping forwarder.

1).Accept OEM & ODM
2).Sample for testing could be arranged
3).Print logo on the case and pakage
4).Deliver by air mail or ship for your order
5).Your inquiry related to our products or prices will be replied in 12 hours

Shenzhen champions Technology Co., Ltd. it is a new high-tech electronics companies, the company is committed to electronic product development, production and sales service, to create a series of wireless remote control, wireless receiver module , wireless controller , smoke detector , gas detection , wireless infrared and radio detection , door , home burglar alarm, vehicle control and alarm and so on .
Companies adhere to the customer focus, quality first, reputation first approach, in strict accordance with the requirements of production and management of ISO9001 international quality management system, providing customers with a full range of "zero defect" products and quality service.

1 .What are the advantages of your company?
A .We have our own factory and we are tarding many years;
B. Meet the requirements of the quantity OEM & ODM order available;
C.CE& ROHS certification;
D.Offer samples to test.
2. How can i know this model work for me ?
If you have a model in hand, please take a clear picture of the PCB board send to us then we will help you .
3. How long can the remote control use ?
ln generally the remote control can be used for many years Only need to replace the battery .
4. Do your products carry warranty?
Yes, 12 month warranty.
