DC 12V 3CH RF Relay Momentary mode with delay time ON/OFF remote control Receiver +Trasmitter
    Publish time 2021-11-03 11:46
DC 12V 3CH RF Relay Momentary mode with delay time ON/OFF remote control Receiver +Trasmitter

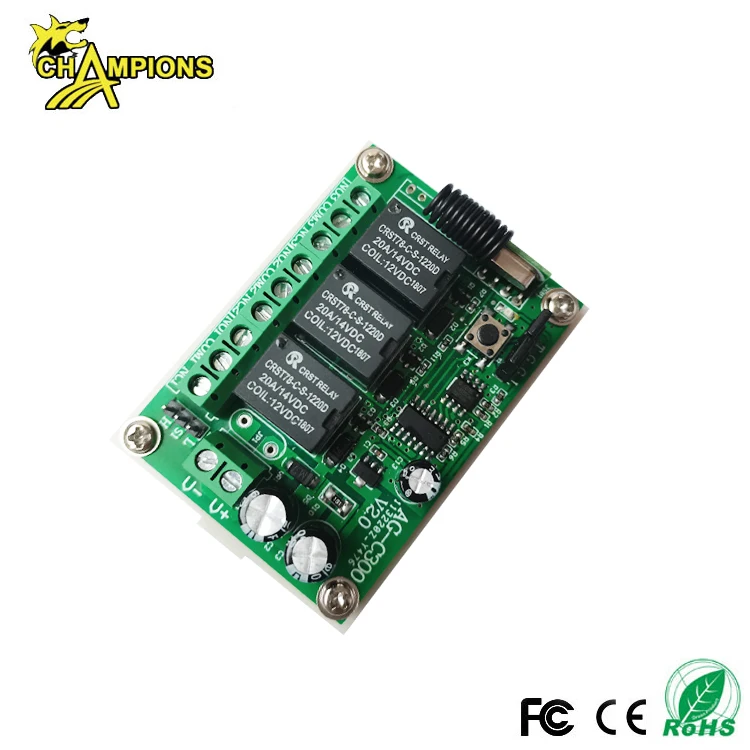

DC 12V 3CH RF Relay Momentary mode with delay 2s time ON/OFF remote control Receiver +HT6P20D Transmitter AG-C301
Product Description
Specification:
Working Voltage
DC12V
Output Current
≤10A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Jog (delay 2S), self-locking
Modulation Mode
ASK
Matching Mode
Learning code HT6P20D chip
Output Mode
Dry contact/Output voltage
Working temperature
-40℃- +80℃
Dimension
74*54*29mm
Transmitting Distance:
50-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.

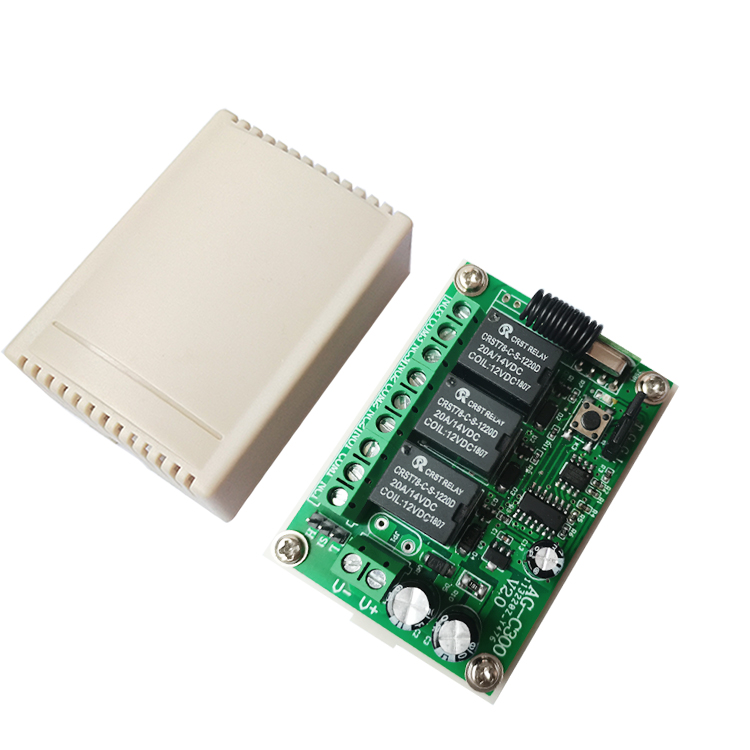

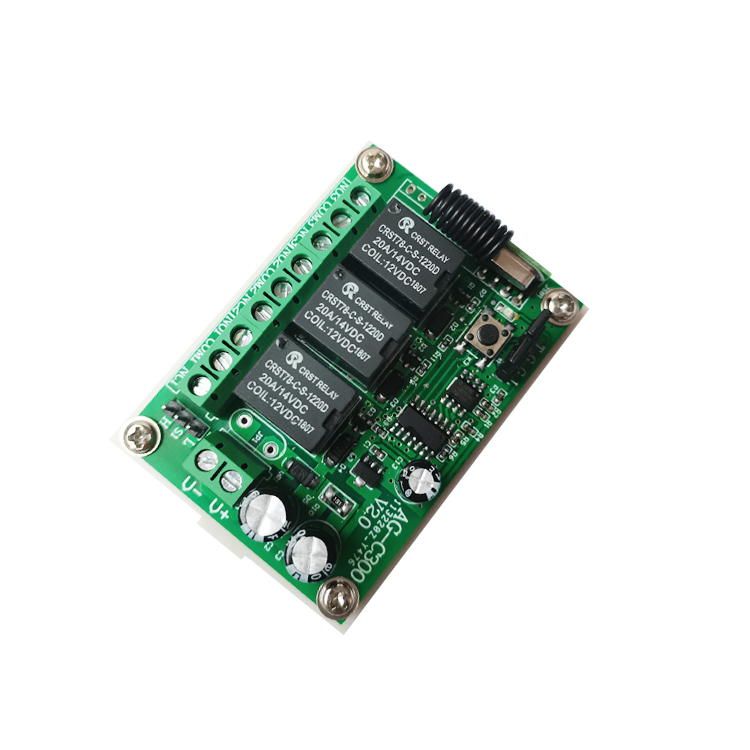

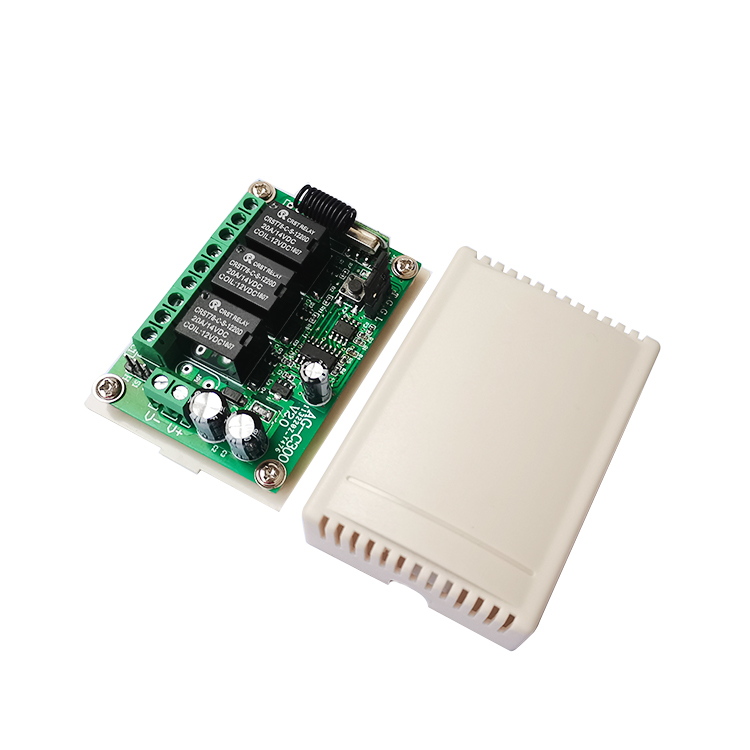

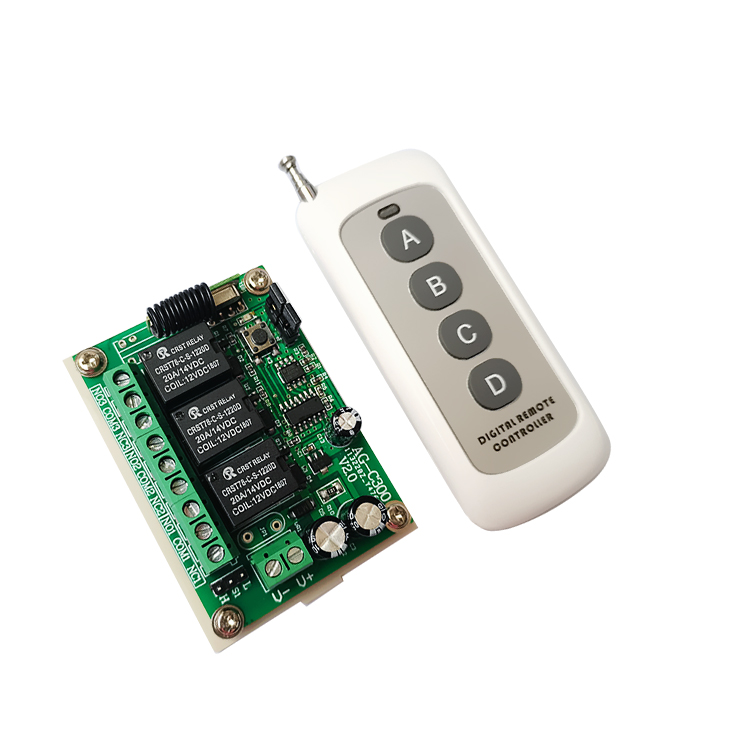

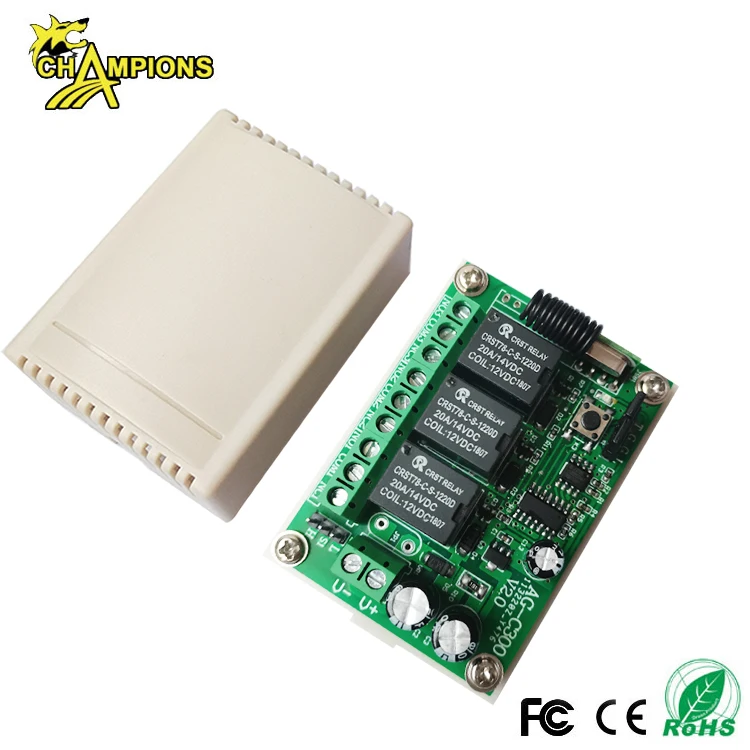

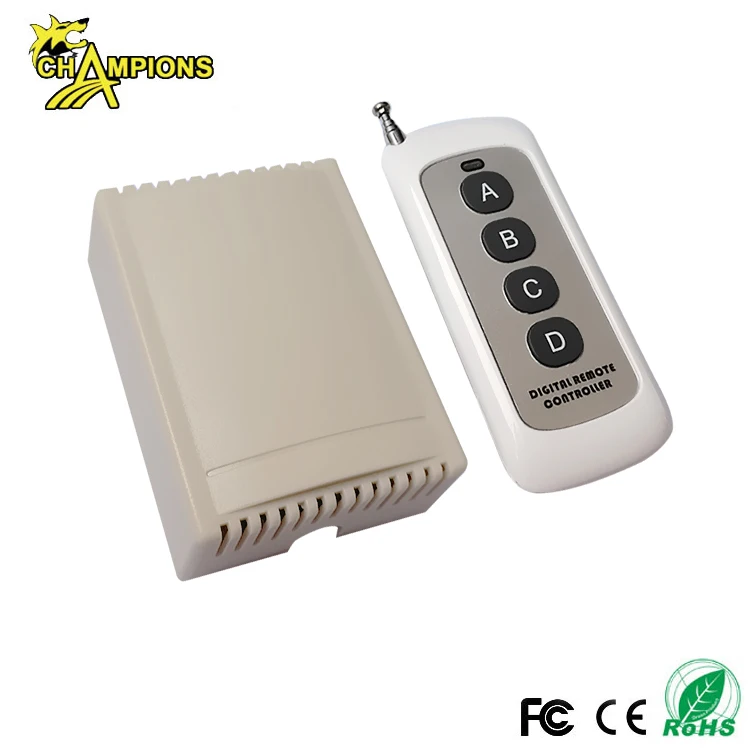

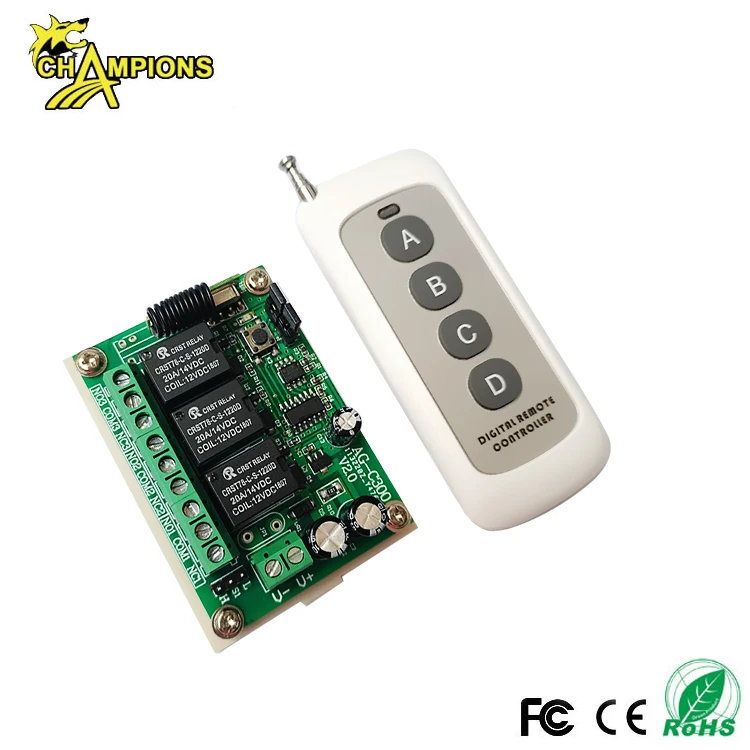

Photos

Features:

It has wireless 3 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15 pcs different remote controls.
Working mode:
Learning mode matching method:First complete the code clearing, short press the learning button once, with the LED light changing from constant bright to constant dark, press any button on the remote control, the LED blinks 4 times and then stays bright, the code is successfully configured, learn once, three The buttons can be controlled.

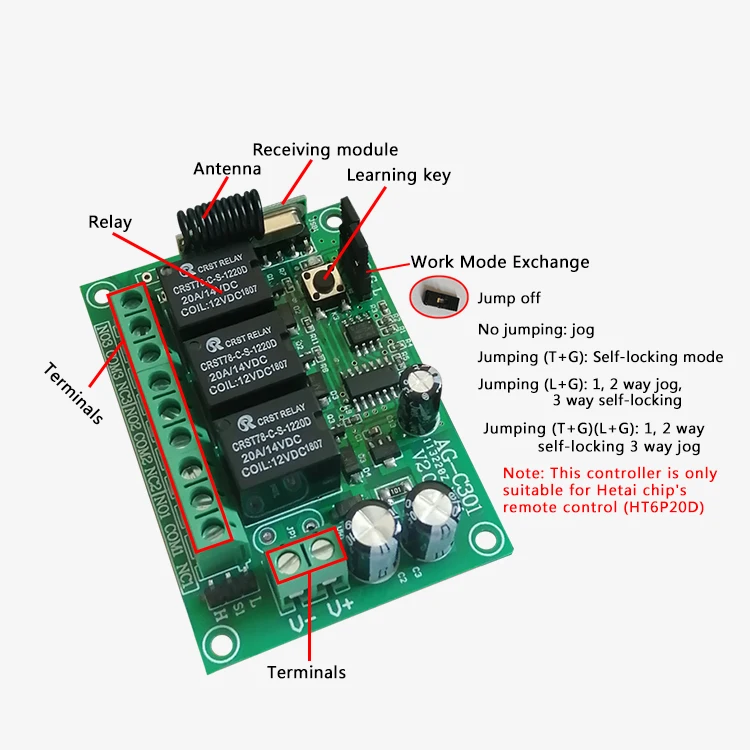

★Note: A. This controller is only suitable for the remote controller of HeTai chip (HT6P20D) B. No jumper cap: Jog delay 2S mode Jumper cap (L+G): 1,2 road jog delay 2S; 3 road self-locking mode    Jumper cap (T+G): self-locking mode Jumper cap (T+G and L+G): 1,2 self-locking; 3-way jog delay 2S mode
Clear Code:Power on, and then clear the code. Press and hold the learning button on the control panel for 8 seconds and the LED light will flash 3 times and then be steady on, that is, all the remote controllers that have learned the code will be automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
