AC/DC12V 2CH RF Relay Smart Wireless Remote Control Light Switch Garage Door Opener AG-C202
    Publish time 2021-11-03 11:51
AC/DC12V 2CH RF Relay Smart Wireless Remote Control Light Switch Garage Door Opener AG-C202
AC/DC12V 2CH RF Relay Smart Wireless Remote Control Light Switch Garage Door Opener AG-C202
Product Description
Specification:
Working Voltage
DC12V/AC12V
Output Current
≤10A
Working Frequency:
315MHZ,433mhz
Receiving Sensitivity
-100db
Function option
Jog, jog delay, interlock
Modulation Mode
ASK
Matching Mode
Intelligent Learning code
Output Mode
Output voltage
Working temperature
-40℃- +80℃
Dimension
74*54*29mm
Transmitting Distance:
50-100 Meter(open space)
Certification:
CE, ROHS
Scope of Application:
Family mall anti-theft alarm system; All kinds of doors and windows electric car, car, motorcycle alarm,controller and other industrial control.
Photos

Features:

It has wireless 2 relays which can make the equipment turn or reverse, on/off and so on come true.
Strong signal which can pass through walls, floors and doors, control receiver from any place within a reliable distance.
The volume is small and the performance is stable and reliable, high receive sensitivity.
It covers application ranging from like auto door, window, lifting equipment, entrance access, to security etc.
It can learn 2272 2262 or 1527 chip with the different code wireless 433MHz/315MHz remote control.
it can learn more than 15 pcs different remote controls.

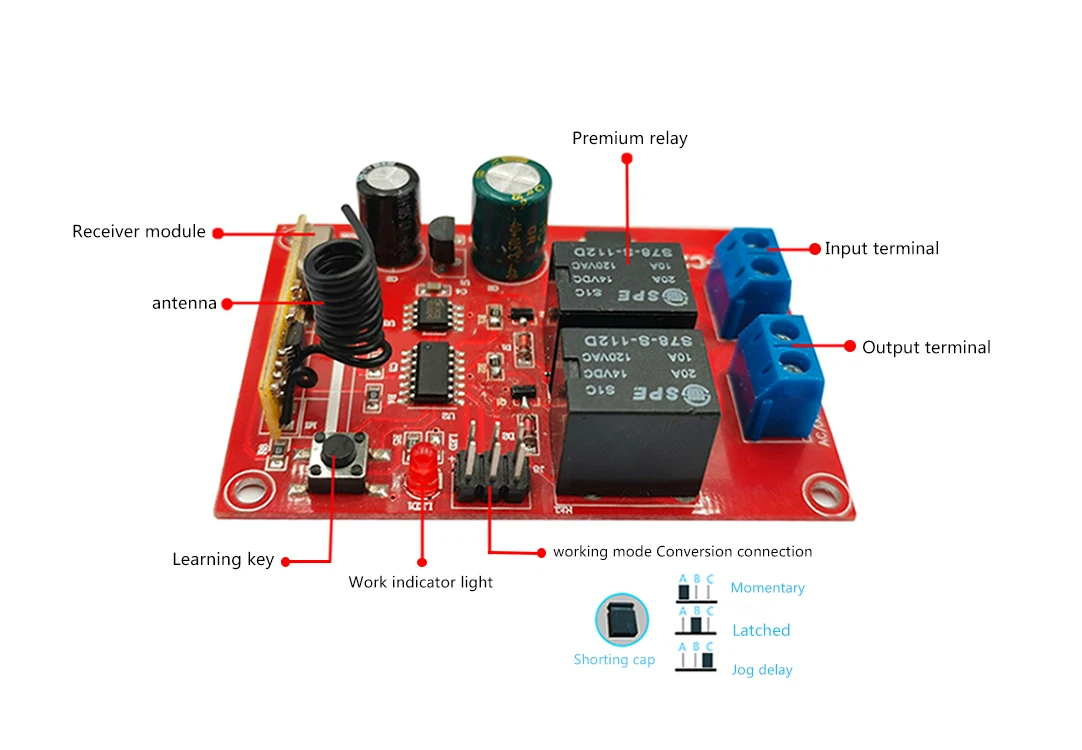

Working mode:
Learning mode matching method:
First complete the code clearing, short press the controller learning button once, the LED light is off, release the learning button and press the "△" button on the remote control, the LED light flashes 4 times and then always goes off, at this time the "△" key learning has been completed ; Short press the controller learning button 2 times, the LED light is off, release the learning button and press the "▽" button on the remote control, the LED light flashes 4 times and then always goes off, at this time the "▽" key learning has been completed; The learning button of the device is 3 times, and the LED light is off. Release the learning button and press the "□" button on the remote control. The LED light flashes 4 times and then always goes off. At this time, the "□" key learning has been completed.

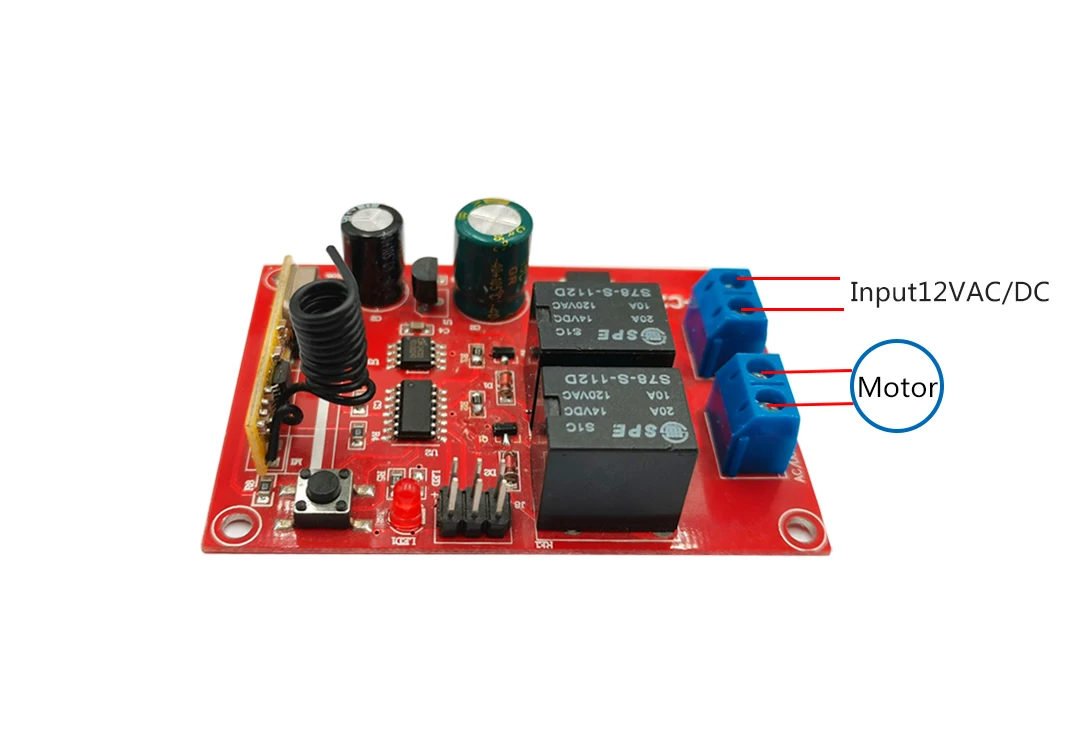

★Note: A. The remote control button is operated once, and the LED indicator flashes once          B. The controller can control the forward and reverse rotation of the AC (DC) motor
Clear Code:Power on, and then clear the code. Press and hold the learning button on the control panel for 5 seconds and wait for the LED to turn off from steady on, that is, all the remote controllers that learn to match codes are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.

Application Scope

Widely used for controlling electric doors/gates and windows ,garages door and all kinds of openers, gate barrier ,access control system, industrial control, car remote control, car alarm system, remote control switches , intelligent control, communication and security fields etc.
