New waterproof design receiver 85V~265VAC relay rf module wireless remote control switch AG-C113
    Publish time 2021-11-03 11:54
New waterproof design receiver 85V~265VAC relay rf module wireless remote control switch AG-C113
Product Description

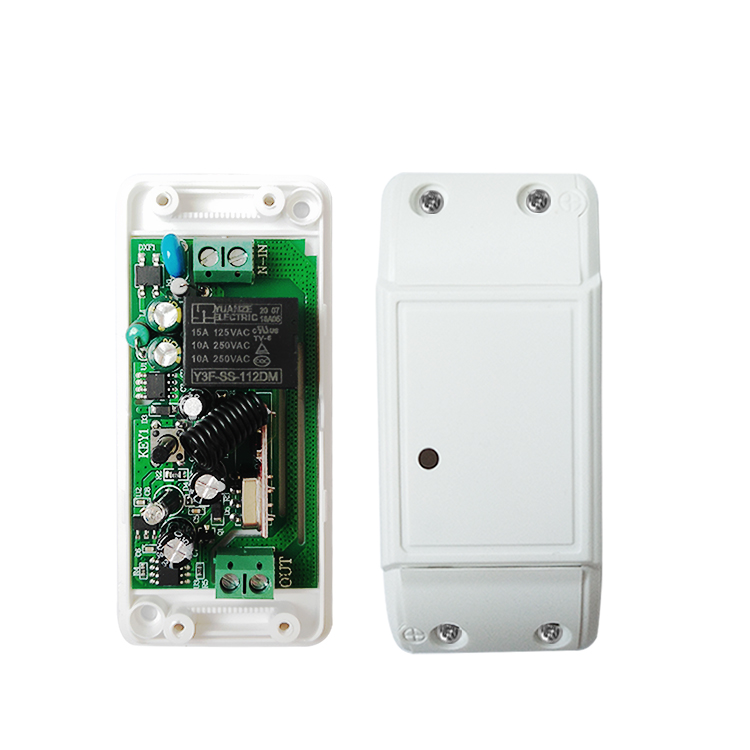

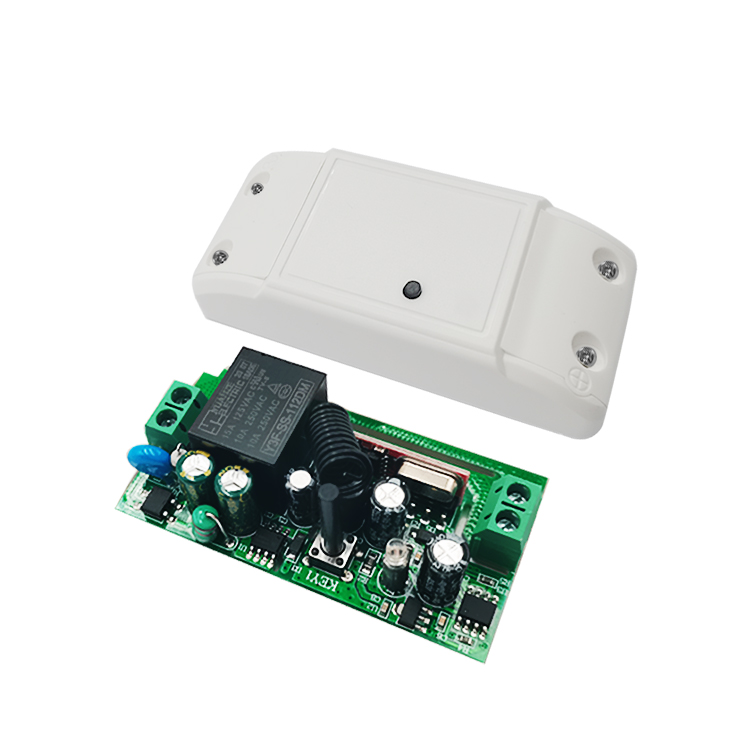

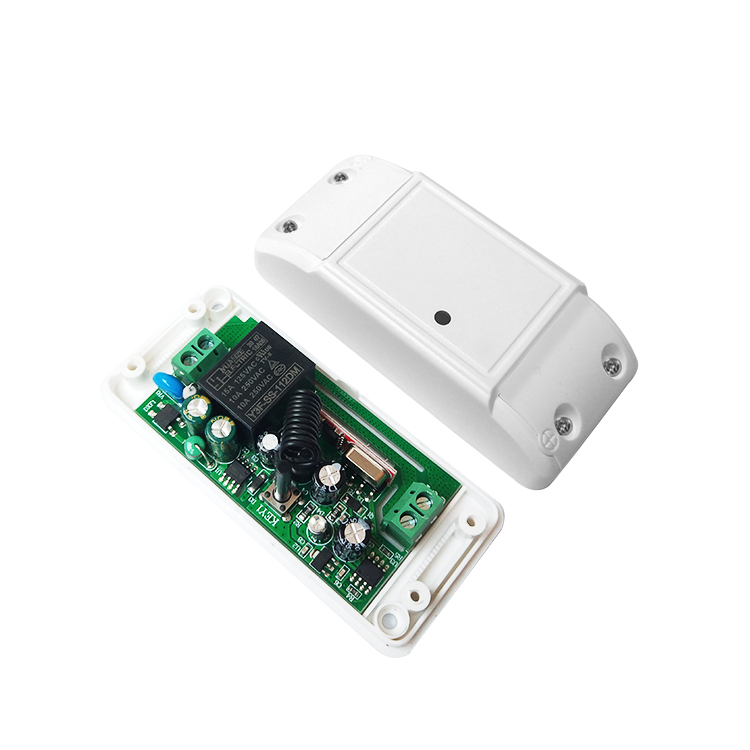

433MHZ New waterproof design receiver 85V~265VAC relay rf module wireless remote control switch AG-C113


This product adopts the latest high-end intelligent microprocessor control technology and is composed of high-end vital parts such as microprocessor chips, relays, and wireless receiving modules. It is used for garage door control, lighting control, remote curtains, access control systems and various motor control systems, etc. . Small size, easy to install, safe and reliable in use.It can learn 2260 2262 or 1527 chip with the different code wireless remote control.it can learn more than 10pcs different remote
controls.


Feature:

 【1 Channel for Wireless Control 】the remote switch is a learning switch, One/several transmitters can control one/several receivers simultaneously.They do not interfere with each other Out State: Momentary Latched Adjusted by the Jumper on the Receiver .
【Easy to Use 】We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it.
【Wide Range Voltage】This is a wide voltage 85-250v 2-Channel wireless remote control switch. AC 85V--250V, Output with electric，Equal to input voltage. Receiver With special limit switch and manual control button wiring port.
【Safe】Learn Code Control,Safe cecurity,the control code can add and remove.
【widely used 】in remote water pump switches, motor, Electric curtain machine, machine switches, sockets,lifting equipment, wireless lamps, window, entrance, Garage Doors，other home appliances control and so on.


Product name
Remote Control Switch
Model
AG-C113
Frequency
433MHZ/315MHZ
Encoding type
Learning code,Fixed code
Channel
1 Channels
Working voltage
85V~265VAC
Working mode
 interlock, self-lock
Receiving sensitivity
-100dBm
Working Current
≤10A
Board size
 88*40*23mm

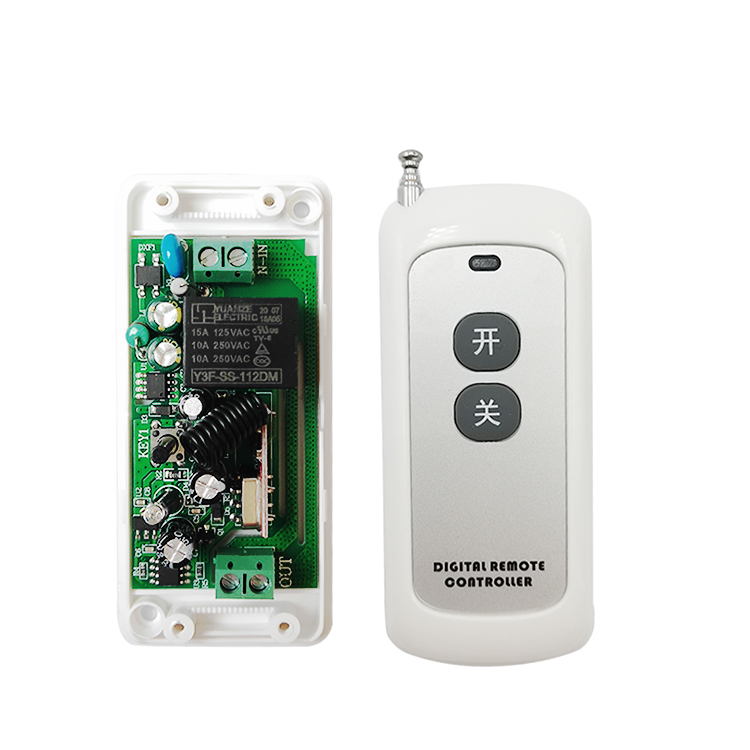

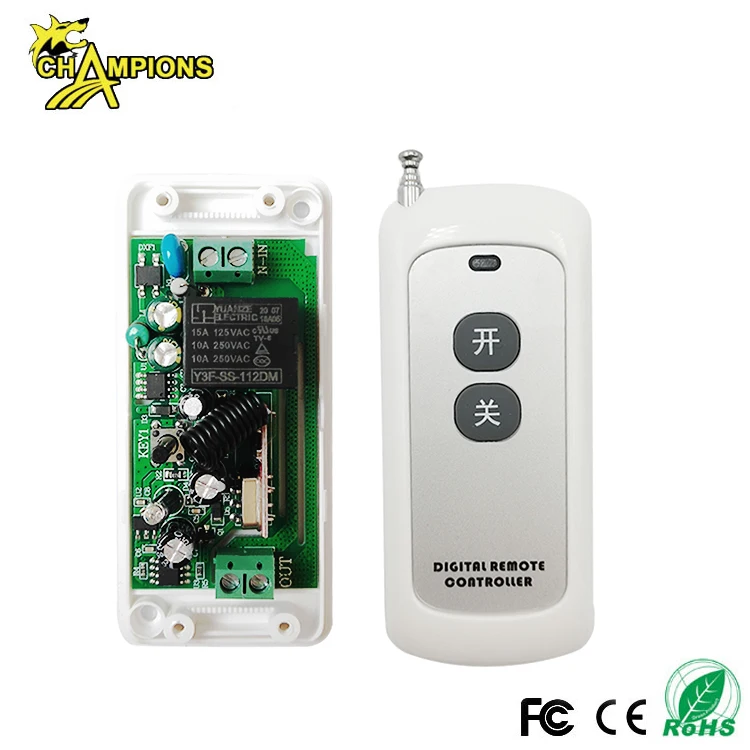

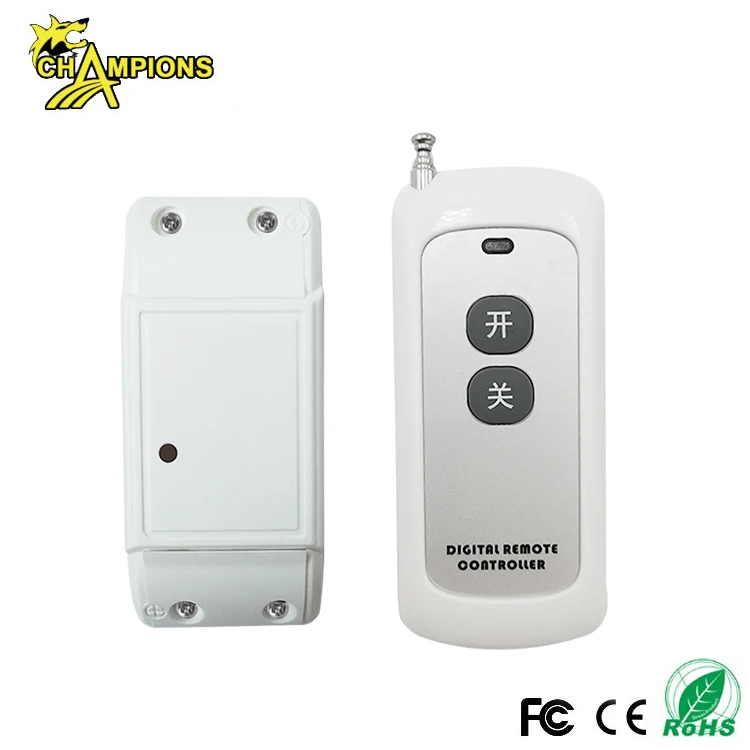

Product name
Wireless rf remote control
Model
AG501B
Frequency
433MHZ/315MHZ
Encoding Type
Learning code, Fixed code
Button
1/2 button optional
Material
Plastic & ABS
Battery
6V
Warranty
1 year
Certification
CE ROHS FCC
Distance
50-80 meter

This receiver can work with all of our company remote controls, a lot of models, you can choice other models you like. You may like : Click here

Learning Remote Way

Learning mode matching method:First complete the code clearing, then press and hold the learning button of the controller for 3 seconds, the LED light will light up, release the learning button and press one of the buttons on the remote control, the LED light flashes twice and then goes out, and then press another button, LED The light flashes twice and then goes out, indicating that the interlocking code is successfully matched.
★Note: A. The key value learned for the first time is used as the "on" function, and the key value learned for the second time is used as the "off" function. B. If the key value of the two learning is the same, it will be self-locking mode after the code is successfully configured. C. The relay is closed and the LED light is on; the relay is disconnected and the LED light is off.
4. Manual function (Directly use controller):  Short press the button on the controller to execute the manual "on", and then short press the button to execute the manual "off" function. ★Note: The manual function and the remote control function are interrelated and controlled.
Clear Code:Power on, and then clear the code. Press and hold the learning button on the control panel for 6 seconds, the LED light turns from a steady state and then flashes 4 times and then goes out, that is, all the remote controllers that have learned the code are automatically cleared. After clearing, the remote control that has previously learned to code will no longer be controlled.
